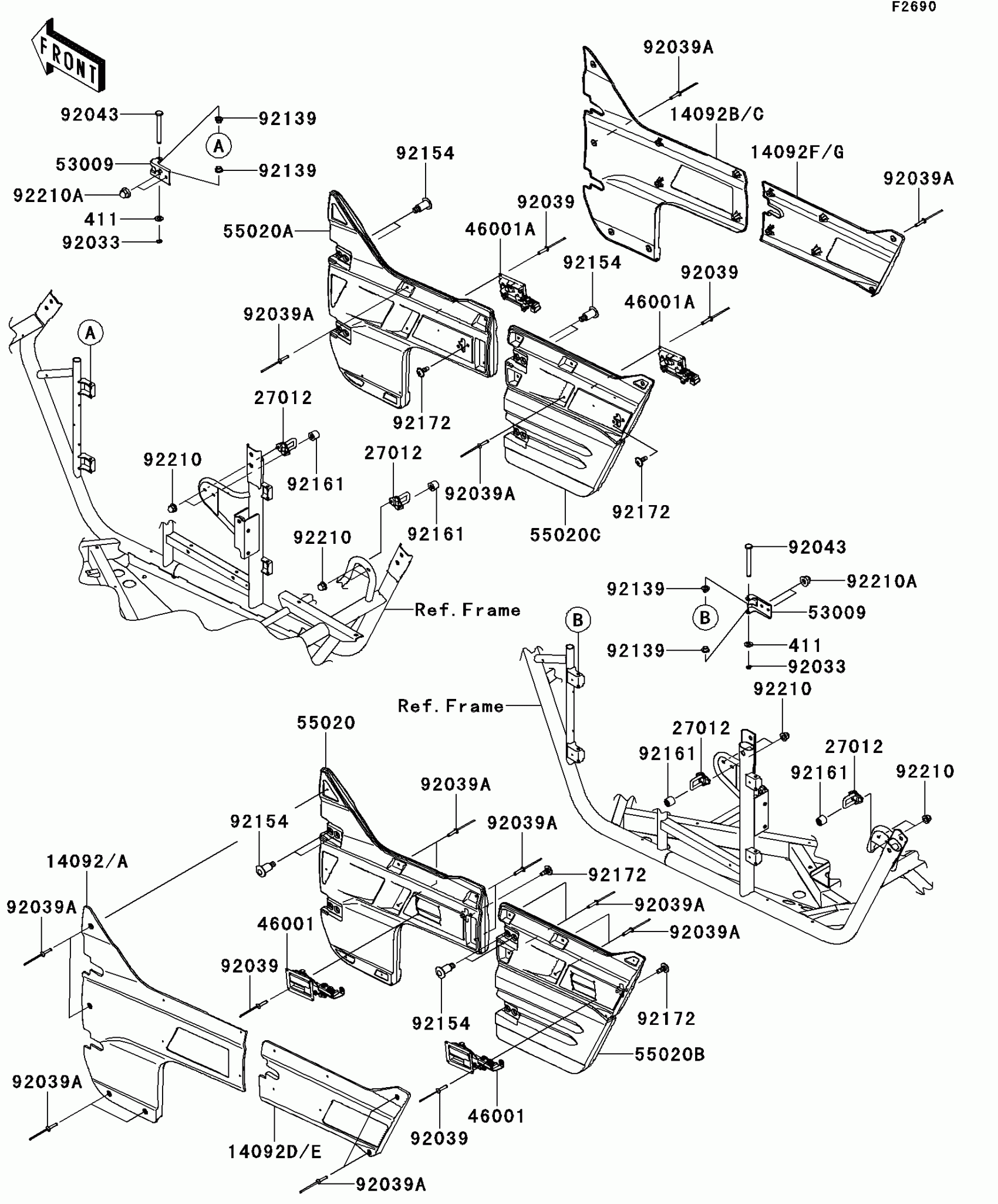

Kawasaki TERYX4™ 750 4x4 EPS Door Diagram
#
Description
Price
14092
COVER,SIDE GUARD,FR,LH,B.WHITE
14092-0748-266
$225.49
14092B
COVER,SIDE GUARD,FR,RH,B.WHITE
14092-0749-266
$225.49
14092D
COVER,SIDE GUARD,RR,LH,B.WHITE
14092-0751-266
$149.92
14092F
COVER,SIDE GUARD,RR,RH,B.WHITE
14092-0752-266
$149.92
27012
HOOK
27012-0705
$7.52
411
WASHER-PLAIN,6MM
411AB0600
$1.18
46001
HANDLE-ASSY,SIDE GUARD,LH
46001-0556
$76.22
46001A
HANDLE-ASSY,SIDE GUARD,RH
46001-0557
$76.22
53009
HINGE
53009-0303
$6.27
55020
GUARD,SIDE,FR,LH
55020-0737
$133.43
55020A
GUARD,SIDE,FR,RH
55020-0738
$133.43
55020B
GUARD,SIDE,RR,LH
55020-0739
$133.43
55020C
GUARD,SIDE,RR,RH
55020-0740
$133.43
92033
RING-SNAP
92033-0719
$0.84
92039
RIVET,4.0X17.5
92039-0703
$0.99
92039A
RIVET,4.9X19.8
92039-0704
$1.86
92043
PIN,6X56
92043-0743
$4.10
92139
BUSHING,6X8X6
92139-0709
$2.99
92154
BOLT,SOCKET,8X30
92154-0712
$6.05
92161
DAMPER,9X28X24.3
92161-1456
$3.71
92172
SCREW,6X16
92172-0711
$3.02
92210
NUT,CAP,6MM
92210-0003
$0.64
92210A
NUT,CAP,8MM
92210-0488
$3.29
