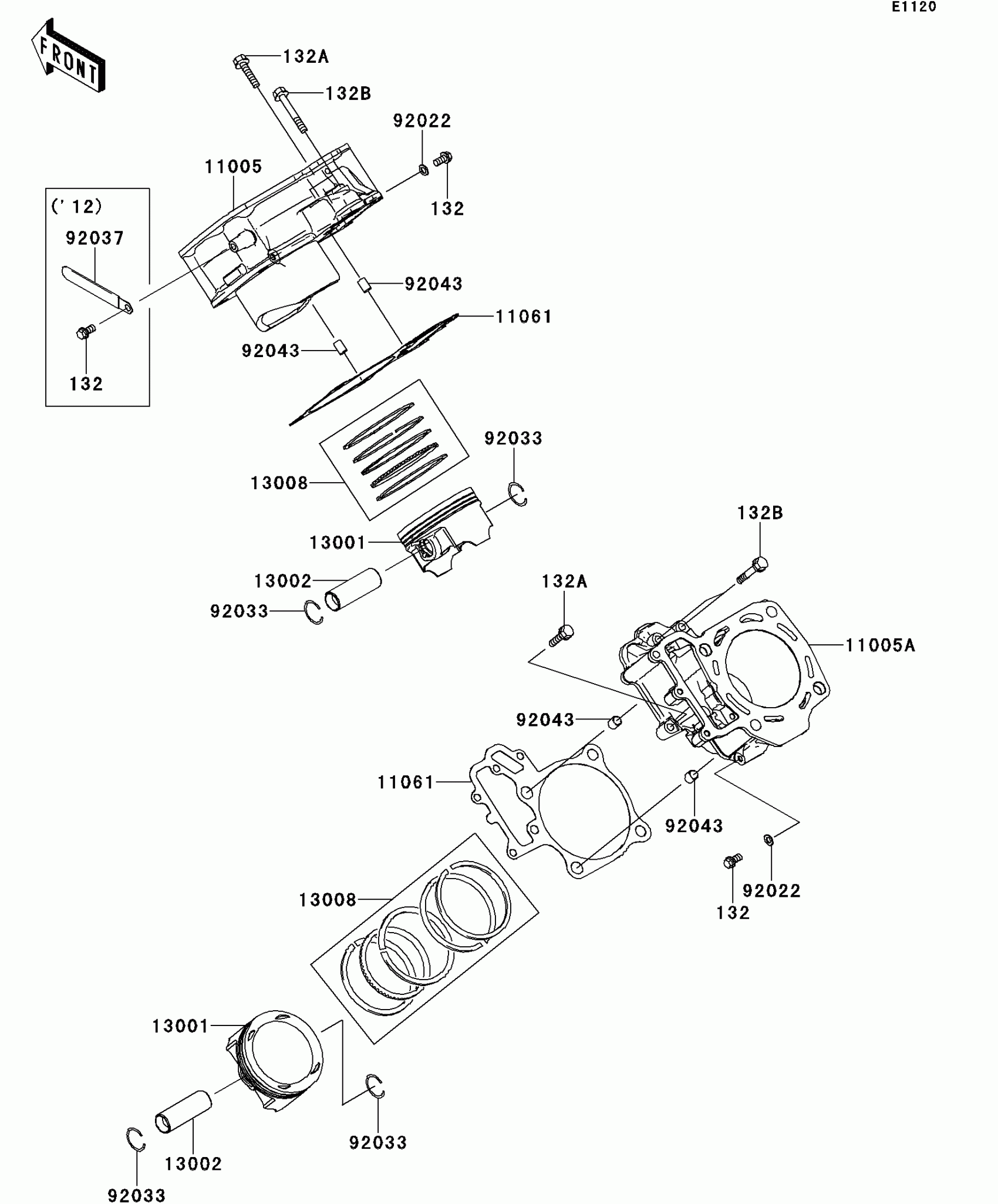

Kawasaki TERYX4™ 750 4x4 EPS Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,FR

11005-0576

$589.07

11005A

CYLINDER-ENGINE,RR

11005-0577

$606.00

11061

GASKET,CYLINDER BASE

11061-0730

$21.89

13001

PISTON-ENGINE

13001-0718

$130.13

13002

PIN-PISTON

13002-0711

$41.41

13008

RING-SET-PISTON

13008-0042

$57.43

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$2.06

132A

BOLT-FLANGED-SMALL,6X30

132BD0630

$3.67

132B

BOLT-FLANGED-SMALL,6X40

132BD0640

$5.25

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP

92033-1207

$2.38

92043

PIN,10.1X12X14

92043-4009

$6.22
