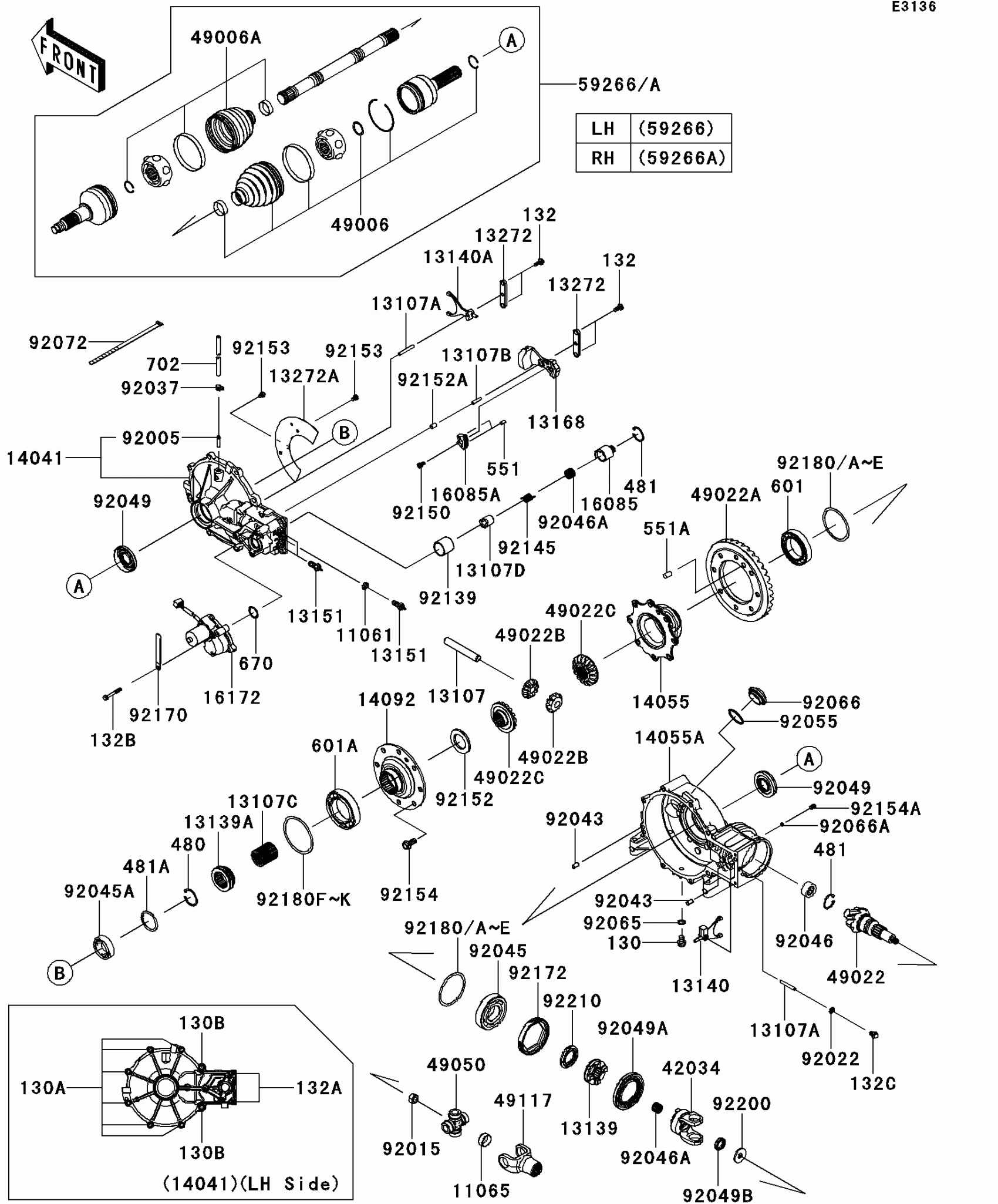

Kawasaki TERYX4™ 750 4x4 Drive Shaft-Front(ACF) Diagram

#

Description
Price

11061

GASKET,10.5X16X3

11061-0805

$2.64

11065

CAP

11065-0073

$5.29

13107

SHAFT,CROSS

13107-0245

$30.45

13107A

SHAFT,6X43.7

13107-0246

$9.87

13107B

SHAFT,6X25.1

13107-0729

$9.31

13107C

SHAFT,29X38X43.5

13107-0746

$117.06

13107D

SHAFT

13107-0747

$98.88

13139

SHIFTER

13139-0017

$77.69

13139A

SHIFTER,DIFFERENTIAL LOCK

13139-0627

$76.19

13140

FORK-SHIFT

13140-0069

$36.14

13140A

FORK-SHIFT

13140-0070

$37.89

13151

SWITCH-COMP

13151-1086

$38.19

13168

LEVER

13168-0731

$94.84

13272

PLATE

13272-0985

$14.62

13272A

PLATE

13272-0986

$6.00

14041

COVER-COMP,LH

14041-0554

Unavailable

14055

CASE-GEAR,CROSS

14055-0052

$237.40

14055A

CASE-GEAR,RH

14055-0053

$232.92

14092

COVER,CROSS CASE

14092-0269

$187.35

16085

GEAR,13T

16085-0604

$122.36

16085A

GEAR,65T

16085-0605

$116.83

16172

ACTUATOR

16172-0025

Unavailable

42034

COUPLING

42034-0713

Unavailable

49006

BOOT,INSIDE

49006-0559

Unavailable

49006A

BOOT,OUTSIDE

49006-0563

$94.99

49022

GEAR-BEVEL,8T

49022-0066

$444.95

49022A

GEAR-BEVEL,35T

49022-0067

$432.87

49022B

GEAR-BEVEL,10T

49022-0068

$95.95

49022C

GEAR-BEVEL,16T

49022-0069

$162.49

49050

SPIDER

49050-0023

Unavailable

49117

YOKE

49117-0047

$101.83

59266

JOINT-BALL,LH

59266-0707

Unavailable

59266A

JOINT-BALL,RH

59266-0708

Unavailable

92005

FITTING

92005-1142

$7.60

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92022

WASHER,8.2X14X1.0

92022-1488

$4.92

92037

CLAMP,TUBE

92037-1461

$3.88

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,6307A11CG17A

92045-0167

$41.55

92045A

BEARING-BALL,60/28

92045-1176

$28.54

92046

BEARING-NEEDLE,AJ501907

92046-0025

$35.70

130

BOLT-FLANGED,10X14

130BA1014

$4.76

130A

BOLT-FLANGED,8X25

130CA0825

$1.46

130B

BOLT-FLANGED,10X30

130CA1030

$2.32

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

$4.45

132C

BOLT-FLANGED-SMALL,8X10

132BA0810

$4.32

480

CIRCLIP, 38MM

480J3800

$5.44

92046A

BEARING-NEEDLE

92046-1234

$23.10

92049

SEAL-OIL,28X60X7

92049-0089

$16.97

92049A

SEAL-OIL,55X89X9

92049-0166

$18.77

92049B

SEAL-OIL,20X28X5

92049-0736

$8.21

92055

RING-O,35.8MM

92055-1281

$7.34

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,36X7.5

92066-0744

$8.22

92066A

PLUG,6.2X3

92066-1272

$3.18

92072

BAND,L=218

92072-032

$5.00

92139

BUSHING,29X33X30

92139-0780

$24.93

92145

SPRING

92145-0907

$3.97

92150

BOLT,SOCKET,6X10

92150-1650

$4.31

92152

COLLAR,35X57.5X4.7

92152-1543

$32.34

92152A

COLLAR,6X8X12.1

92152-1600

$15.62

92153

BOLT,FLANGED-SMALL,6X8

92153-0964

$2.24

92154

BOLT,FLANGED,10X23

92154-0550

$3.74

92154A

BOLT,SET,SOCKET,8X12

92154-0876

$3.97

92170

CLAMP

92170-1925

$2.40

92172

SCREW,SET,85X12.5

92172-0509

Unavailable

92180

SHIM,70X80X0.15

92180-0301

Unavailable

92180A

SHIM,70X80X0.2

92180-0302

Unavailable

92180B

SHIM,70X80X0.5

92180-0303

Unavailable

92180C

SHIM,70X80X0.8

92180-0304

Unavailable

92180D

SHIM,70X80X1.0

92180-0305

Unavailable

92180E

SHIM,70X80X1.2

92180-0306

Unavailable

92180F

SHIM,80X90X0.15

92180-0307

Unavailable

92180G

SHIM,80X90X0.2

92180-0308

Unavailable

92180H

SHIM,80X90X0.5

92180-0309

Unavailable

92180I

SHIM,80X90X0.8

92180-0310

Unavailable

92180J

SHIM,80X90X1.0

92180-0311

Unavailable

92180K

SHIM,80X90X1.2

92180-0312

Unavailable

92200

WASHER,12X34X2.5

92200-0599

$3.97

92210

NUT,35MM

92210-0724

$125.18

481

CIRCLIP-TYPE-C,32MM

481J3200

$2.68

481A

CIRCLIP-TYPE-C,52MM

481J5200

$4.96

551

PIN-DOWEL,4X10

551A0410

$0.65

551A

PIN-DOWEL

551A1016

$2.96

601

BEARING-BALL

601B6010

$43.73

601A

BEARING-BALL

601B6011

$54.98

670

O RING

670D3022

$2.80

702

TUBE-RUBBER,5X8X1375

702A051375

$14.29
