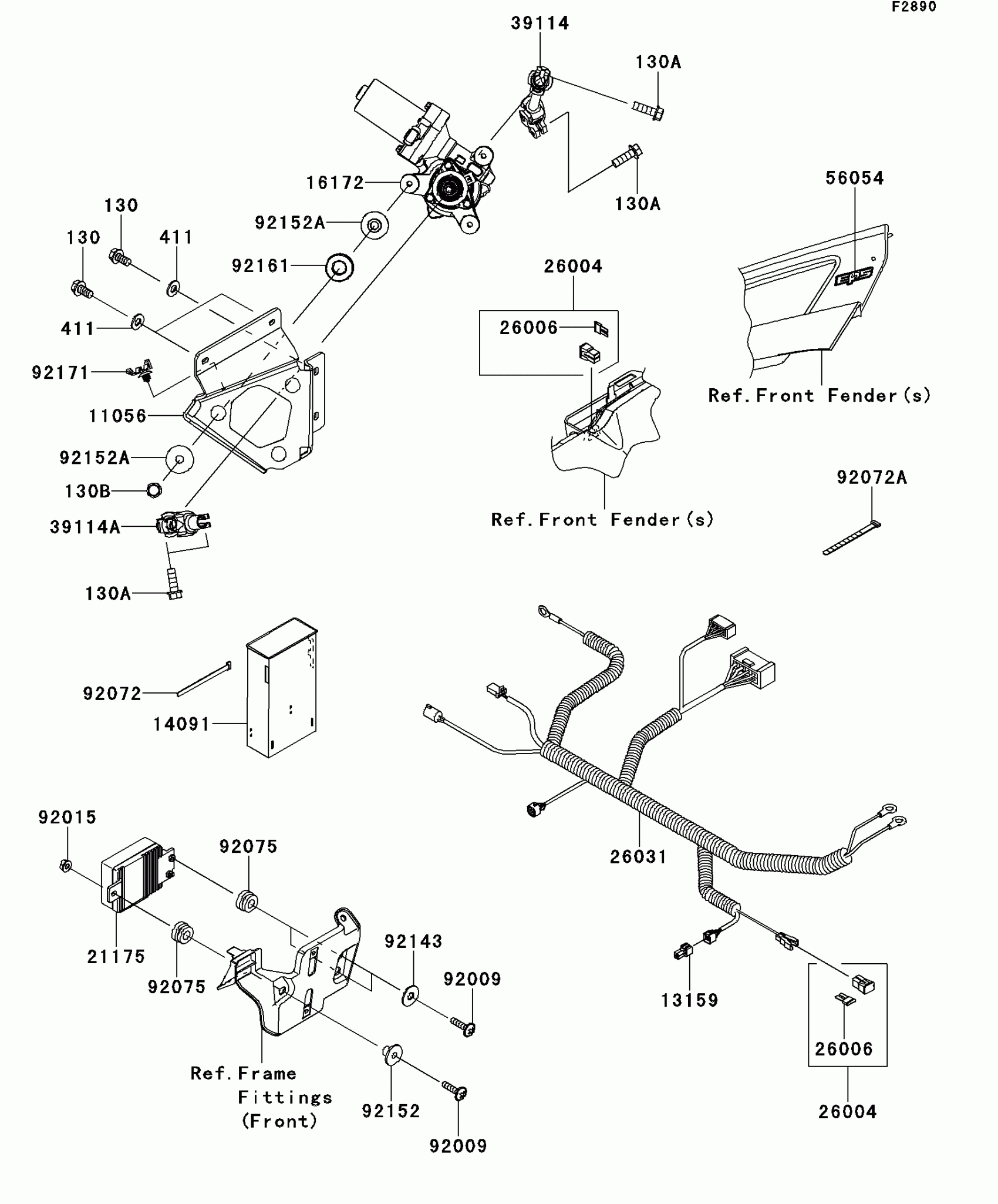

Kawasaki TERYX4™ 750 4x4 (Canadian) Optional Parts(EPS) Diagram

Description

Price

11056

BRACKET,EPS ACTUATOR

11056-1416

$96.82

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

130B

BOLT-FLANGED,8X45

130CA0845

$1.22

13159

CONNECTOR

13159-0014

$8.09

14091

COVER,ECU

14091-7560

$46.35

16172

ACTUATOR,EPS

16172-0557

$1,812.19

21175

CONTROL UNIT-ELECTRONIC

21175-0809

$861.42

26004

FUSE-ASSY,40A

26004-1093

$4.11

26006

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$5.24

26031

HARNESS

26031-1180

$236.37

39114

SHAFT-COMP-STRG

39114-0306

Unavailable

39114A

SHAFT-COMP-STRG

39114-0308

Unavailable

411

WASHER-PLAIN,8MM

411AA0800

$0.96

56054

MARK,FR FENDER,EPS

56054-1201

$8.96

92009

SCREW,6X25

92009-1465

$3.92

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=188

92072-1239

$1.73

92075

DAMPER,RUBBER

92075-1123

$5.00

92143

COLLAR,L=6.5

92143-1025

$6.22

92152

COLLAR,6.5X10X13.3

92152-0957

$9.73

92152A

COLLAR

92152-7513

$5.04

92161

DAMPER,ACTUATOR

92161-7517

$3.35

92171

CLAMP

92171-0453

$3.54
