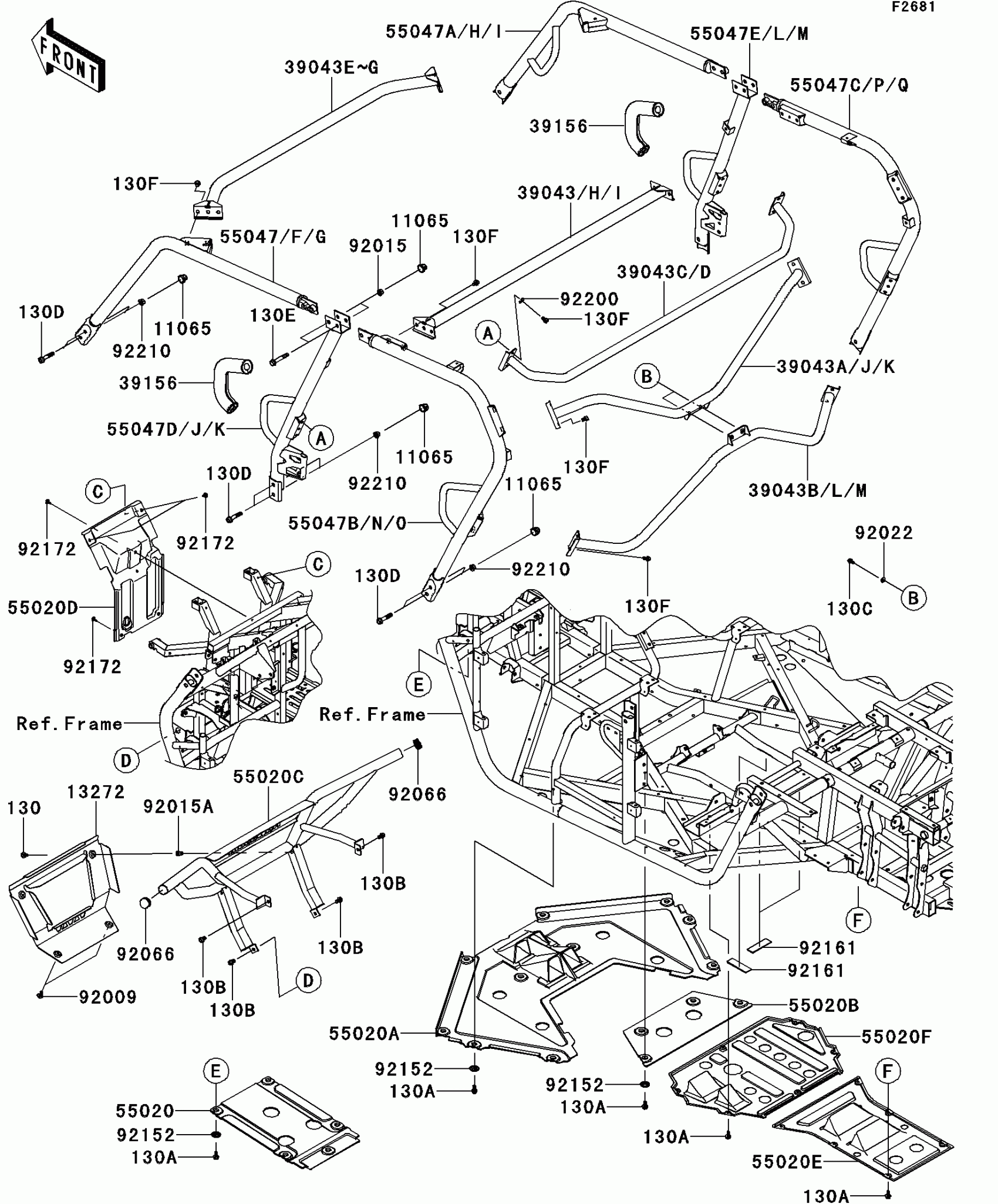

Kawasaki TERYX4™ 750 4x4 (Canadian) Guards/Cab Frame Diagram

#

Description
Price

11065

CAP

11065-0751

$1.69

13272

PLATE,T.BLACK

13272-0994-388

$58.14

39043C

CROSSMEMBER-COMP,CNT,LWR,RED

39043-0325-16I

$115.61

39043F

CROSSMEMBER-COMP,FR,UPP,RED

39043-0328-16I

Unavailable

39043G

CROSSMEMBER-COMP,FR,UPP,T.BLK

39043-0328-388

Unavailable

39043H

CROSSMEMBER-COMP,CNT,UPP,RED

39043-0329-16I

Unavailable

39043I

CROSSMEMBER-COMP,CNT,UPP,T.BLK

39043-0329-388

Unavailable

39043J

CROSSMEMBER-COMP,RR,UPP,RED

39043-0330-16I

Unavailable

39043K

CROSSMEMBER-COMP,RR,UPP,T.BLK

39043-0330-388

Unavailable

39043L

CROSSMEMBER-COMP,RR,LWR,RED

39043-0331-16I

Unavailable

39043M

CROSSMEMBER-COMP,RR,LWR,T.BLK

39043-0331-388

Unavailable

39156

PAD

39156-0764

$71.77

55020

GUARD,SKID,FR

55020-0723

$34.28

55020A

GUARD,SKID,FR MIDDLE

55020-0724

Unavailable

55020B

GUARD,SKID,CNT,FR

55020-0726

Unavailable

55020C

GUARD,FRONT,T.BLACK

55020-0727-388

$239.05

55020D

GUARD,FR FRAME

55020-0741

$30.31

55020E

GUARD,SKID,RR

55020-0812

$59.85

55020F

GUARD,SKID,CNT

55020-0815

$114.43

55047F

BAR-COMP,A-PILLAR,LH,T.S.RED

55047-0334-16I

Unavailable

55047G

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0334-388

Unavailable

55047H

BAR-COMP,A-PILLAR,RH,T.S.RED

55047-0335-16I

Unavailable

130

BOLT-FLANGED,6X14

130AB0614

$2.49

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

130B

BOLT-FLANGED,10X16

130BA1016

$4.76

130C

BOLT-FLANGED,8X16

130BB0816

$1.71

130D

BOLT-FLANGED,12X60

130BB1260

$8.21

130E

BOLT-FLANGED,12X75

130BB1275

$9.31

130F

BOLT-FLANGED,10X14

130CB1014

$3.39

55047I

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0335-388

Unavailable

55047J

BAR-COMP,B-PILLAR,LH,T.S.RED

55047-0336-16I

Unavailable

55047K

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0336-388

Unavailable

55047L

BAR-COMP,B-PILLAR,RH,T.S.RED

55047-0337-16I

Unavailable

55047M

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0337-388

Unavailable

55047N

BAR-COMP,C-PILLAR,LH,T.S.RED

55047-0338-16I

Unavailable

55047O

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0338-388

Unavailable

55047P

BAR-COMP,C-PILLAR,RH,T.S.RED

55047-0339-16I

$126.28

55047Q

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0339-388

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,POP,6MM,L=15

92015-1791

$4.69

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92066

PLUG

92066-7503

$1.75

92152

COLLAR

92152-0784

$2.12

92161

DAMPER,30X100X3.2

92161-1457

$2.93

92172

SCREW,6X16

92172-0711

$3.02

92200

WASHER,10.2X23X2.5

92200-7506

$3.90

92210

NUT,12MM

92210-0603

$8.98
