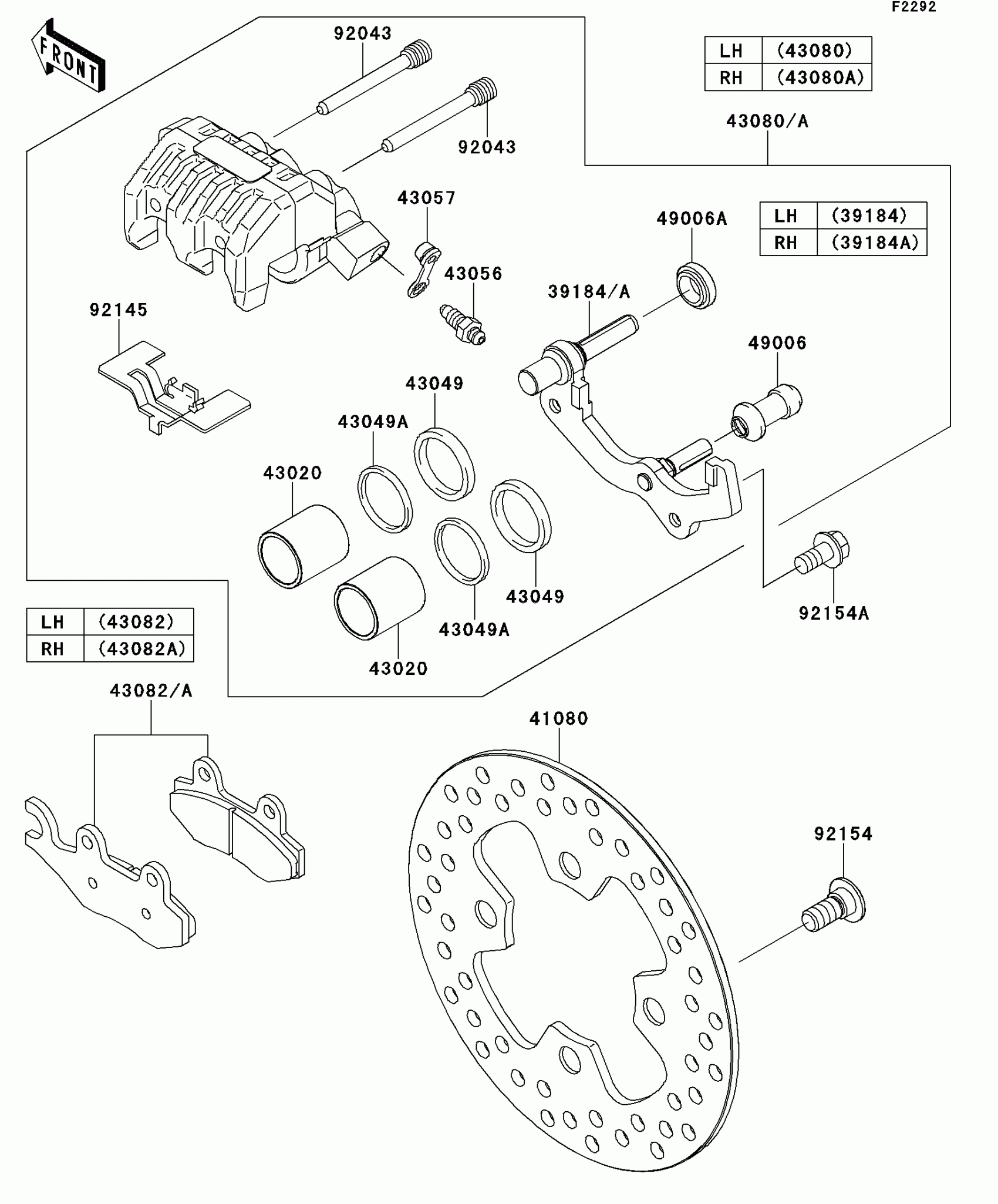

Kawasaki TERYX4™ 750 4x4 (Canadian) Front Brake Diagram

Description

Price

39184

BRACKET-ASSY,CALIPER,LH

39184-0024

$59.03

39184A

BRACKET-ASSY,CALIPER,RH

39184-0025

$59.03

41080

DISC,FR,200MM

41080-0558

$51.74

43020

PISTON-COMP-BRAKE

43020-0054

$43.17

43049

PACKING

43049-0556

$17.57

43049A

PACKING

43049-0557

$9.97

43056

BREATHER-BRAKE

43056-0055

$12.73

43057

CAP-BREATHER

43057-0552

$5.01

43080

CALIPER-SUB-ASSY,LH

43080-0128

$331.87

43080A

CALIPER-SUB-ASSY,RH

43080-0129

$331.87

43082

PAD-ASSY-BRAKE,LH

43082-0126

$71.24

43082A

PAD-ASSY-BRAKE,RH

43082-0127

$71.24

49006

BOOT

49006-0565

$10.79

49006A

BOOT

49006-0566

$5.24

92043

92043-0184

$8.42

92145

SPRING

92145-0705

$7.14

92154

BOLT,SOCKET,10X23

92154-0713

$4.10

92154A

BOLT,FLANGED,8X16

92154-1005

$5.38

Kawasaki TERYX4™ 750 4x4 (Canadian) Front Brake Diagram

BRACKET-ASSY,CALIPER,LH

BRACKET-ASSY,CALIPER,RH

DISC,FR,200MM

PISTON-COMP-BRAKE

PACKING

PACKING

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,LH

CALIPER-SUB-ASSY,RH

PAD-ASSY-BRAKE,LH

PAD-ASSY-BRAKE,RH

BOOT

BOOT

PIN

SPRING

BOLT,SOCKET,10X23

BOLT,FLANGED,8X16
