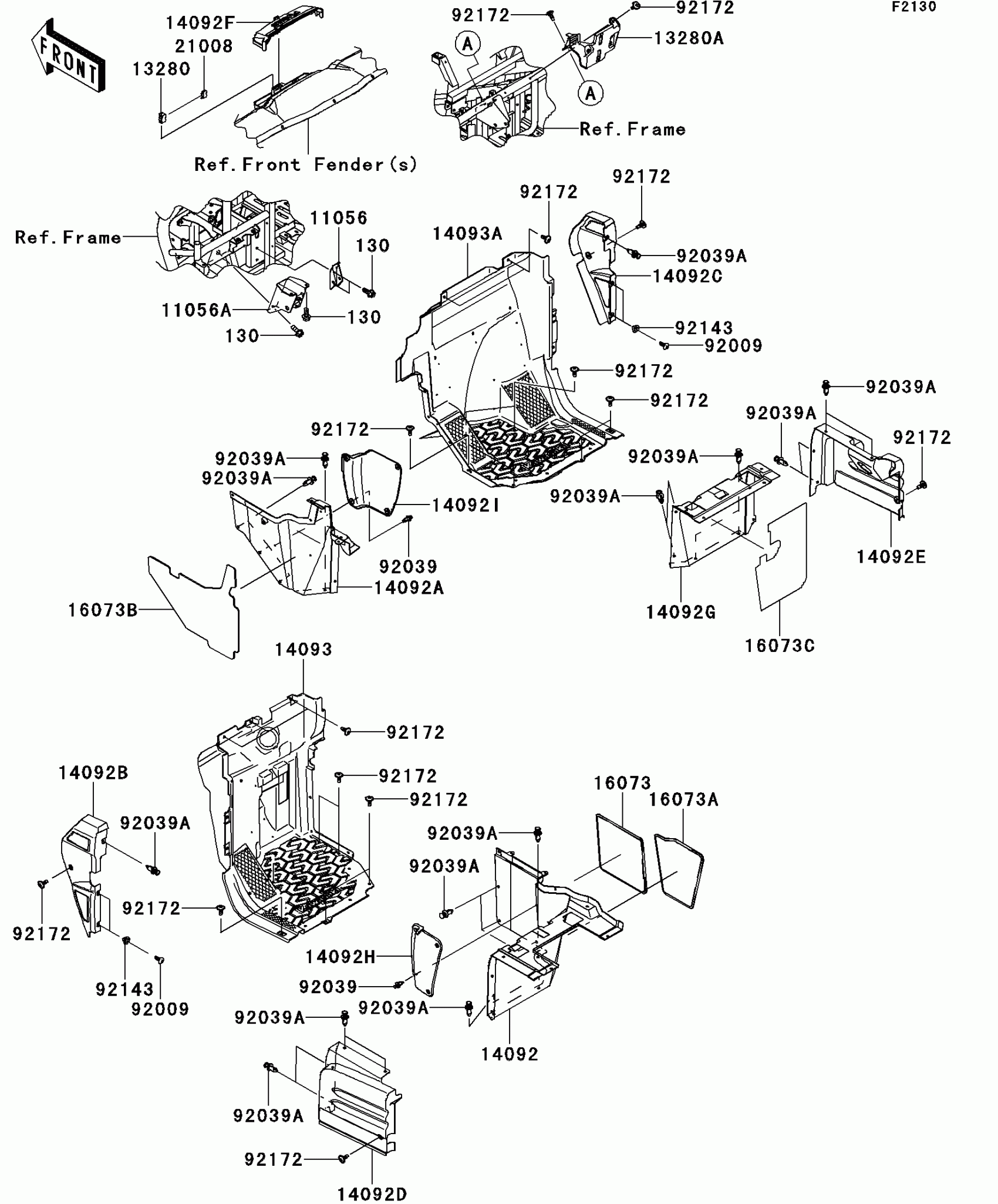

Kawasaki TERYX4™ 750 4x4 (Canadian) Frame Fittings(Front) Diagram

Description

Price

11056

BRACKET,THROTTLE PEDAL

11056-0734

$12.01

11056A

BRACKET,BRAKE PEDAL

11056-1431

$57.94

130

BOLT-FLANGED,8X18

130BA0818

$2.55

13280

HOLDER,BREAKER

13280-0082

$5.60

13280A

HOLDER

13280-0719

$7.57

14092

COVER,FR SEAT,LH

14092-0712

$46.51

14092A

COVER,FR SEAT,RH,CNT

14092-0713

Unavailable

14092B

COVER,SIDE GUARD,LH

14092-0716

$11.44

14092C

COVER,SIDE GUARD,RH

14092-0717

$11.44

14092D

COVER,SEAT SIDE,LH

14092-0720

$16.06

14092E

COVER,SEAT SIDE,RH

14092-0721

$16.06

14092F

COVER,FUSE BOX

14092-0724

$6.73

14092G

COVER,FR SEAT,RH

14092-0757

$22.14

14092H

COVER,PAD,LH

14092-0909

$7.94

14092I

COVER,PAD,RH

14092-0910

$7.94

14093

COVER,FR FLOOR,LH

14093-5137

$91.90

14093A

COVER,FR FLOOR,RH

14093-5138

$91.90

16073

INSULATOR

16073-0715

$60.25

16073A

INSULATOR

16073-0716

$60.25

16073B

INSULATOR

16073-0738

$118.47

16073C

INSULATOR

16073-0743

$11.40

21008

BREAKER

21008-0556

$29.63

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92039

RIVET

92039-0051

$4.65

92039A

RIVET

92039-1229

$1.19

92143

COLLAR

92143-1057

$5.00

92172

SCREW,6X16

92172-0711

$3.02
