Engine Cover(s)

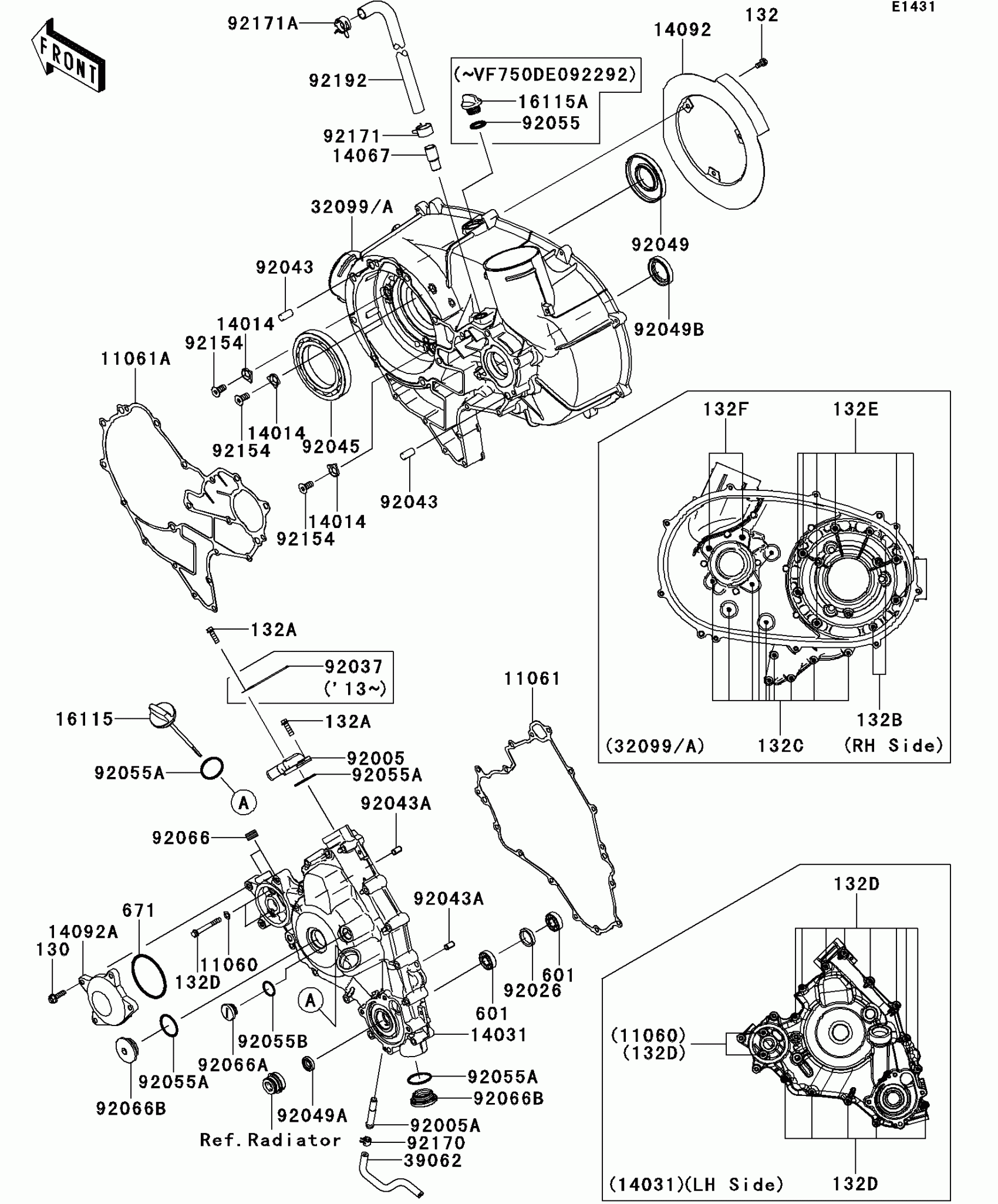

Kawasaki TERYX4™ 750 4x4 (Canadian) Engine Cover(s) Diagram
#
11060
GASKET,6.2X12X0.3
11060-1994
$2.39
11061
GASKET,GENERATOR COVER
11061-0728
$31.96
11061A
GASKET,CVT CASE
11061-0729
$45.22
130
BOLT-FLANGED,6X22
130CD0622
$0.88
132
BOLT-FLANGED-SMALL,6X12
132BD0612
$2.06
14014
PLATE-POSITION
14014-0556
$4.41
14031
COVER-GENERATOR
14031-0552
$196.73
14067
FITTING,BREATHER
14067-006
$21.09
14092
COVER
14092-0708
$24.93
14092A
COVER,OIL COOLER
14092-0877
$44.98
16115
CAP-OIL FILLER
16115-0705
$41.04
32099A
CASE,CVT
32099-0726
Unavailable
39062
HOSE-COOLING,DRAIN
39062-0598
$4.24
92005
FITTING
92005-0712
$23.01
92005A
FITTING
92005-1264
$7.56
92026
SPACER,22X28X5
92026-0711
$14.32
92037
CLAMP
92037-1993
$5.52
92043
PIN,10X20
92043-0142
$3.90
92043A
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,16014CS45
92045-0709
$86.33
92049
SEAL-OIL,35X77X9
92049-0713
$17.91
92049A
SEAL-OIL,SC 12X22X5
92049-1228
$9.28
92049B
SEAL-OIL,HTC 30X45X8
92049-1575
$16.41
92055A
RING-O,31.2X2.4
92055-0724
$3.65
92055B
RING-O,20X2
92055-1146
$8.58
92066
PLUG,PT3/8X10
92066-0003
$3.31
92066A
PLUG,COVER
92066-0011
$15.94
92066B
PLUG
92066-0712
$13.06
92154
BOLT,FLAT,8X13.6
92154-0978
$4.41
92170
CLAMP
92170-1493
$5.00
92171
CLAMP
92171-0329
$8.89
92171A
CLAMP
92171-1277
$2.75
92192
TUBE,BREATHER
92192-0945
$14.63
132A
BOLT-FLANGED-SMALL,6X20
132BD0620
$4.12
132B
BOLT-FLANGED-SMALL,6X30
132BD0630
$3.67
132C
BOLT-FLANGED-SMALL,6X45
132BD0645
$4.69
132D
BOLT-FLANGED-SMALL,6X50
132BD0650
$4.76
132E
BOLT-FLANGED-SMALL,8X35
132BD0835
$4.45
132F
BOLT-FLANGED-SMALL,8X50
132BD0850
$3.02
601
BEARING-BALL
601A6001
$11.71
671
O RING,65MM
671B2565
$8.86
