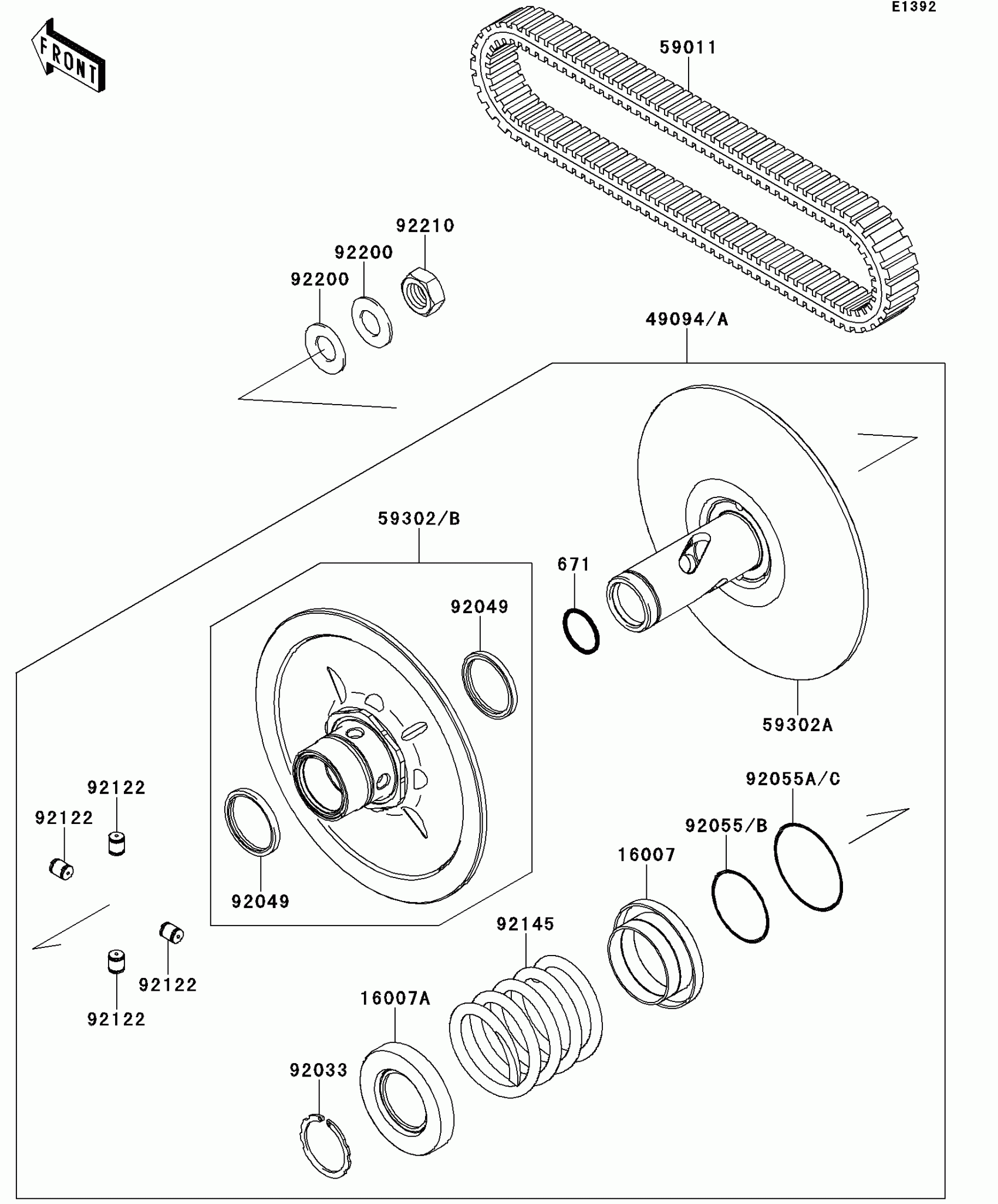

Kawasaki TERYX4™ 750 4x4 (Canadian) Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0049

$12.92

16007A

SEAT-SPRING,FIXED

16007-0050

$11.20

49094A

CONVERTER-ASSY-DRIVEN

49094-0085

$751.68

59011

BELT,CVT

59011-0031

$148.98

59302

SHEAVE-COMP,MOVABLE

59302-0040

$361.27

59302A

SHEAVE-COMP,FIXED

59302-0075

$361.24

671

O RING

671D2530

$4.39

92033

RING-SNAP

92033-1317

$4.61

92049

SEAL-OIL

92049-1528

$12.45

92055B

RING-O,46.4X3.1

92055-0752

$3.36

92055C

RING-O,59.5X2.4

92055-0753

$3.13

92122

ROLLER

92122-0043

$10.25

92145

SPRING

92145-0822

$54.71

92200

WASHER

92200-1505

$3.81

92210

NUT,18MM

92210-1367

$6.38
