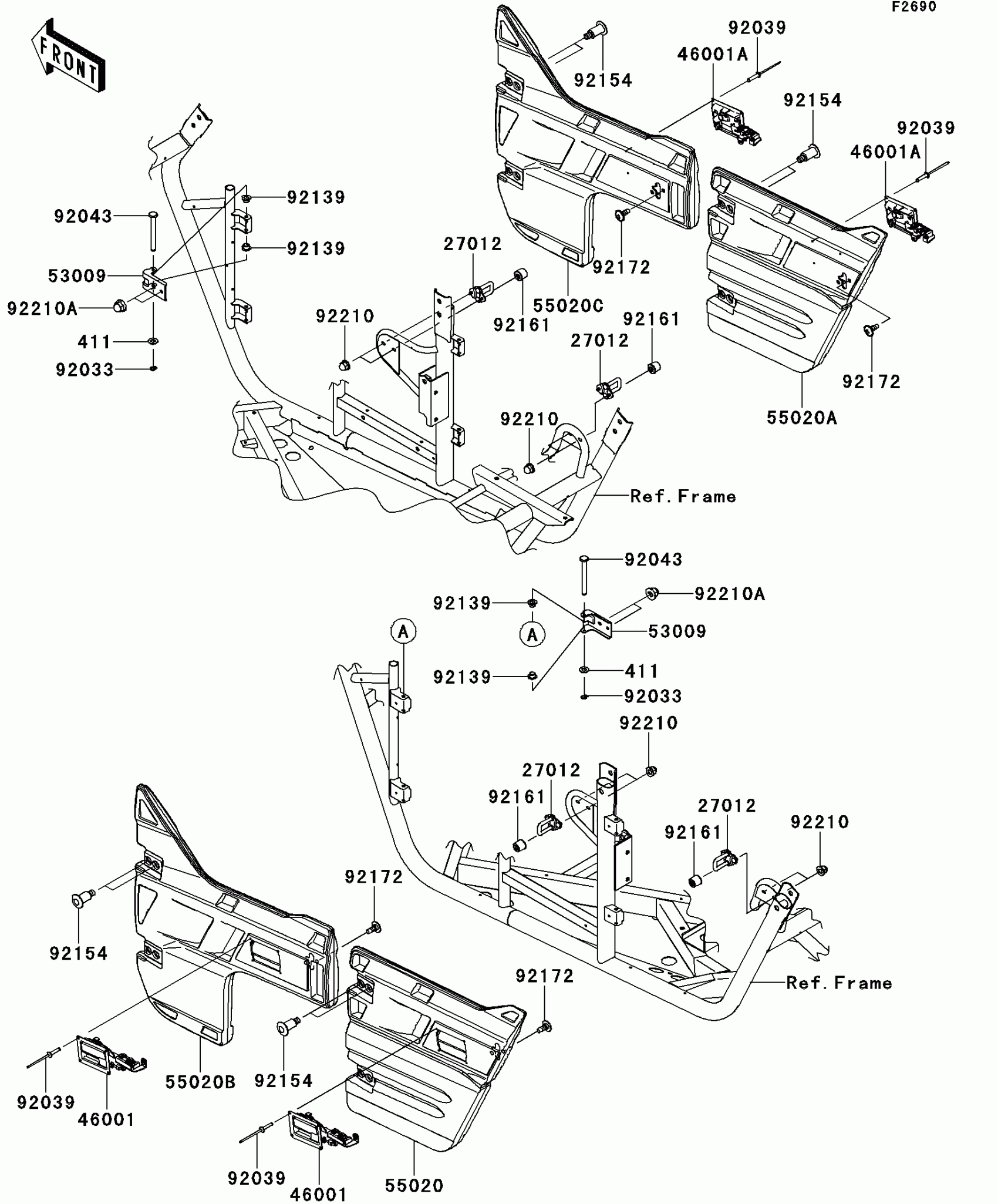

Kawasaki TERYX4™ 750 4x4 (Canadian) Door Diagram

Description

Price

27012

HOOK

27012-0705

$7.52

411

WASHER-PLAIN,6MM

411AB0600

$1.18

46001

HANDLE-ASSY,SIDE GUARD,LH

46001-0556

$76.22

46001A

HANDLE-ASSY,SIDE GUARD,RH

46001-0557

$76.22

53009

HINGE

53009-0303

$6.27

55020

GUARD,SIDE,RR,LH

55020-0728

$115.61

55020A

GUARD,SIDE,RR,RH

55020-0729

$139.80

55020B

GUARD,SIDE,FR,LH

55020-0730

$139.80

55020C

GUARD,SIDE,FR,RH

55020-0731

$139.80

92033

RING-SNAP

92033-0719

$0.84

92039

RIVET,4.0X17.5

92039-0703

$0.99

92043

PIN,6X56

92043-0743

$4.10

92139

BUSHING,6X8X6

92139-0709

$2.99

92154

BOLT,SOCKET,8X30

92154-0712

$6.05

92161

DAMPER,9X28X24.3

92161-1456

$3.71

92172

SCREW,6X16

92172-0711

$3.02

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,CAP,8MM

92210-0488

$3.29
