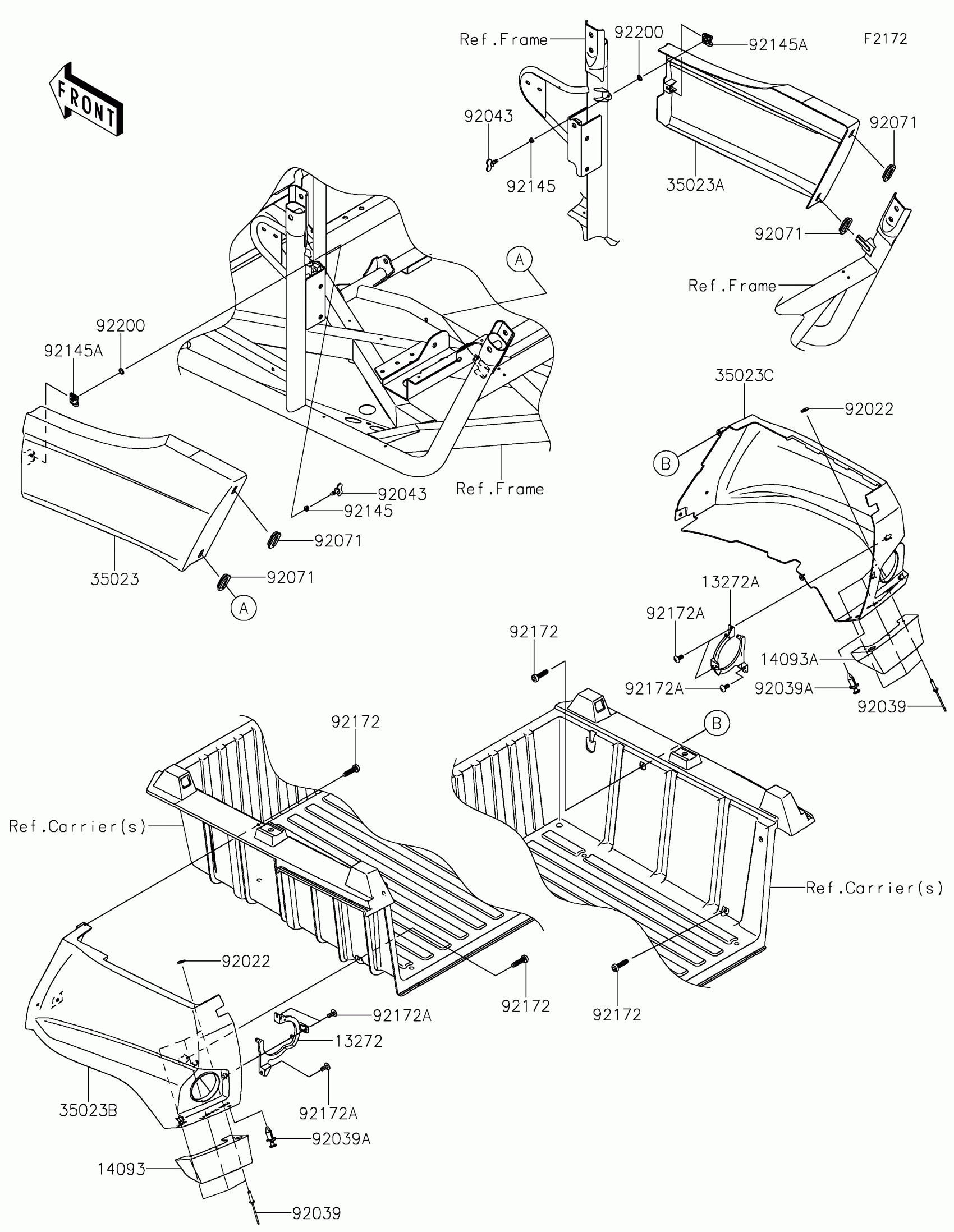

Kawasaki TERYX® S Rear Fender(s) Diagram

Description

Price

13272

PLATE,TAILLIGHT MOUNT,LH

13272-1481

$5.73

13272A

PLATE,TAILLIGHT MOUNT,RH

13272-1482

$5.73

14093

COVER,MUD GUARD,LH

14093-0001

$13.75

14093A

COVER,MUD GUARD,RH

14093-0002

$13.75

35023

FENDER-REAR,FR,LH,S.BLACK

35023-0366-839

$50.26

35023A

FENDER-REAR,FR,RH,S.BLACK

35023-0367-839

$50.26

35023B

FENDER-REAR,RR,LH,S.BLACK

35023-0368-839

$64.27

35023C

FENDER-REAR,RR,RH,S.BLACK

35023-0369-839

$64.27

92022

WASHER,5.2X13X1

92022-1380

$3.29

92039

RIVET,5X23.3

92039-0769

$1.36

92039A

RIVET

92039-0776

$0.80

92043

PIN,WINGED,240

92043-0779

$2.94

92071

GROMMET

92071-1187

$3.78

92145

SPRING

92145-0905

$1.09

92145A

SPRING,CLIP

92145-0906

$1.68

92172

SCREW

92172-0886

$3.19

92172A

SCREW,5X12

92172-3714

$1.43

92200

WASHER

92200-0800

$0.70
