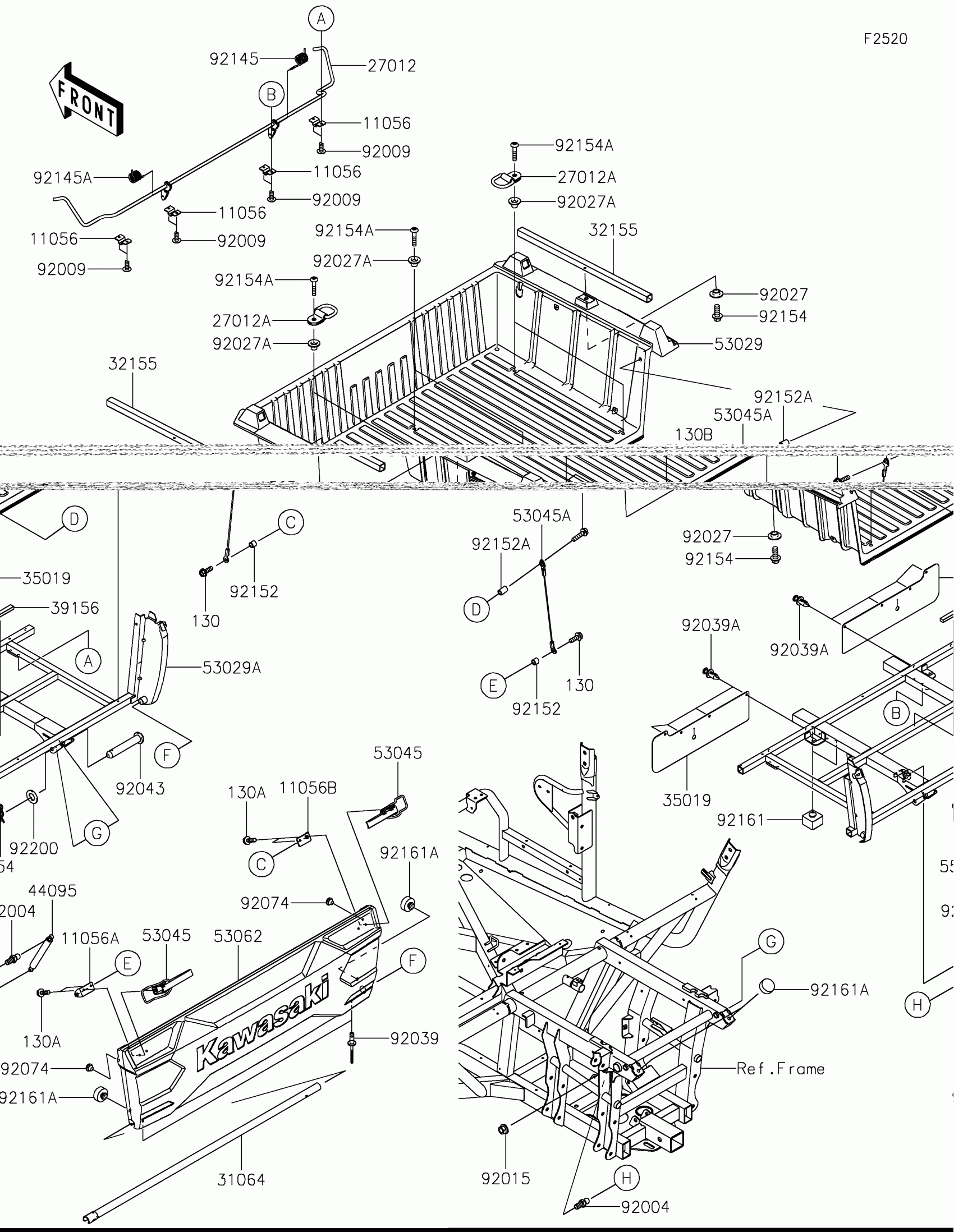

Kawasaki TERYX® S Carrier(s) Diagram

#

Description
Price

11056

BRACKET,ROD

11056-2422

$1.53

11056A

BRACKET

11056-2437

$5.36

11056B

BRACKET

11056-2447

$5.36

27012

HOOK,ROD

27012-0744

$59.93

27012A

HOOK

27012-0766

$8.10

31064

PIPE-COMP,PIVOT

31064-0656

$72.55

32155

PIPE,ACCESSORY RAIL

32155-1360

$45.12

35019

FLAP,MUD

35019-0583

$7.71

39156

PAD

39156-0068

$3.37

44095

DAMPER-GAS FILLED

44095-0001

$29.14

53029

CARRIER

53029-0332

$254.12

53029A

CARRIER

53029-0339

$274.59

53045

HOOK-ASSY,LATCH

53045-0020

$21.66

53045A

HOOK-ASSY,426MM

53045-0027

$9.39

53062

GATE-TAIL

53062-0023

$125.99

92004

STUD

92004-0733

$2.44

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92027

COLLAR

92027-1745

$6.55

92027A

COLLAR

92027-1767

$4.18

92039

RIVET,6.35X17.9

92039-0746

$0.97

92039A

RIVET

92039-0776

$0.80

92043

PIN,12.4X72.4

92043-0716

$7.15

92074

PLUG,7X2

92074-028

$3.81

92145

SPRING

92145-1609

$4.32

92145A

SPRING

92145-1610

$4.78

92152

COLLAR,6.3X9.5X8

92152-0621

$3.15

92152A

COLLAR,6.2X9.5X14.0

92152-1750

$3.27

92154

BOLT,FLANGED,8X20

92154-1226

$0.85

92154A

BOLT,TORX,6X30

92154-1316

$0.71

92161

DAMPER

92161-0421

$1.54

92161A

DAMPER

92161-1065

$2.84

92200

WASHER,13X24X2

92200-0451

$2.42

130

BOLT-FLANGED,6X18

130BB0618

$1.33

130A

BOLT-FLANGED,6X20

130BB0620

$0.47

130B

BOLT-FLANGED,6X25

130BB0625

$1.84

554

PIN-SNAP,12MM

554DA1200

$2.63
