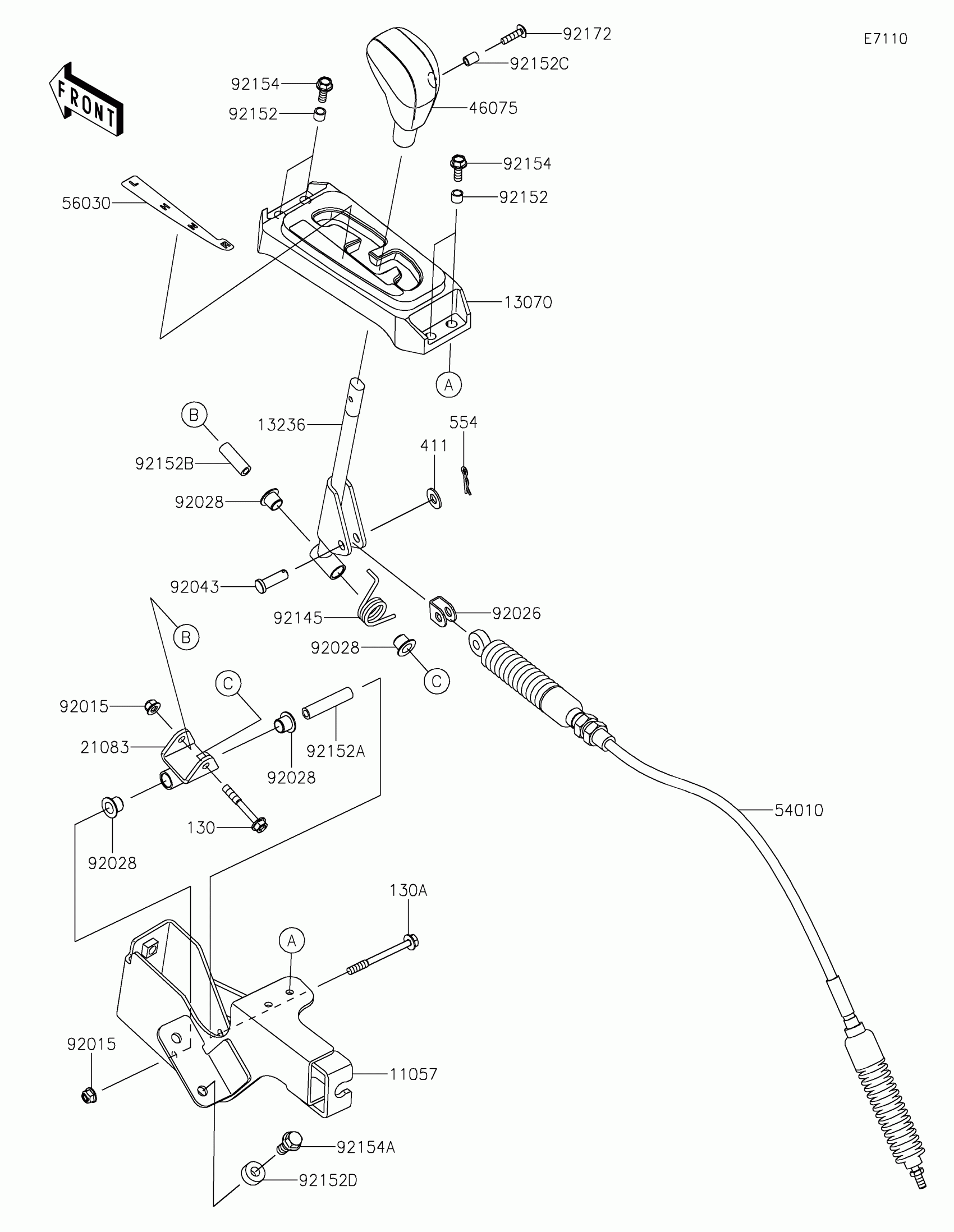

Kawasaki Teryx S Control Diagram
#
Description
Price
11057
BRACKET,SHIFT
11057-1494
$67.12
13070
GUIDE,SHIFT GAUGE
13070-0748
$22.85
13236
LEVER-COMP,SHIFT
13236-0727
$63.99
21083
ARM
21083-0710
$25.95
46075
GRIP
46075-0569
$22.85
54010
CABLE,SHIFT
54010-0619
$116.24
56030
LABEL,SHIFT POSITION
56030-0849
$7.54
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92026
SPACER
92026-0074
$3.90
92028
BUSHING
92028-1507
$5.25
92043
PIN
92043-0053
$5.65
92145
SPRING
92145-0832
$5.29
92152
COLLAR
92152-1332
$4.18
92152A
COLLAR,6.0X10X47
92152-1517
$7.43
92152B
COLLAR,6.0X10X30
92152-1518
$6.63
92152C
COLLAR,5.6X8X10.5
92152-1545
$2.67
92152D
COLLAR,8.2X18X8
92152-1553
$5.90
92154
BOLT,FLANGED,6X16
92154-0887
$1.63
92154A
BOLT,FLANGED,8X20
92154-1104
$3.02
92172
SCREW,5X20
92172-2081
$0.73
130
BOLT-FLANGED,6X45
130CA0645
$1.47
130A
BOLT-FLANGED,6X65
130CA0665
$1.77
411
WASHER-PLAIN,8MM
411AA0800
$0.96
554
PIN-SNAP
554DA0800
$1.36
