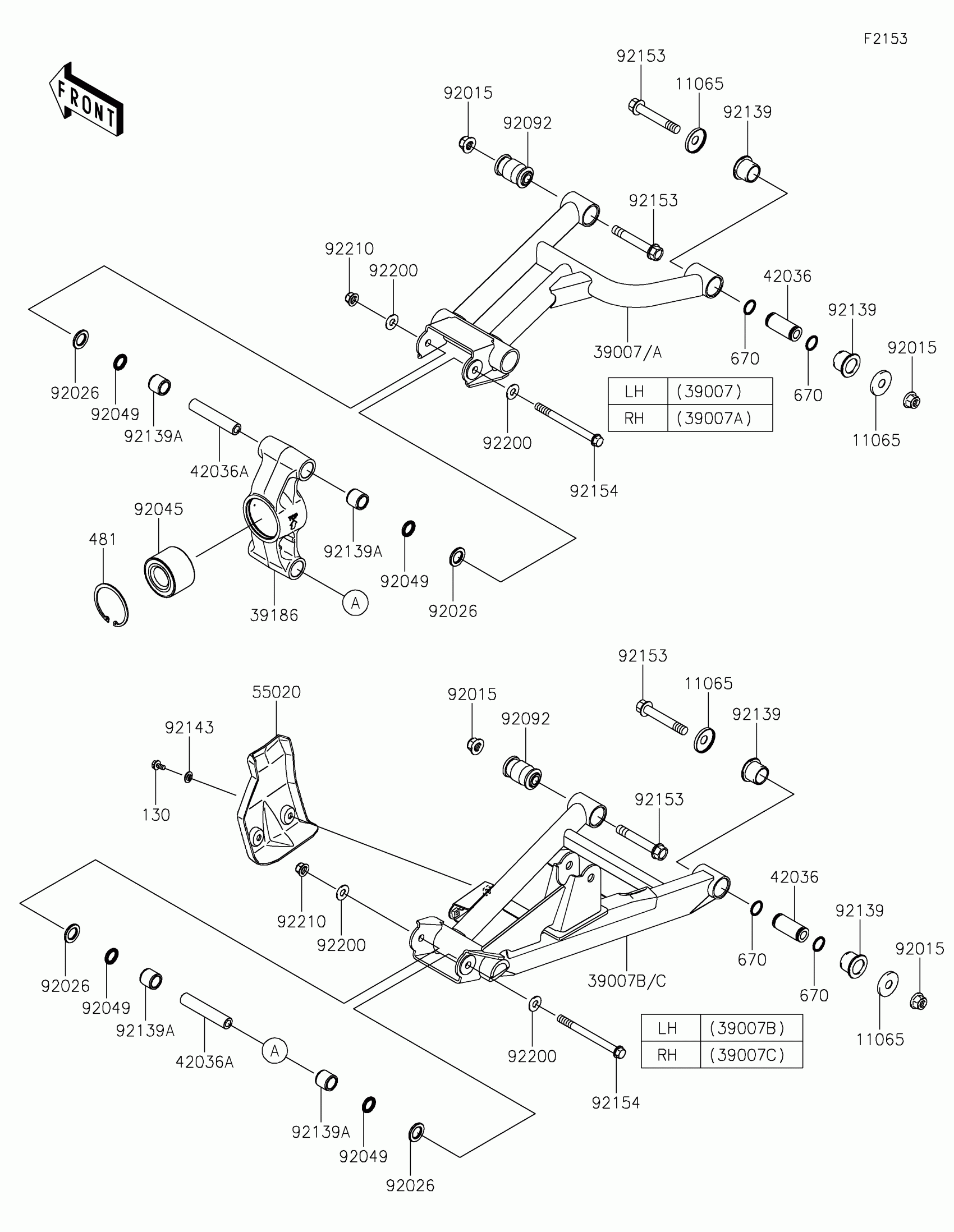

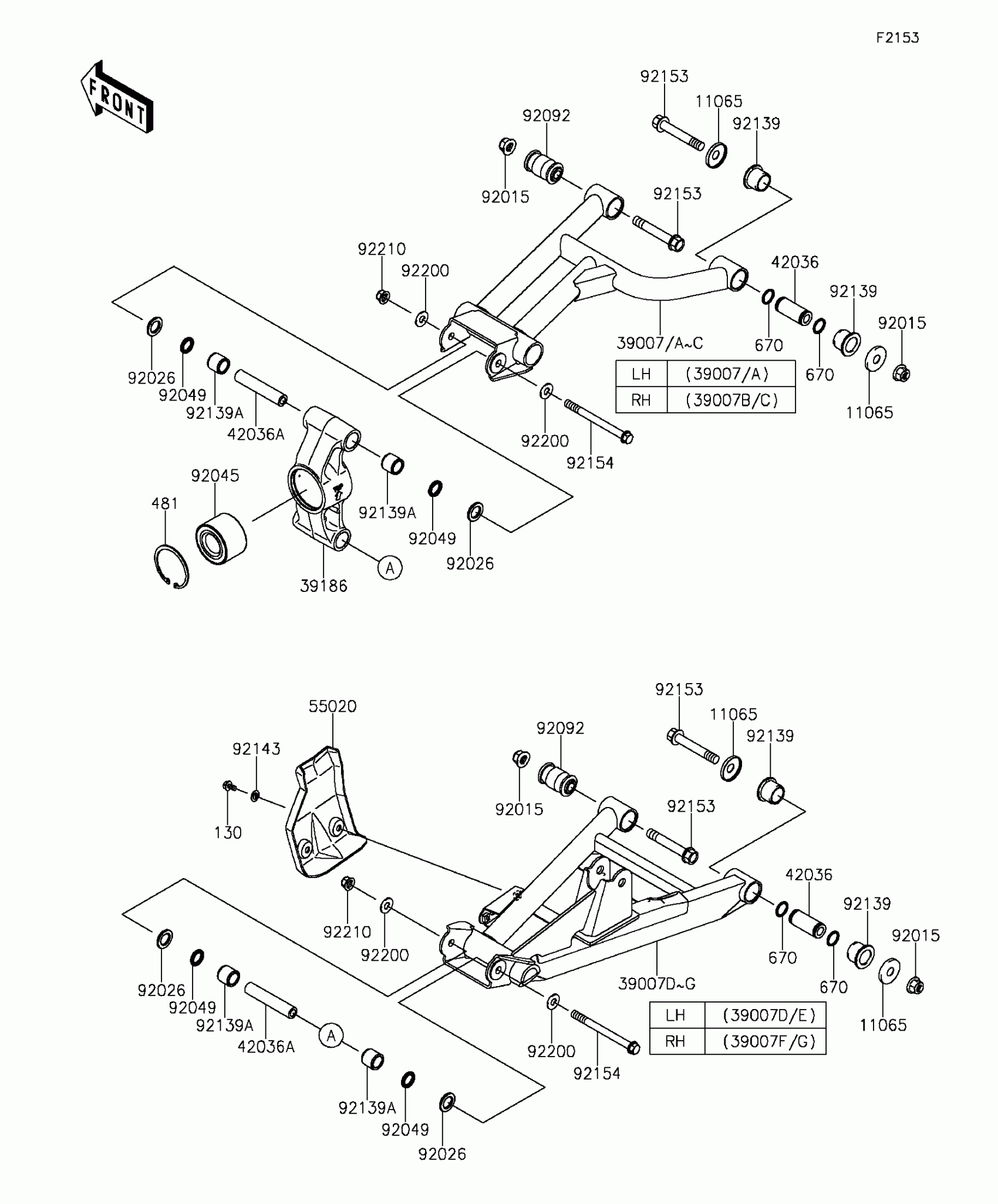

Kawasaki TERYX® LE Rear Suspension Diagram
#
Description
Price
11065
CAP
11065-0253
$3.87
39007
ARM-SUSP,RR,UPP,LH,C.L.GREEN
39007-0345-42Q
$130.42
39007B
ARM-SUSP,RR,UPP,RH,C.L.GREEN
39007-0346-42Q
$130.42
39007D
ARM-SUSP,RR,LWR,LH,C.L.GREEN
39007-0347-42Q
$130.42
39007F
ARM-SUSP,RR,LWR,RH,C.L.GREEN
39007-0348-42Q
$130.42
39186
KNUCKLE,RR
39186-0316
$159.14
42036
SLEEVE
42036-0062
$23.84
42036A
SLEEVE,10X17X88
42036-0710
$15.50
55020
GUARD,REAR ARM
55020-0805
$13.79
92015
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92026
SPACER,17X28.6X3
92026-0746
$3.26
92045
BEARING-BALL,30X62X40
92045-0739
Unavailable
92049
SEAL-OIL,17X24X3
92049-0726
$7.58
92092
BUSHING-RUBBER
92092-0555
$19.13
92139
BUSHING
92139-0231
$7.69
92139A
BUSHING,17X24X21.5
92139-0736
$14.49
92143
COLLAR
92143-1087
$4.31
92153
BOLT,FLANGED,12X76.5
92153-1733
$7.75
92154
BOLT,FLANGED,10X117
92154-0743
$9.17
92200
WASHER,10.3X23X1.6
92200-2009
$1.35
92210
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
130
BOLT-FLANGED,6X12
130BA0612
$1.72
481
CIRCLIP
481J6200
$11.39
670
O RING,18MM
670B2018
$1.42
