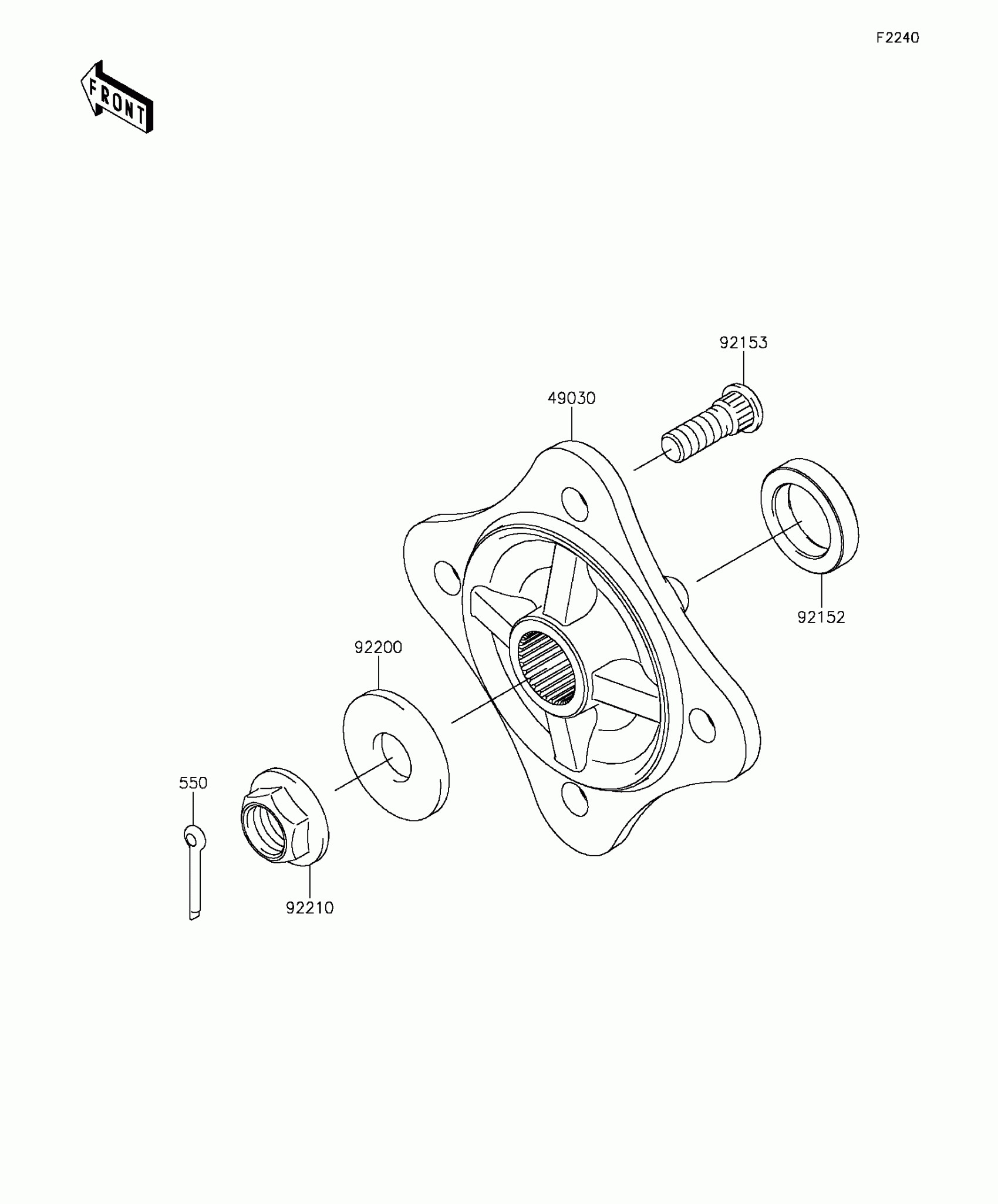

Kawasaki TERYX® LE Rear Hubs/Brakes Diagram

#

Description

Price

49030

HUB,RR

49030-0561

Unavailable

92152

COLLAR,30.1X44X9

92152-1700

$16.71

92153

BOLT,12MM

92153-1915

$5.05

92200

WASHER,20.3X52X4.5

92200-0130

$14.14

92210

NUT,FLANGED,20MM

92210-2093

$8.47

550

PIN-COTTER,4.0X30

550AA4030

$1.80
