Description

Price

13272

PLATE,TAILLIGHT MOUNT,LH

13272-1481

$6.62

13272A

PLATE,TAILLIGHT MOUNT,RH

13272-1482

$6.62

14093

COVER,MUD GUARD,LH

14093-0001

$14.55

14093A

COVER,MUD GUARD,RH

14093-0002

$14.55

35023

FENDER-REAR,FR,LH,M.S.WHITE

35023-0370-31Y

$101.22

35023A

FENDER-REAR,FR,LH,C.L.GREEN

35023-0370-367

$101.22

35023C

FENDER-REAR,FR,RH,M.S.WHITE

35023-0371-31Y

$101.22

35023D

FENDER-REAR,FR,RH,C.L.GREEN

35023-0371-367

$101.22

35023F

FENDER-REAR,RR,LH,M.S.WHITE

35023-0372-31Y

$113.75

35023G

FENDER-REAR,RR,LH,C.L.GREEN

35023-0372-367

$113.75

35023I

FENDER-REAR,RR,RH,M.S.WHITE

35023-0373-31Y

$101.98

35023J

FENDER-REAR,RR,RH,C.L.GREEN

35023-0373-367

$113.75

92022

WASHER,5.2X13X1

92022-1380

$4.31

92039

RIVET,4.9X19.8

92039-0704

$1.86

92039A

RIVET

92039-1229

$1.19

92043

PIN,WINGED,240

92043-0779

$3.89

92071

GROMMET

92071-1187

$4.96

92145

SPRING

92145-0905

$1.44

92145A

SPRING,CLIP

92145-0906

$2.35

92172

SCREW

92172-0886

$3.64

92172A

SCREW,5X12

92172-3714

$1.94

92200

WASHER

92200-0800

$0.79

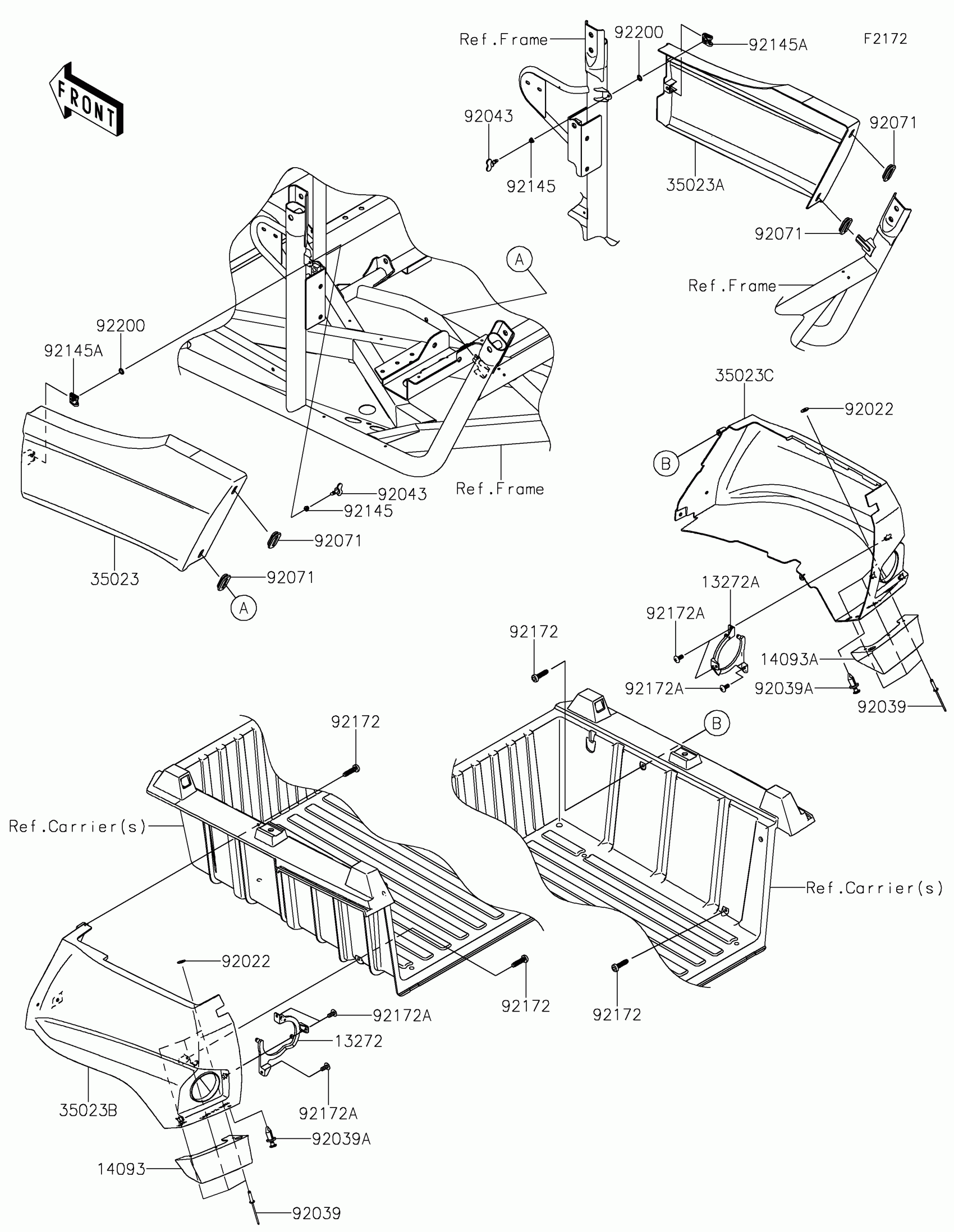

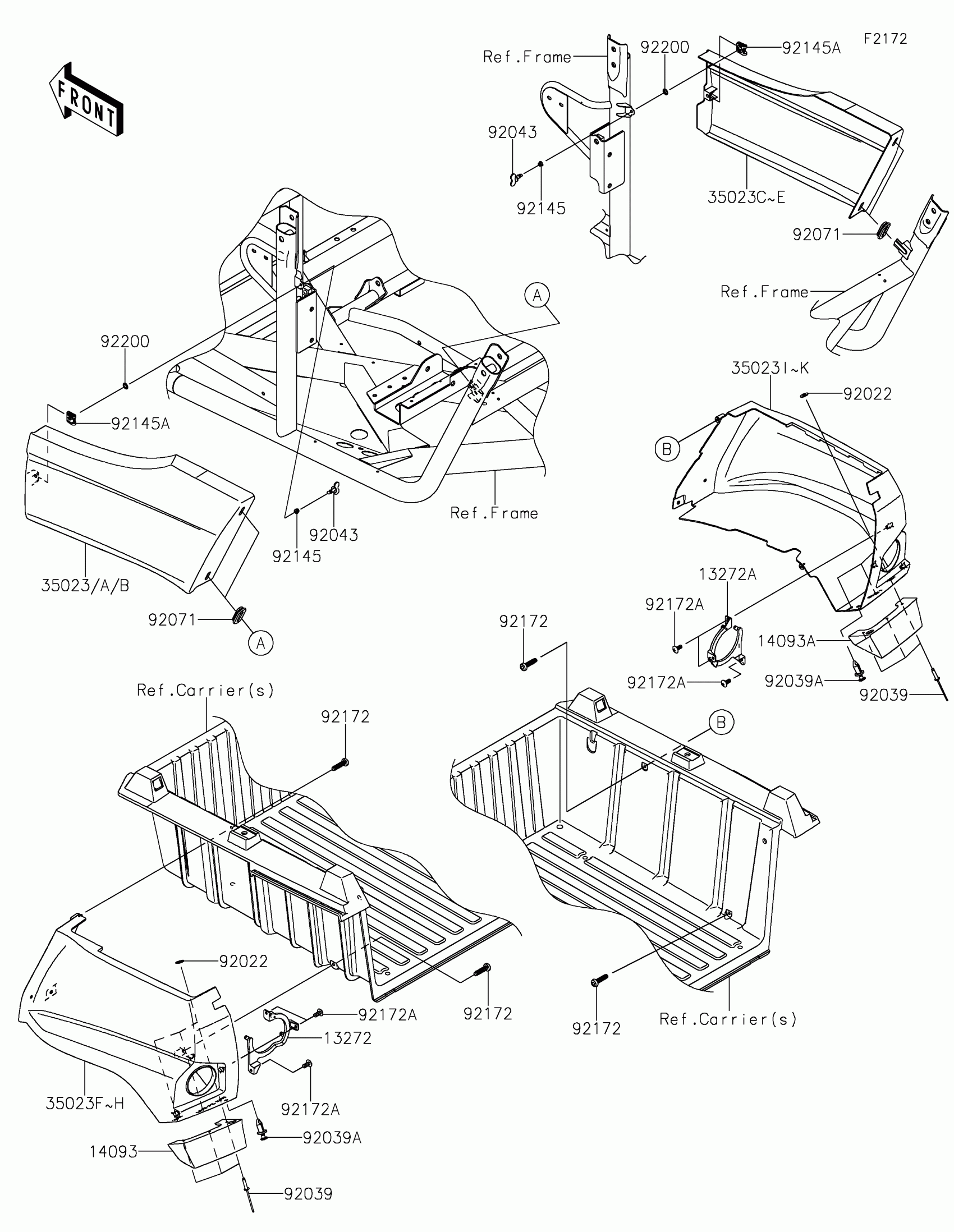

Kawasaki TERYX® LE Rear Fender(s) Diagram

PLATE,TAILLIGHT MOUNT,LH

PLATE,TAILLIGHT MOUNT,RH

COVER,MUD GUARD,LH

COVER,MUD GUARD,RH

FENDER-REAR,FR,LH,M.S.WHITE

FENDER-REAR,FR,LH,C.L.GREEN

FENDER-REAR,FR,RH,M.S.WHITE

FENDER-REAR,FR,RH,C.L.GREEN

FENDER-REAR,RR,LH,M.S.WHITE

FENDER-REAR,RR,LH,C.L.GREEN

FENDER-REAR,RR,RH,M.S.WHITE

FENDER-REAR,RR,RH,C.L.GREEN

WASHER,5.2X13X1

RIVET,4.9X19.8

RIVET

PIN,WINGED,240

GROMMET

SPRING

SPRING,CLIP

SCREW

SCREW,5X12

WASHER
