Description

Price

11009

GASKET,EXHAUST PIPE

11009-1992

$7.82

11056

BRACKET

11056-0727

$23.87

11061

GASKET,38.9X46.4X3.0

11061-0082

$7.60

11061A

GASKET,PIPE-MUFFLER

11061-0811

$8.81

18077

ARRESTER-SPARK

18077-0702

$168.58

18087

MUFFLER

18087-0304

$716.89

18088

PIPE-EXHAUST

18088-0837

$355.89

39178

MANIFOLD-COMP-EXHAUST

39178-0190

$1,194.04

49107

COVER-EXHAUST PIPE,FR,LH

49107-0753

$22.41

49107A

COVER-EXHAUST PIPE,FR,RH

49107-0754

$31.85

49107B

COVER-EXHAUST PIPE,RR,UPP

49107-0755

$13.82

49107C

COVER-EXHAUST PIPE,RR,LWR

49107-0756

$19.13

49107D

COVER-EXHAUST MANIFOLD,RH

49107-0757

$18.22

49107E

COVER-EXHAUST MANIFOLD,LH

49107-0758

$26.67

92015

NUT,8MM

92015-1402

$4.69

92152

COLLAR,8.2X17X4.5

92152-1609

$7.58

92154

BOLT,FLANGED,6X12

92154-0852

$1.19

92161

DAMPER

92161-0961

$24.27

92210

NUT,8MM

92210-1242

$2.41

130

BOLT-FLANGED,8X30

130BD0830

$1.94

130A

BOLT-FLANGED,10X16

130CA1016

$3.35

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$3.40

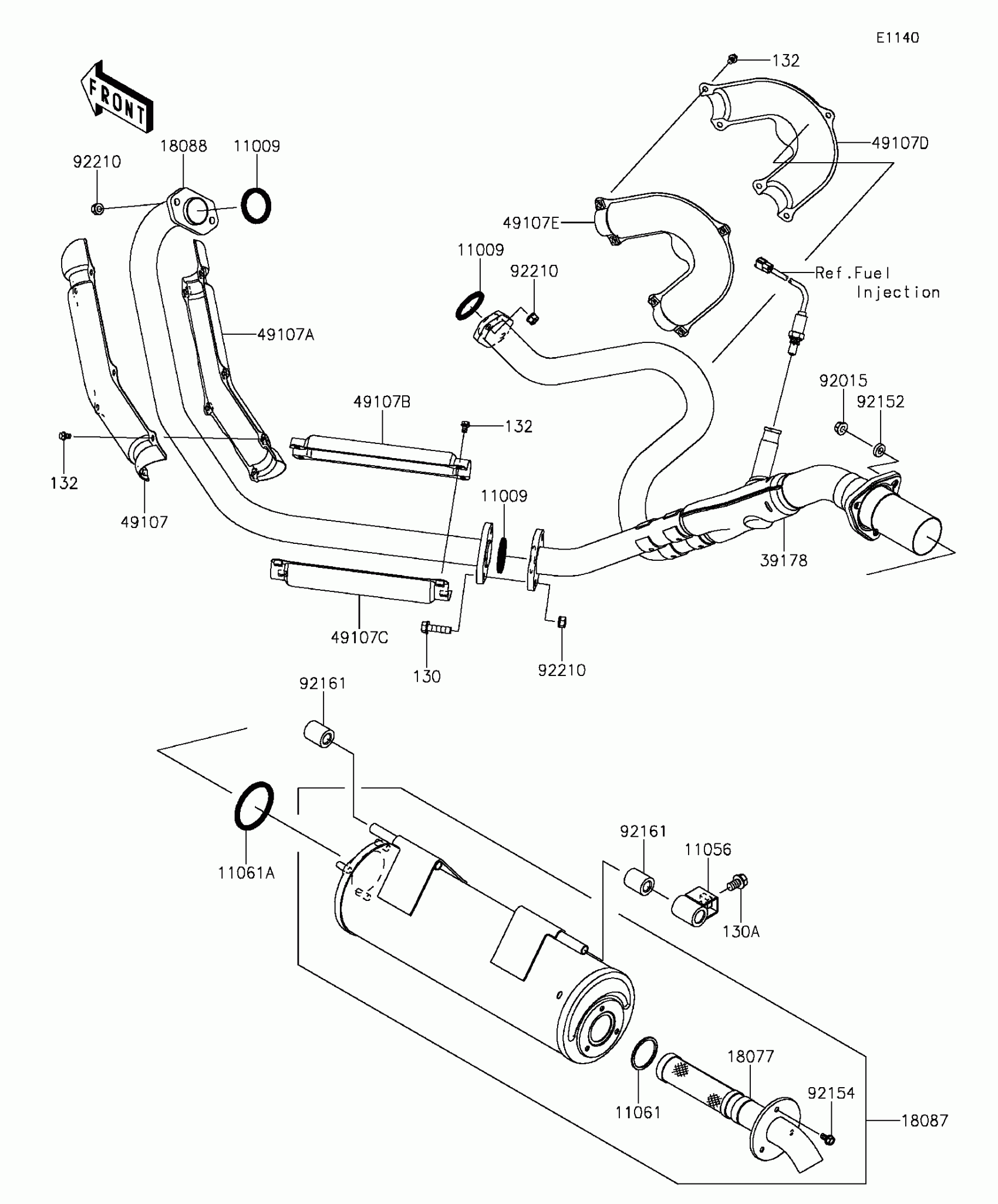

Kawasaki TERYX® LE Muffler(s) Diagram

GASKET,EXHAUST PIPE

BRACKET

GASKET,38.9X46.4X3.0

GASKET,PIPE-MUFFLER

ARRESTER-SPARK

MUFFLER

PIPE-EXHAUST

MANIFOLD-COMP-EXHAUST

COVER-EXHAUST PIPE,FR,LH

COVER-EXHAUST PIPE,FR,RH

COVER-EXHAUST PIPE,RR,UPP

COVER-EXHAUST PIPE,RR,LWR

COVER-EXHAUST MANIFOLD,RH

COVER-EXHAUST MANIFOLD,LH

NUT,8MM

COLLAR,8.2X17X4.5

BOLT,FLANGED,6X12

DAMPER

NUT,8MM

BOLT-FLANGED,8X30

BOLT-FLANGED,10X16

BOLT-FLANGED-SMALL,6X8
