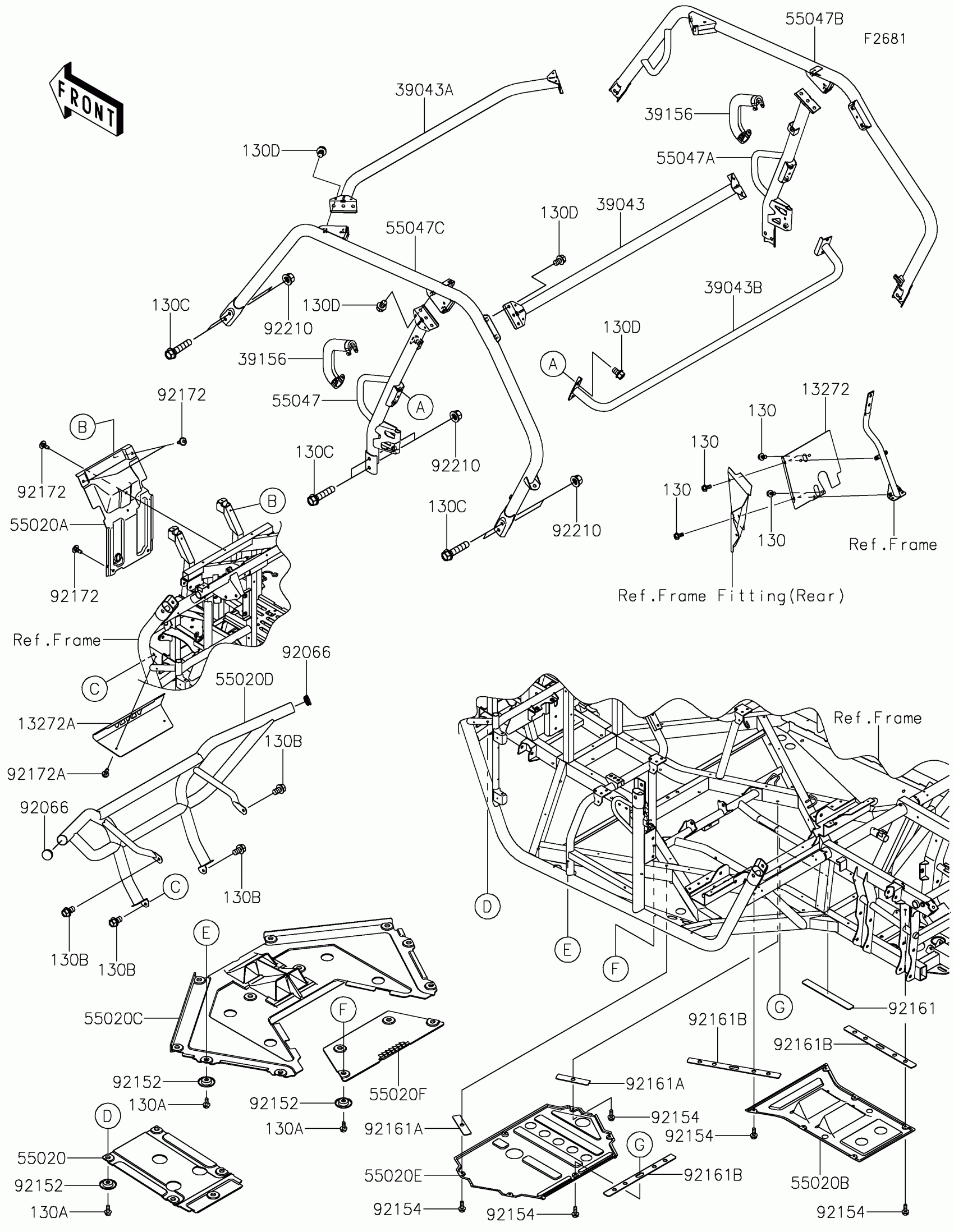

Kawasaki TERYX® LE Guards/Cab Frame Diagram

#

Description
Price

13272

PLATE,T.BLACK

13272-1433-388

$35.61

39043

CROSSMEMBER-COMP,UPP,RR,T.BLK

39043-0009-388

$110.29

39043A

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0010-388

$110.29

39043B

CROSSMEMBER-COMP,T.BLACK

39043-0015-388

$145.03

39156

PAD,SHOULDER

39156-0939

$20.04

55020

GUARD,SKID,FR

55020-0723

$34.28

55020A

GUARD,FR FRAME

55020-0741

$30.31

55020B

GUARD,SKID,RR

55020-0812

$59.85

55020C

GUARD,SKID,CNT

55020-0815

$114.43

55020D

GUARD,SKID,FR MIDDLE

55020-0890

$131.59

55020E

GUARD

55020-0891

$117.21

55020F

GUARD,FRONT,T.BLACK

55020-0895-388

$265.69

55020G

GUARD

55020-1883

Unavailable

55047

BAR-COMP,A/C-PILLAR,RH,T.BLACK

55047-0036-388

$219.76

55047A

BAR-COMP,A/C-PILLAR,LH,T.BLACK

55047-0047-388

Unavailable

55047B

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0347-388

Unavailable

55047C

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0348-388

Unavailable

92015

NUT,POP,8MM,L=16.5

92015-1793

$5.00

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92066

PLUG

92066-7503

$1.75

92152

COLLAR

92152-0784

$2.12

92154

BOLT,FLANGED,6X16

92154-0887

$1.63

92161

DAMPER,32X270X3

92161-1597

$5.28

92161A

DAMPER,32X140X3

92161-1598

$3.55

92161B

DAMPER,32X390X3

92161-1599

$5.54

92172

SCREW,6X16

92172-0826

$2.26

92172A

SCREW,TAPPING,6X16

92172-0869

$1.48

92173

CLAMP

92173-0779

$19.46

92210

NUT,12MM

92210-0603

$8.98

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,10X16

130BA1016

$4.76

130B

BOLT-FLANGED,6X16

130BB0616

$2.06

130C

BOLT-FLANGED,8X22

130BB0822

$2.34

130D

BOLT-FLANGED,12X55

130BB1255

$4.24

130E

BOLT-FLANGED,10X14

130CB1014

$3.39

311

NUT-HEX,6MM

311BB0600

$1.04

411

WASHER-PLAIN,6MM

411AB0600

$1.18
