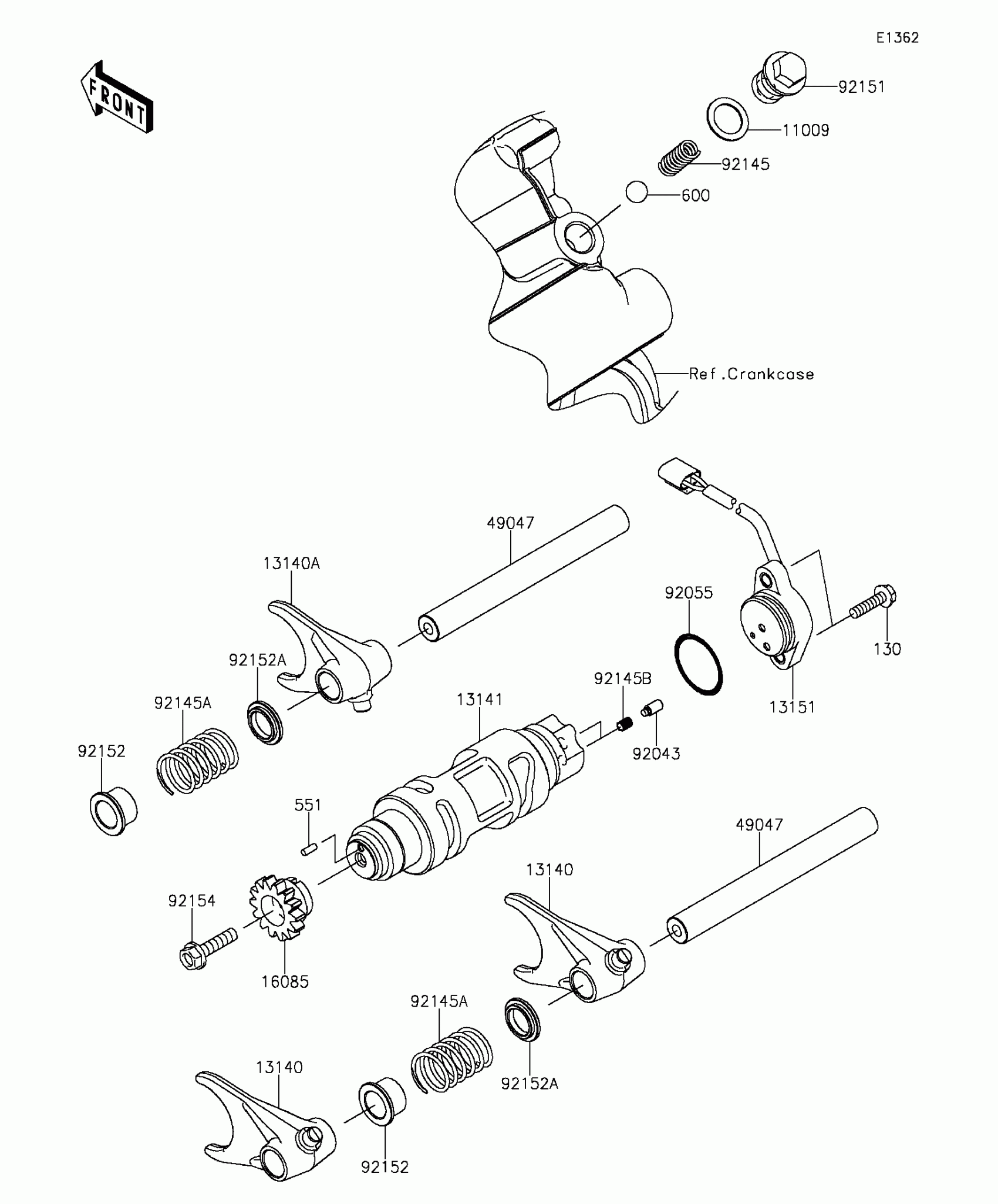

Kawasaki TERYX® LE Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$3.63

13140

FORK-SHIFT,COUNTER

13140-0622

$49.33

13140A

FORK-SHIFT,INPUT

13140-0623

$49.33

13141

DRUM-CHANGE

13141-0576

$110.04

13151

SWITCH-COMP,GEAR POSITION

13151-0561

$47.87

16085

GEAR,14T

16085-0589

$71.76

49047

ROD-SHIFT

49047-0619

$33.24

92043

92043-1654

$3.74

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-0828

$2.30

92145A

SPRING

92145-0898

$4.37

92145B

SPRING

92145-1414

$4.14

92151

BOLT

92151-1451

$15.24

92152

COLLAR,14X18X12.5

92152-1595

$16.91

92152A

COLLAR,14X18X4

92152-1596

$11.99

92154

BOLT,FLANGED,6X25

92154-0707

$1.19

130

BOLT-FLANGED,5X20

130BA0520

$0.92

551

PIN DOWEL 3X8

551A0308

$0.56

600

BALL-STEEL,13/32"

600A1300

$0.94
