2015 Kawasaki Teryx® Le Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2015 Kawasaki Teryx® Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

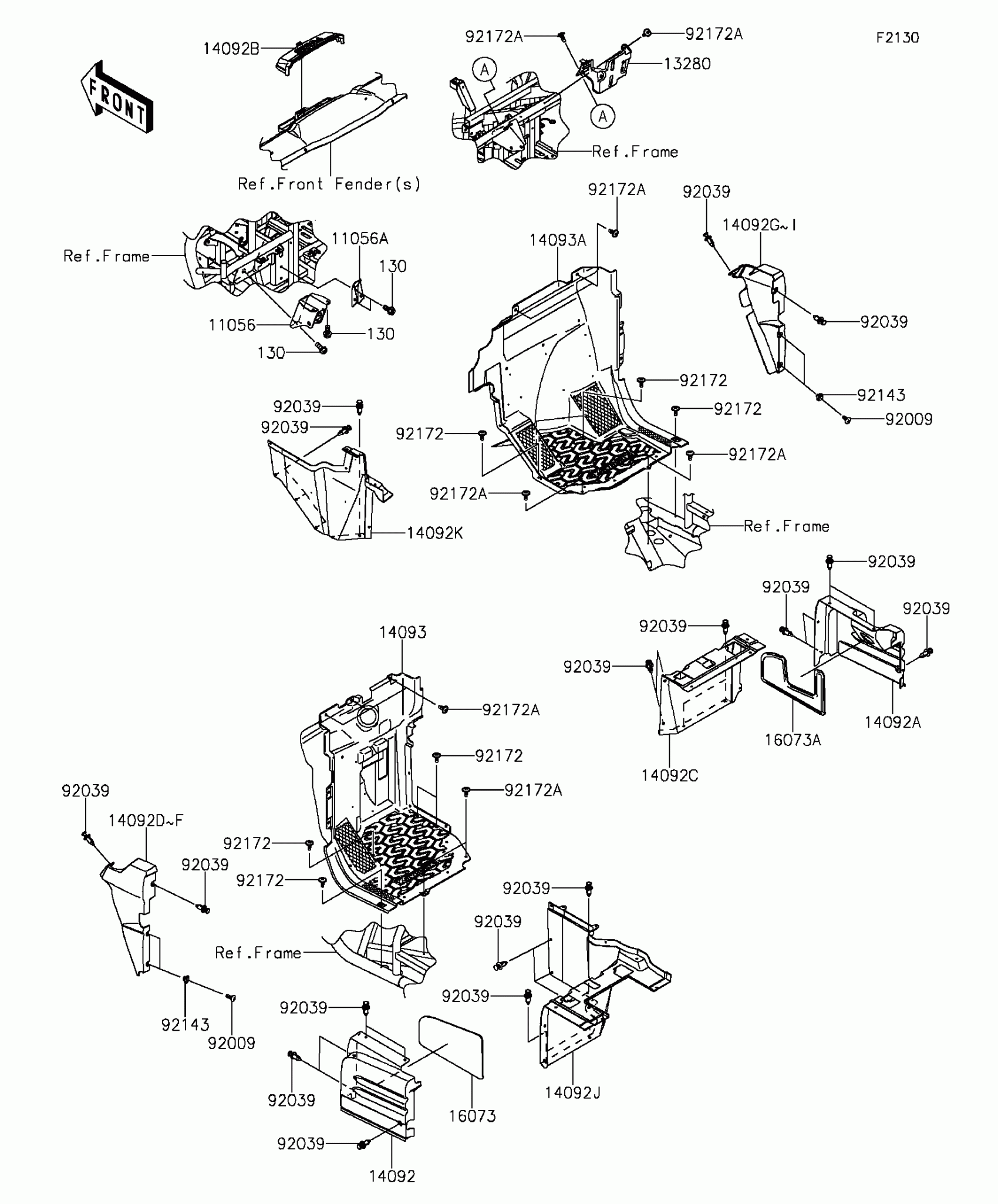

2015 Kawasaki Teryx® Le Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,BRAKE PEDAL

11056-1431

1

$58.98

In stock

11056A

1

$10.95

In stock

13280

HOLDER

13280-0782

1

$7.42

In stock

14092

COVER,SEAT SIDE,LH

14092-0720

1

$15.12

In stock

14092A

COVER,SEAT SIDE,RH

14092-0721

1

$15.12

In stock

14092B

COVER,FUSE BOX

14092-0724

1

$5.33

In stock

14092C

COVER,FR SEAT,RH

14092-0757

1

$20.68

In stock

14092D

1

$158.72

In stock

14092E

1

$131.84

In stock

14092G

1

$158.72

In stock

14092H

1

$131.84

In stock

14092J

COVER,FR SEAT,LH

14092-1082

1

$45.19

In stock

14092K

1

$25.88

In stock

14093

COVER,FR FLOOR,LH

14093-5137

1

$93.57

In stock

14093A

COVER,FR FLOOR,RH

14093-5138

1

$93.57

In stock

16073

1

$29.98

In stock

16073A

1

$29.98

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-1229

1

$0.80

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92172

SCREW,6X16

92172-0711

1

$2.44

In stock

92172A

SCREW,6X16

92172-0826

1

$1.88

In stock

130

BOLT-FLANGED,8X18

130BA0818

1

$2.10

In stock
