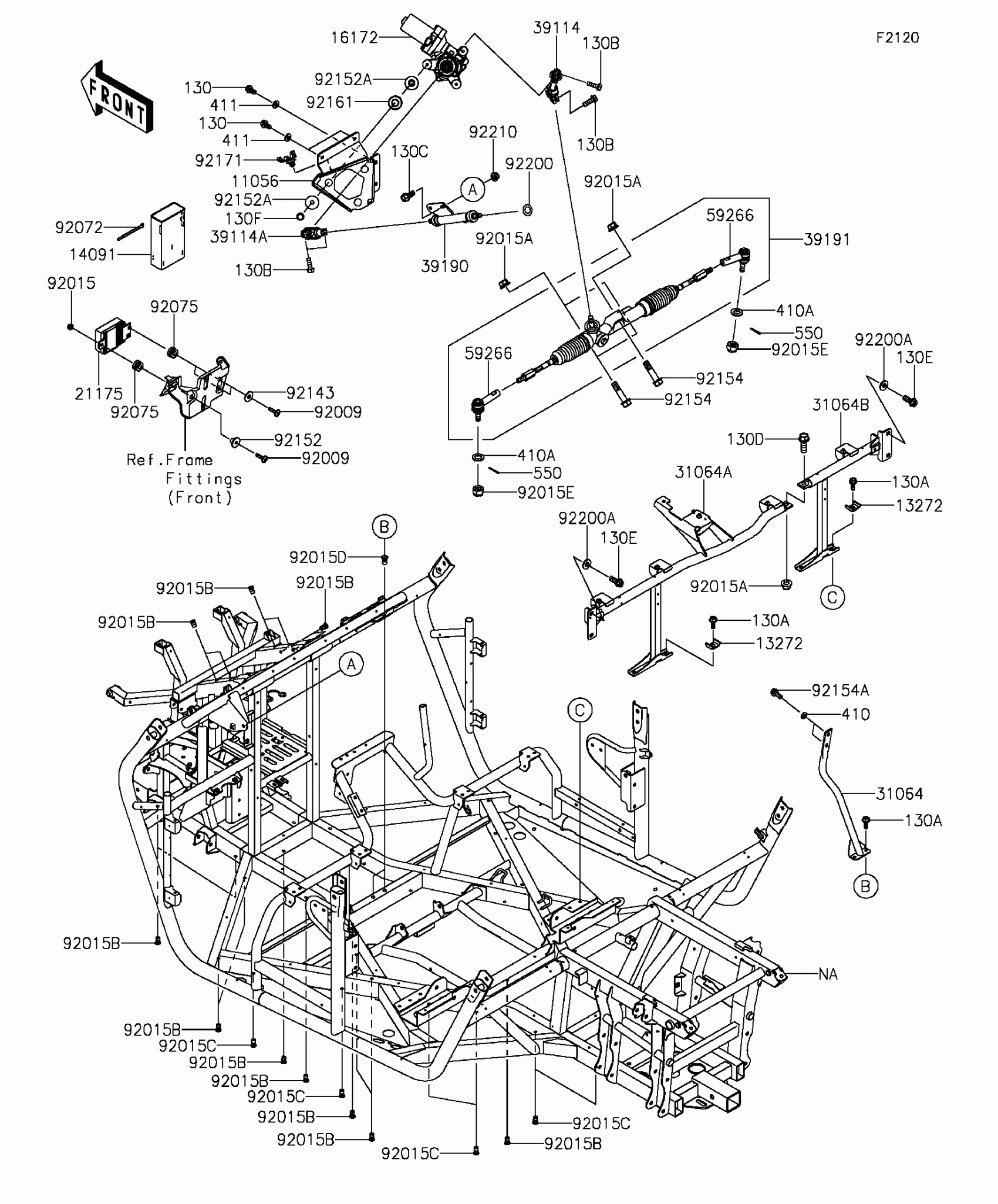

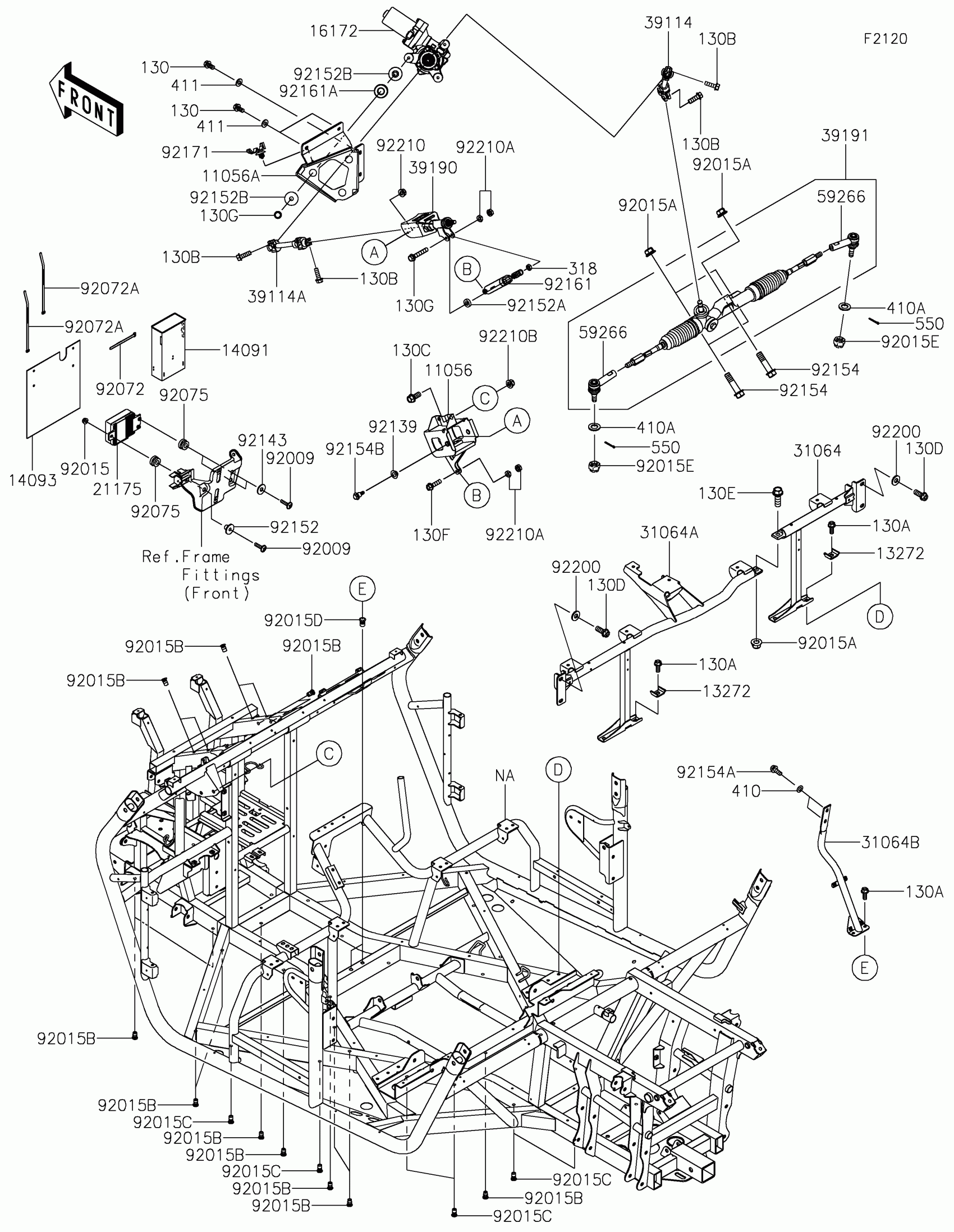

Kawasaki TERYX® LE Frame Diagram

#

Description
Price

11056

BRACKET,EPS ACTUATOR

11056-1416

$98.58

13272

PLATE

13272-1336

$1.03

14091

COVER,ECU

14091-7560

$47.25

16172

ACTUATOR,EPS

16172-0557

$1,859.76

21175

CONTROL UNIT-ELECTRONIC

21175-0809

$881.07

31064

PIPE-COMP

31064-0594

$36.54

31064A

PIPE-COMP,SUB FRAME,SEAT,LH

31064-0624

$147.90

31064B

PIPE-COMP,SUB FRAME,SEAT,RH

31064-0632

$71.28

39114

SHAFT-COMP-STRG

39114-0017

$88.16

39114A

SHAFT-COMP-STRG

39114-0019

$97.99

39190

SHAFT-ASSY-STEERING

39190-7501

$236.68

39191

GEAR-ASSY-STEERING

39191-0018

$823.06

59266

JOINT-BALL

59266-0706

$57.35

92009

SCREW,6X25

92009-1465

$2.99

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015B

NUT,POP,6MM,L=15

92015-1791

$3.57

92015C

NUT,POP,6MM,L=16.5

92015-1792

$3.57

92015D

NUT,POP,8MM,L=16.5

92015-1793

$3.81

92015E

NUT,CASTLE,14MM

92015-1841

$6.39

92072

BAND,L=123

92072-030

$3.81

92075

DAMPER,RUBBER

92075-1123

$3.81

92143

COLLAR,L=6.5

92143-1025

$4.67

92152

COLLAR,6.5X10X13.3

92152-0957

$9.42

92152A

COLLAR

92152-7513

$4.44

92154

BOLT,FLANGED,12X50

92154-1008

$5.99

92154A

BOLT,FLANGED,8X20

92154-1130

$2.95

92161

DAMPER,ACTUATOR

92161-7517

$2.66

92171

CLAMP

92171-0453

$3.12

92200

WASHER,15X25X1.6

92200-0460

$3.27

92200A

WASHER,10.2X23X2.5

92200-7506

$3.51

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,8X20

130BA0820

$3.04

130B

BOLT-FLANGED,8X25

130BA0825

$2.01

130C

BOLT-FLANGED,10X22

130BA1022

$1.66

130D

BOLT-FLANGED,12X35

130BA1235

$3.19

130E

BOLT-FLANGED,10X25

130BB1025

$4.63

130F

BOLT-FLANGED,8X45

130CA0845

$0.95

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

410A

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

411

WASHER-PLAIN,8MM

411AA0800

$0.81

550

PIN-COTTER,3.0X25

550AA3025

$0.59
