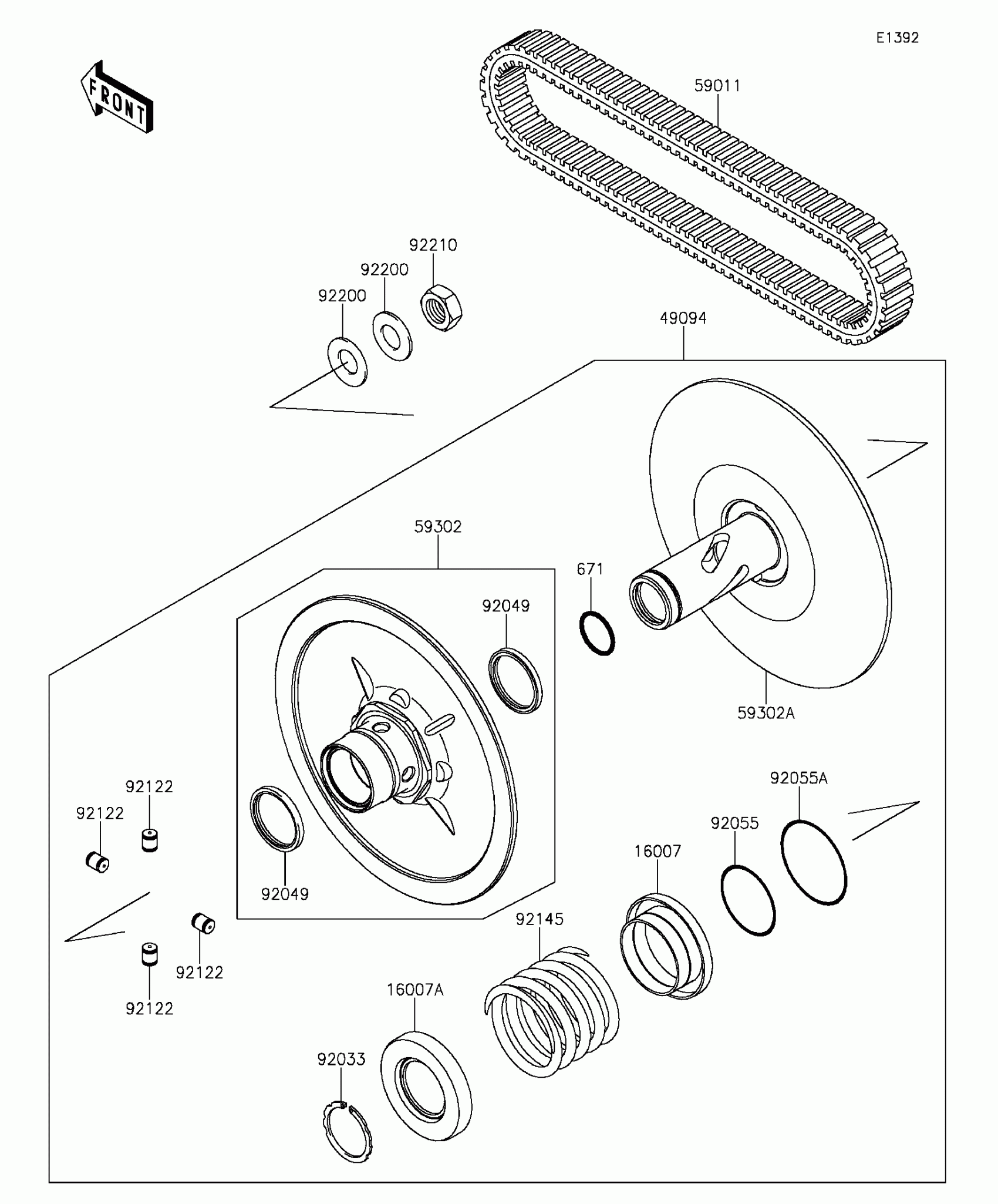

Kawasaki TERYX® LE Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0049

$17.14

16007A

SEAT-SPRING,FIXED

16007-0050

$14.76

49094

CONVERTER-ASSY-DRIVEN

49094-0086

$693.62

59011

BELT,CVT

59011-0040

$165.38

59302

SHEAVE-COMP,MOVABLE

59302-0042

$350.16

59302A

SHEAVE-COMP,FIXED

59302-0043

$350.16

92033

RING-SNAP

92033-1317

$6.12

92049

SEAL-OIL

92049-1528

$16.41

92055

RING-O,46.4X3.1

92055-0752

$4.41

92055A

RING-O,59.5X2.4

92055-0753

$4.10

92122

ROLLER

92122-0043

$13.49

92145

SPRING

92145-0959

$53.52

92200

WASHER

92200-1505

$5.00

92210

NUT,18MM

92210-0821

$3.63

671

O RING

671D2530

$5.79
