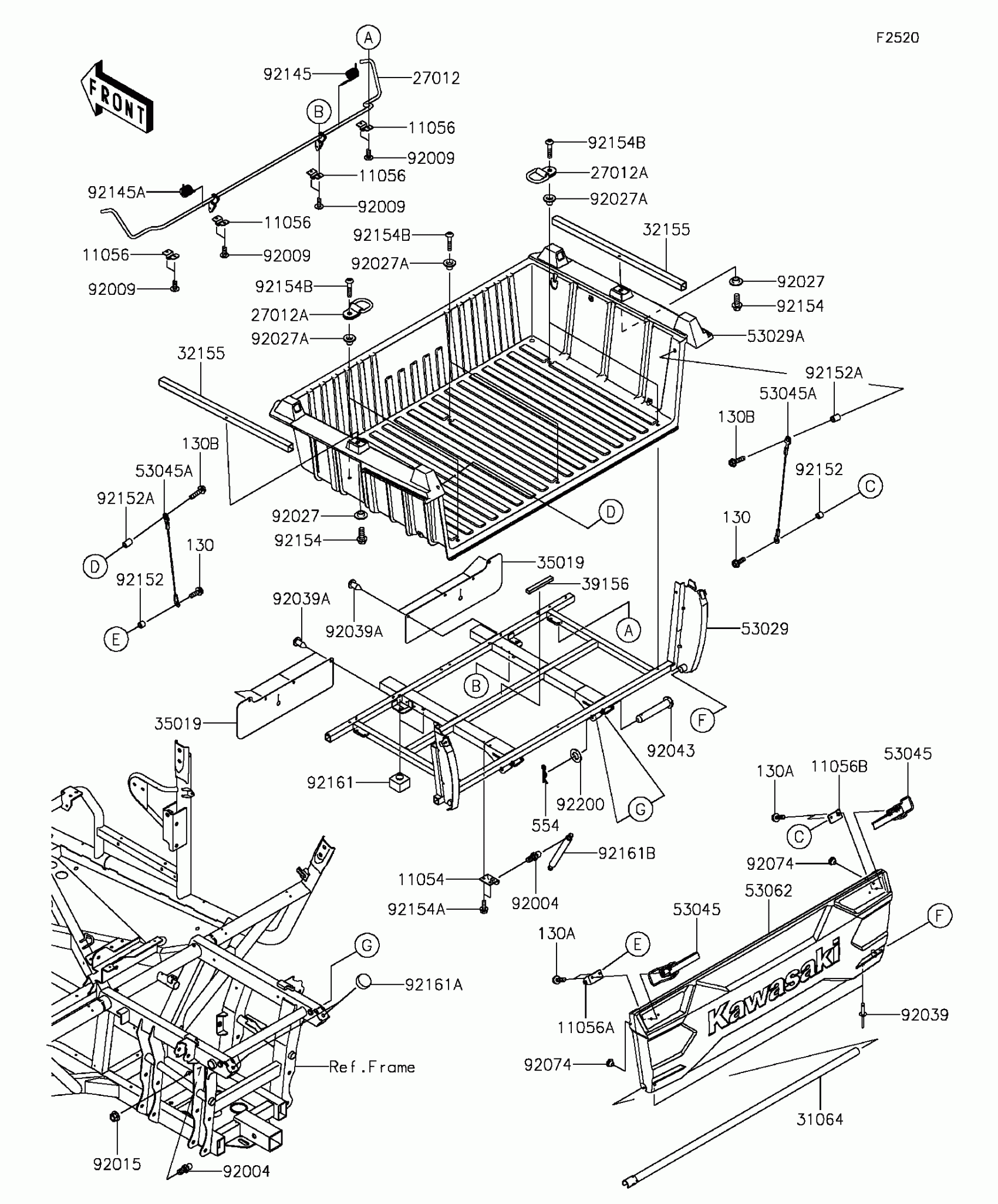

Kawasaki TERYX® LE Carrier(s) Diagram
#
11054
BRACKET
11054-1159
$4.12
11056
BRACKET,ROD
11056-2422
$1.78
11056A
BRACKET
11056-2437
$6.17
11056B
BRACKET
11056-2447
$6.17
27012
HOOK,ROD
27012-0744
$58.91
27012A
HOOK
27012-0766
$8.31
31064
PIPE-COMP,PIVOT
31064-0656
$71.27
32155
PIPE,ACCESSORY RAIL
32155-1360
$44.31
35019
FLAP,MUD
35019-0583
$7.88
39156
PAD
39156-0068
$3.87
53029
CARRIER,FRAME
53029-0331
Unavailable
53029A
CARRIER
53029-0332
$249.13
53045
HOOK-ASSY,LATCH
53045-0020
$23.25
53045A
HOOK-ASSY,CABLE
53045-0021
$10.19
53062
GATE-TAIL
53062-0021
$129.43
92004
STUD,8X13.5
92004-0034
$3.84
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT,FLANGED,8MM
92015-1406
$4.45
92027
COLLAR
92027-1745
$8.58
92027A
COLLAR
92027-1767
$5.52
92039
RIVET,6.35X17.9
92039-0746
$0.99
92039A
RIVET
92039-1229
$1.19
92043
PIN,12.4X72.4
92043-0716
$7.24
92074
PLUG,7X2
92074-028
$4.26
92145
SPRING
92145-1609
$4.87
92145A
SPRING
92145-1610
$5.43
92152
COLLAR,6.3X9.5X8
92152-0621
$3.59
92152A
COLLAR,6.2X9.5X14.0
92152-1750
$3.72
92154
BOLT,FLANGED,8X20
92154-1226
$1.02
92154A
BOLT,6X15.6
92154-1250
$0.82
92154B
BOLT,TORX,6X30
92154-1316
$0.66
92161
DAMPER
92161-0421
$1.81
92161A
DAMPER
92161-1065
$3.73
92161B
DAMPER,GAS
92161-1607
$43.67
92200
WASHER,13X24X2
92200-0451
$2.97
130
BOLT-FLANGED,6X18
130BB0618
$1.81
130A
BOLT-FLANGED,6X20
130BB0620
$0.46
130B
BOLT-FLANGED,6X25
130BB0625
$2.80
554
PIN-SNAP,12MM
554DA1200
$3.96
