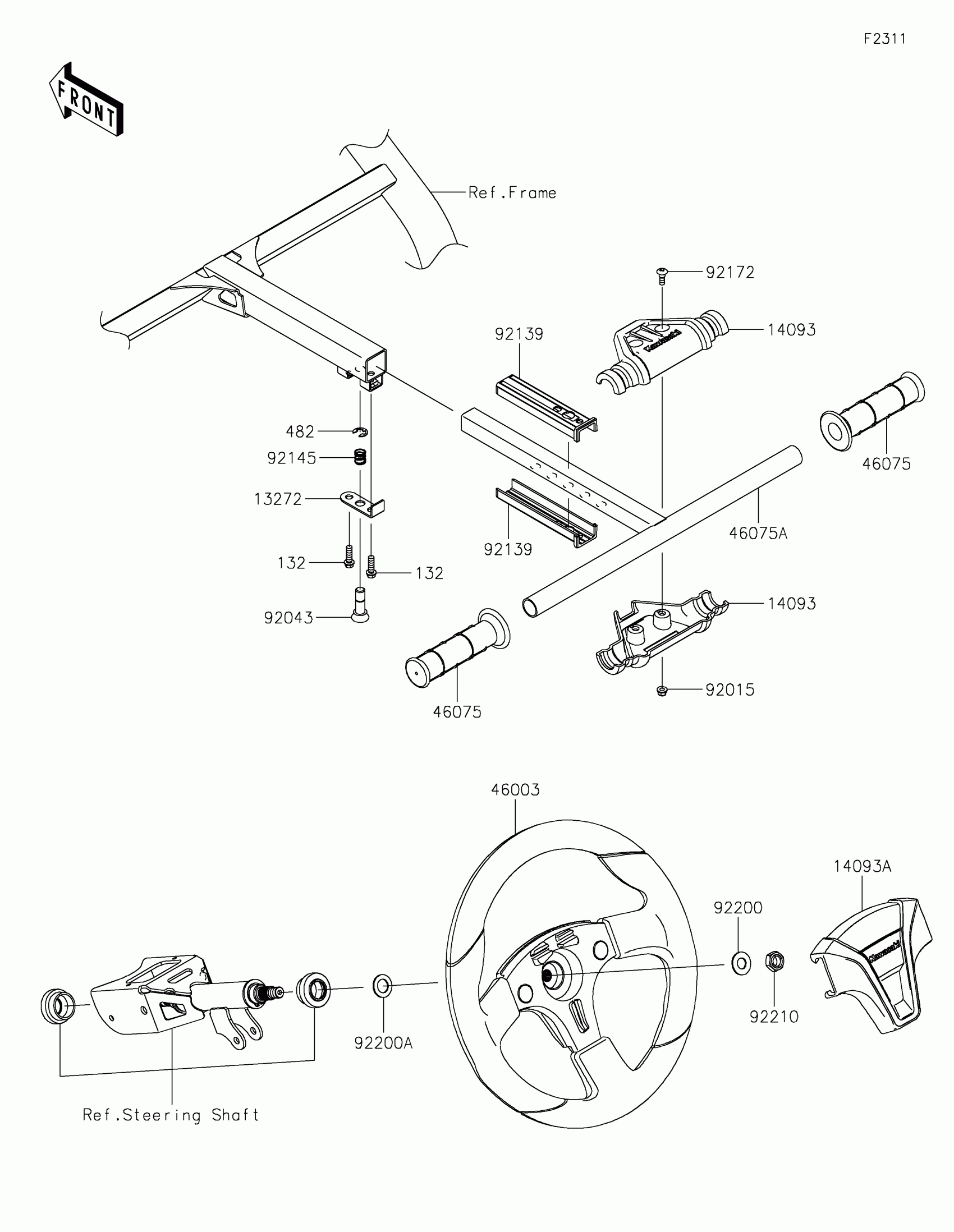

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Steering Wheel Diagram

Description

Price

13272

PLATE

13272-3869

$3.24

14093

COVER,PASSENGER GRIP

14093-0802

$5.97

14093A

COVER,HANDLE

14093-0803

$24.39

46003

HANDLE

46003-0809

$109.32

46075

GRIP

46075-0065

$30.65

46075A

GRIP,PIPE

46075-0658

$23.92

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92043

92043-7503

$4.17

92139

BUSHING

92139-1143

$4.44

92145

SPRING

92145-7507

$1.50

92172

SCREW,5MM

92172-0261

$3.39

92200

WASHER,12.1X25X1.6

92200-0455

$2.97

92200A

WASHER,15X25X1.6

92200-0460

$3.71

92210

NUT,LOCK,12MM

92210-1249

$7.71

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.99

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68
