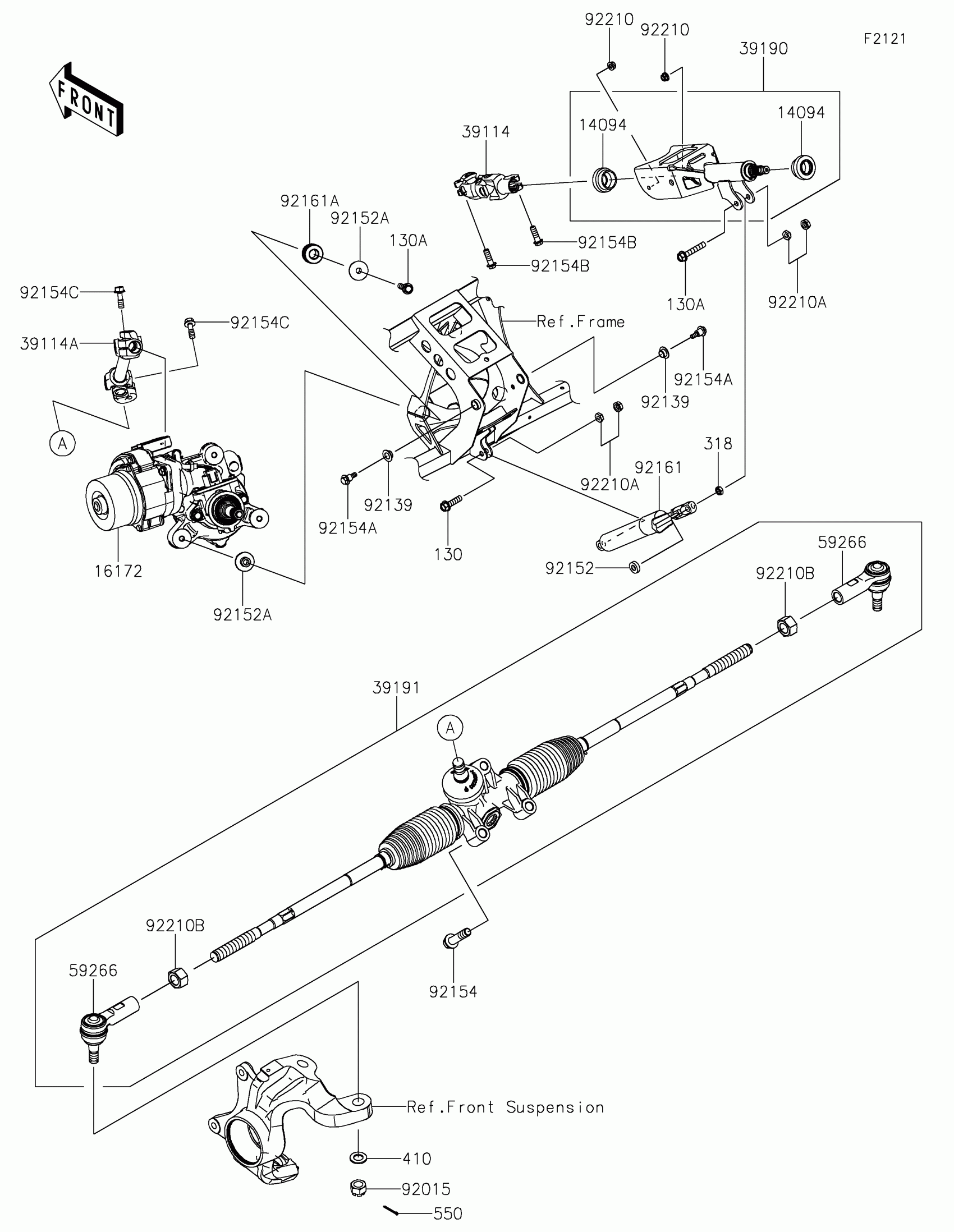

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Steering Shaft Diagram

Description

Price

14094

COVER,STEERING SHAFT

14094-0322

$6.52

16172

ACTUATOR,EPS

16172-0043

$2,042.82

39114

SHAFT-COMP-STRG,UPP

39114-0024

$158.69

39114A

SHAFT-COMP-STRG,LWR

39114-0043

$158.69

39190

SHAFT-ASSY-STEERING

39190-0018

$270.59

39191

GEAR-ASSY-STEERING

39191-0040

$1,150.68

59266

JOINT-BALL

59266-0743

$45.20

92015

NUT,CASTLE,14MM

92015-1841

$8.38

92139

BUSHING

92139-0230

$4.61

92152

COLLAR,8.2X18X5

92152-1848

$5.69

92152A

COLLAR,8.5X30X10.6

92152-2149

$5.04

92154

BOLT,FLANGED,12X50

92154-1008

$7.85

92154A

BOLT,6X21.5

92154-1320

$2.49

92154B

BOLT,FLANGED,8X25

92154-2190

$3.99

92154C

BOLT,FLANGED,8X39

92154-7043

$9.23

92161

DAMPER,STEERING TILT

92161-2186

$51.50

92161A

DAMPER

92161-2187

$1.39

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34

92210A

NUT,HARD LOCK,8MM

92210-0934

$4.92

92210B

NUT

92210-1903

$16.39

130

BOLT-FLANGED,8X30

130CA0830

$1.08

130A

BOLT-FLANGED,8X45

130CA0845

$1.22

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$2.15

550

PIN-COTTER,3.0X25

550AA3025

$0.62
