Description

Price

11057

BRACKET

11057-2767

$1.36

11058

BRACKET

11058-2959

$29.25

13070

GUIDE,SEAT,RH

13070-1503

$111.17

13070A

GUIDE,SEAT,LH

13070-1504

$111.85

13168

LEVER,STOP

13168-0883

$14.25

13168A

LEVER,SEAT ADJUST

13168-0884

$11.22

32046

BRACKET-SEAT,RAIL,RH

32046-0507

$55.85

32046A

BRACKET-SEAT,RAIL,LH

32046-0508

$141.74

53007

FRAME-SEAT

53007-0498

$141.57

53045

HOOK-ASSY,SEAT BOTTOM

53045-0039

$25.26

53061

BELT-SEAT,BUCKLE,PASSENGER

53061-0358

$31.80

53061A

BELT-SEAT,BUCKLE,DRIVER

53061-0365

$55.82

53061B

BELT-SEAT,RETRACTOR

53061-0368

$156.61

53066

SEAT-ASSY,BOTTOM,BLACK+GRN

53066-0975-71R

$360.08

53066A

SEAT-ASSY,BACK,GREEN+BLK+SIL

53066-0977-61Z

$501.57

92015

NUT,8MM

92015-1432

$6.57

92022

WASHER,6.5X16X2

92022-1565

$3.92

92043

PIN

92043-0991

$3.04

92122

ROLLER

92122-0564

$1.68

92139

BUSHING

92139-0230

$4.61

92145

SPRING,SEAT LATCH

92145-0022

$7.15

92145A

SPRING,ADJUST LEVER

92145-1858

$8.44

92154

BOLT,FLANGED,10X16

92154-2089

$7.35

92154A

BOLT,ADJUST LEVER

92154-3923

$37.01

92154B

BOLT,FLANGED,6X14

92154-3968

$2.00

92154C

BOLT,FLANGED,10X18

92154-7022

$2.73

92161

DAMPER,SEAT

92161-1489

$3.35

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,12X22

130BA1222

$3.04

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

482

CIRCLIP-TYPE-E,4MM

482J4000

$1.35

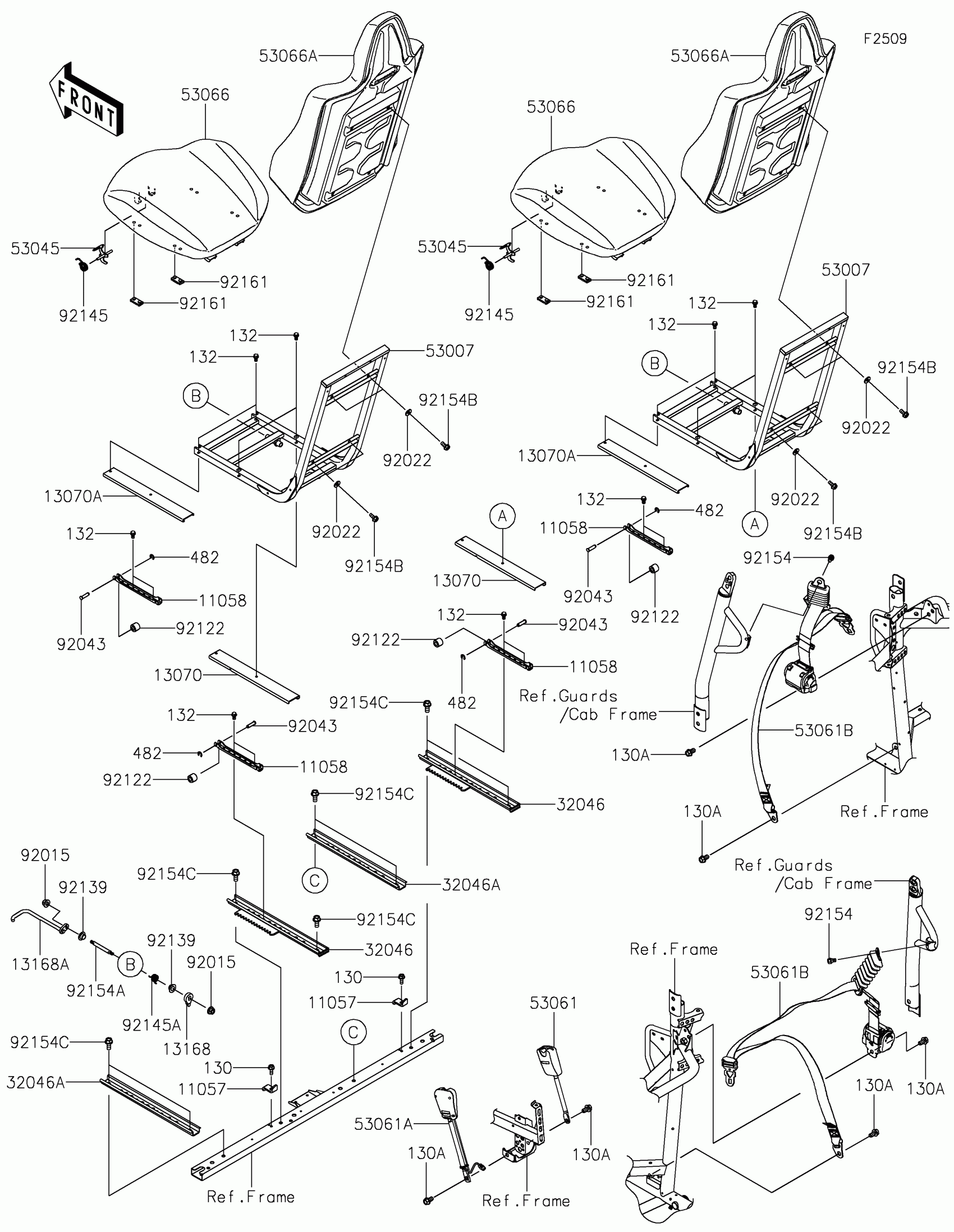

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Seat(Front) Diagram

BRACKET

BRACKET

GUIDE,SEAT,RH

GUIDE,SEAT,LH

LEVER,STOP

LEVER,SEAT ADJUST

BRACKET-SEAT,RAIL,RH

BRACKET-SEAT,RAIL,LH

FRAME-SEAT

HOOK-ASSY,SEAT BOTTOM

BELT-SEAT,BUCKLE,PASSENGER

BELT-SEAT,BUCKLE,DRIVER

BELT-SEAT,RETRACTOR

SEAT-ASSY,BOTTOM,BLACK+GRN

SEAT-ASSY,BACK,GREEN+BLK+SIL

NUT,8MM

WASHER,6.5X16X2

PIN

ROLLER

BUSHING

SPRING,SEAT LATCH

SPRING,ADJUST LEVER

BOLT,FLANGED,10X16

BOLT,ADJUST LEVER

BOLT,FLANGED,6X14

BOLT,FLANGED,10X18

DAMPER,SEAT

BOLT-FLANGED,6X16

BOLT-FLANGED,12X22

BOLT-FLANGED-SMALL,6X10

CIRCLIP-TYPE-E,4MM
