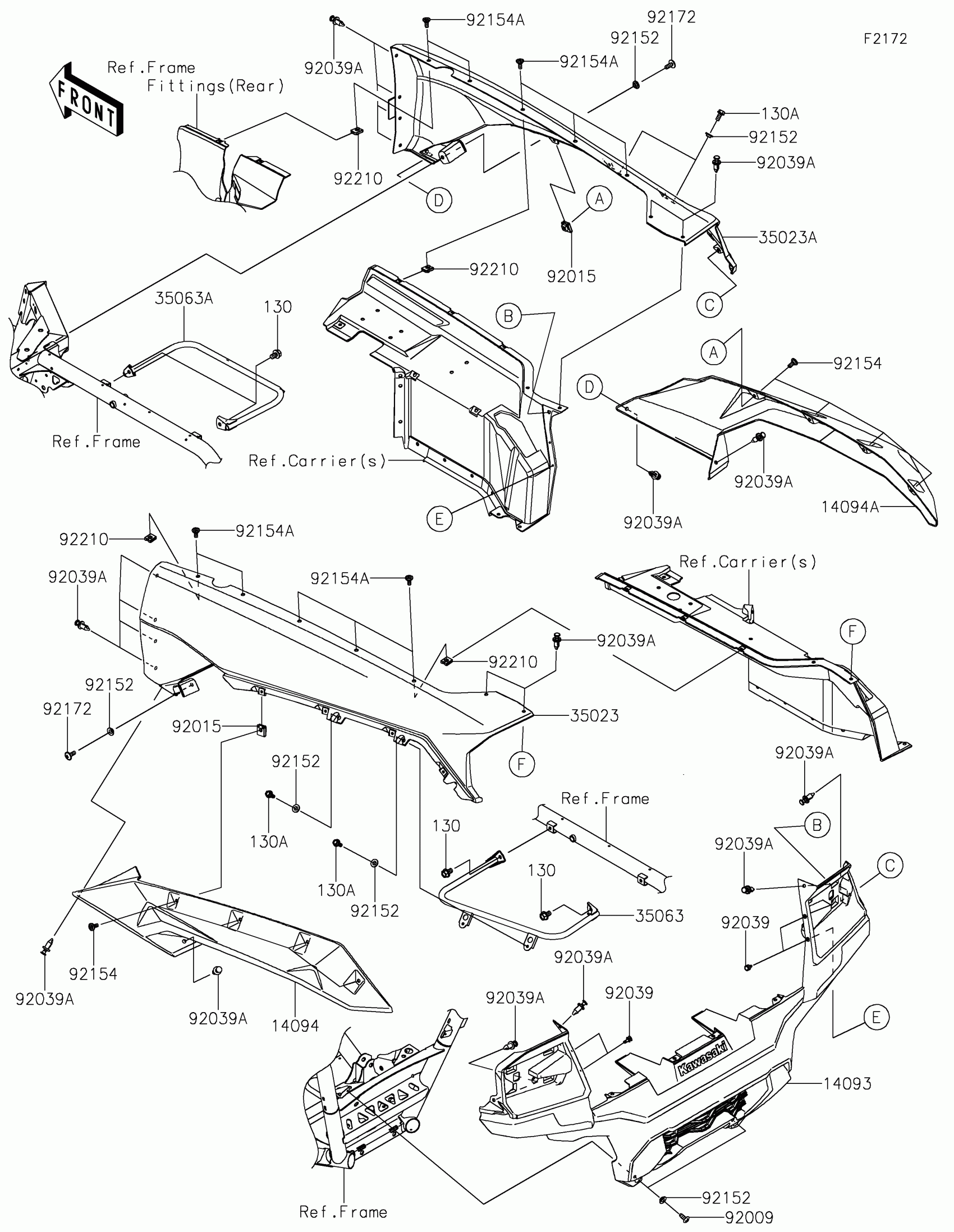

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Rear Fender(s) Diagram

Description

Price

14093

COVER,TAIL

14093-0798

$239.01

14094

COVER,RR FENDER,LH

14094-0231

$243.90

14094A

COVER,RR FENDER,RH

14094-0232

$243.90

35023

FENDER-REAR,LH,L.GREEN

35023-0463-777

$274.05

35023A

FENDER-REAR,RH,L.GREEN

35023-0464-777

$274.05

35063

STAY,LH

35063-1462

$91.57

35063A

STAY,RH

35063-1463

$90.60

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92039

RIVET

92039-0046

$2.98

92039A

RIVET

92039-0776

$0.80

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92154

BOLT

92154-2474

$1.20

92154A

BOLT

92154-3957

$1.66

92172

SCREW,6X16

92172-0236

$0.73

92210

NUT

92210-1125

$3.63

130

BOLT-FLANGED,8X12

130BA0812

$0.79

130A

BOLT-FLANGED,6X14

130CA0614

$3.14
