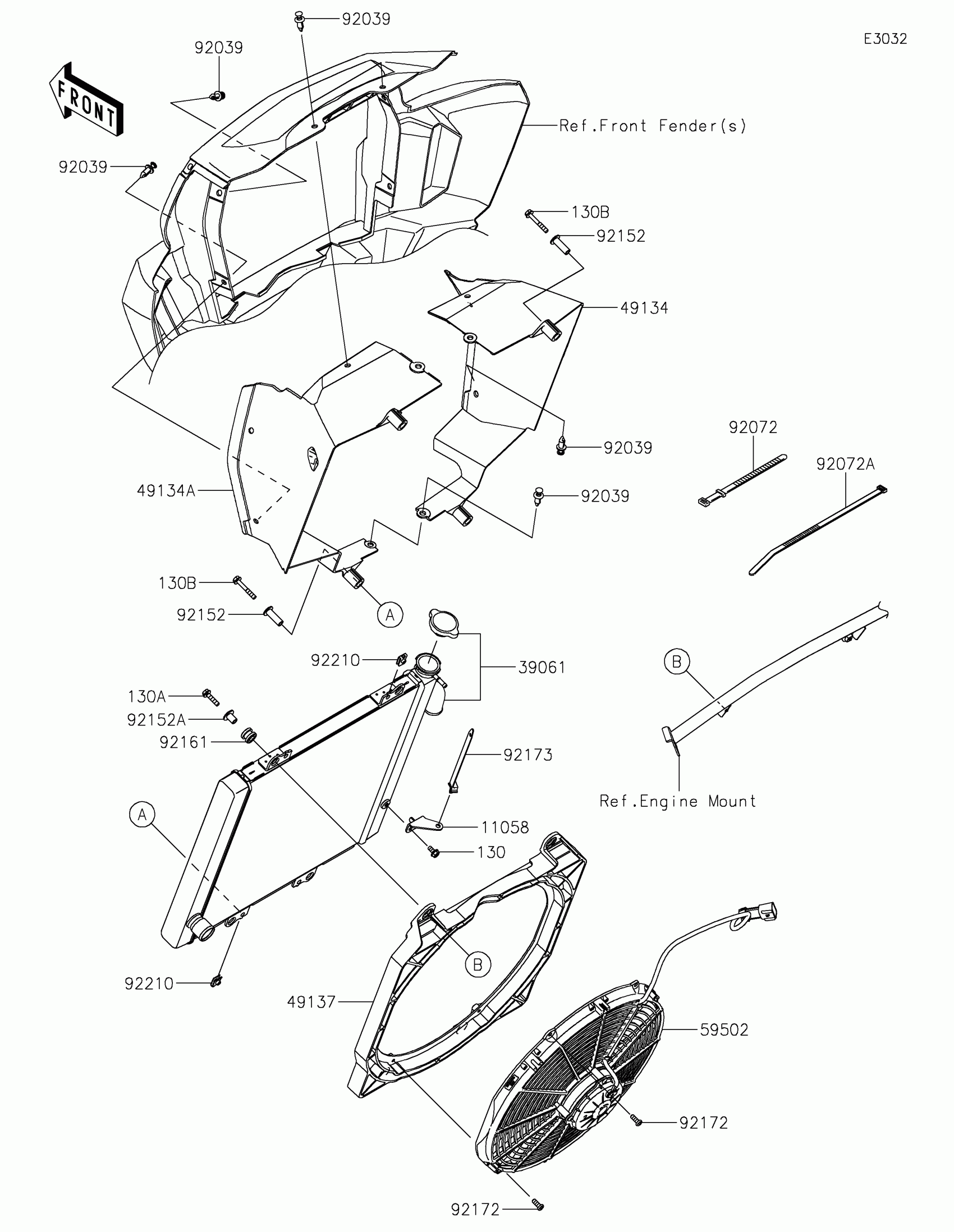

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Radiator Diagram

Description

Price

11058

BRACKET

11058-1983

$6.80

39061

RADIATOR-ASSY,WITH CAP

39061-0957

$739.61

49134

SHROUD,RH

49134-0001

$15.84

49134A

SHROUD,LH

49134-0002

$16.07

49137

SHROUD

49137-0010

$35.39

59502

FAN-ASSY

59502-0656

$219.92

92039

RIVET

92039-0776

$1.19

92072

BAND,L=186

92072-056

$5.00

92072A

BAND,L=292.1

92072-3509

Unavailable

92152

COLLAR

92152-1215

$7.36

92152A

COLLAR

92152-3845

$3.84

92161

DAMPER

92161-2578

$0.64

92172

SCREW,TAPPING,6X16

92172-1607

$1.39

92173

CLAMP

92173-1980

$2.80

92210

NUT

92210-0754

$2.02

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

130B

BOLT-FLANGED,6X40

130BA0640

$1.20
