Description

Price

11057

BRACKET,WINCH

11057-3707

$118.34

13070

GUIDE,FAIRLEAD

13070-1447

$147.04

13272

PLATE,FAIRLEAD

13272-2847

$7.49

26011

WIRE-LEAD,BLUE

26011-1993

$109.39

26011A

WIRE-LEAD,YELLOW

26011-1994

$112.43

26011B

WIRE-LEAD,RED

26011-1995

$29.29

26011C

WIRE-LEAD,BLACK

26011-1996

$43.51

26031

HARNESS,CONTACTOR

26031-2843

$51.22

26031A

HARNESS,REMOTE

26031-3845

$73.27

27010

SWITCH,REMOTE

27010-0820

$129.74

27010A

SWITCH,ON/OFF

27010-0942

$51.74

27034

RELAY,CONTROLLER

27034-0018

$198.30

49006

BOOT

49006-0601

$2.15

53045

HOOK-ASSY

53045-0028

$23.05

54040

WINCH,VRX45-S

54040-0010

$715.07

92022

WASHER,8.2X19X2

92022-1533

$4.85

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072A

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,8X20

92154-1876

$2.19

92154A

BOLT,SOCKET,10X20

92154-1877

$3.12

92154B

BOLT,5X20

92154-1879

$2.36

92200

WASHER,6 LOCK

92200-1776

$0.97

92200A

WASHER,5 LOCK

92200-1777

$0.97

92200B

WASHER

92200-1778

$0.88

92200C

WASHER,6.4X12X1.8

92200-2358

$0.54

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$7.83

92210A

NUT,LOCK,M10

92210-1432

$1.34

92210B

NUT,M6X1.00

92210-1434

$1.90

92210C

NUT,M5X0.80

92210-1435

$1.05

92210D

NUT,6MM

92210-1792

$2.41

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED

130CA1025

$1.35

130B

BOLT-FLANGED,10X40

130CA1040

$2.29

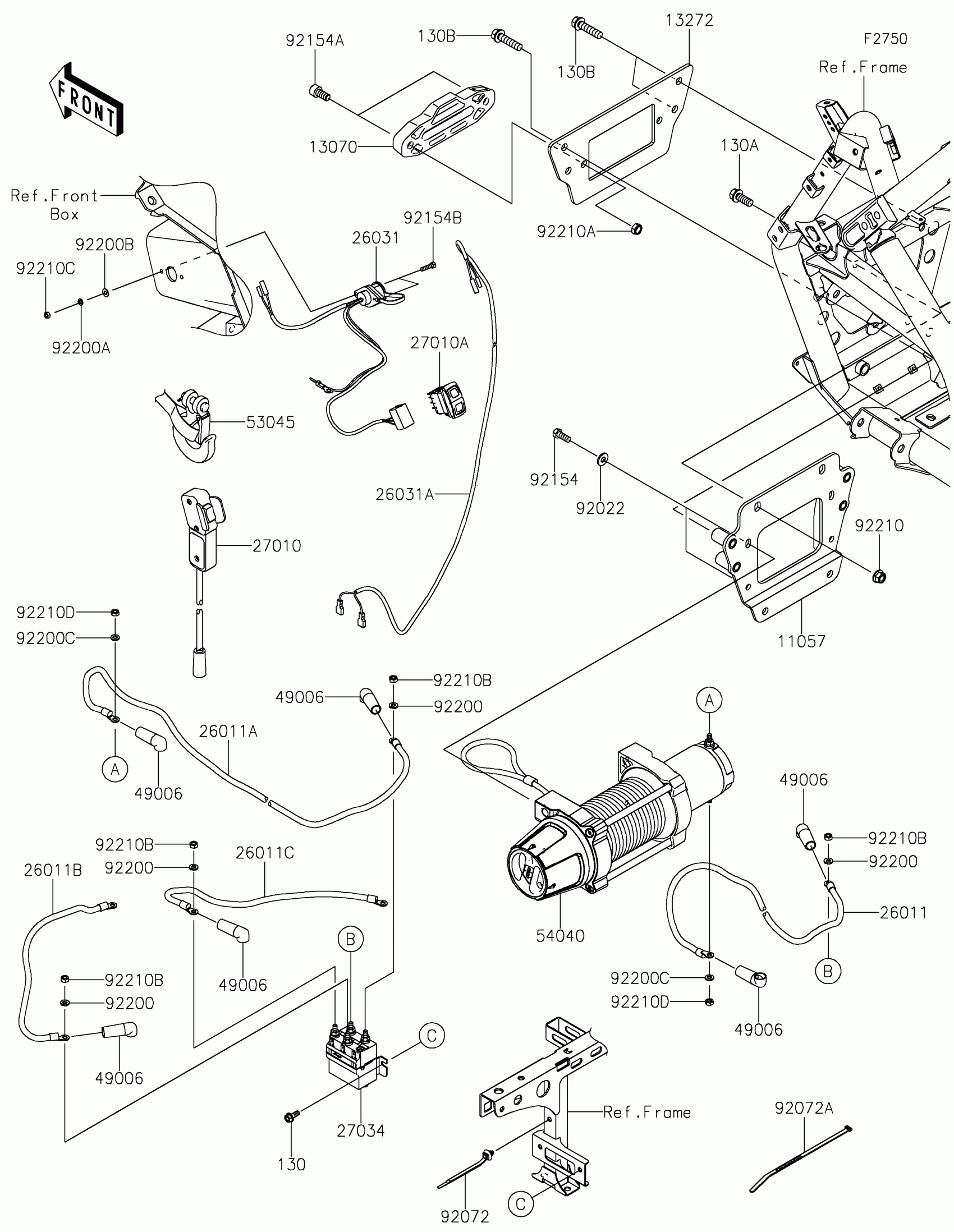

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Other Diagram
