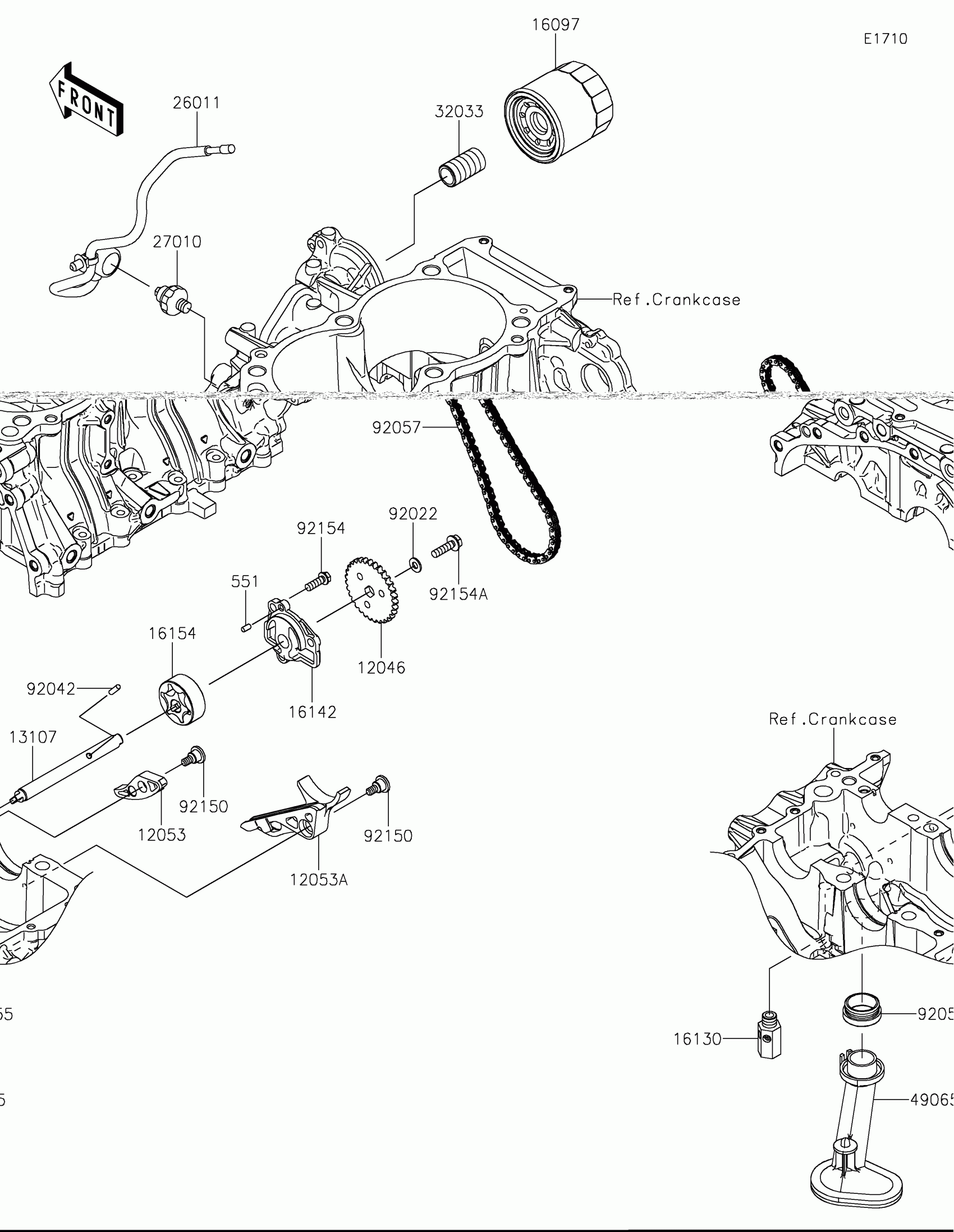

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,31T

12046-0614

$15.16

12053

GUIDE-CHAIN,UPP

12053-0276

$16.57

12053A

GUIDE-CHAIN,LWR

12053-0296

$18.77

13107

SHAFT,OIL PUMP

13107-0896

$28.04

16097

FILTER-ASSY-OIL

16097-0007

$15.48

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-0779

$65.03

16154

ROTOR-PUMP

16154-0788

$65.73

26011

WIRE-LEAD

26011-1985

$32.35

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32033

PIPE,OIL FILTER

32033-1535

$12.96

49065

FILTER-OIL

49065-0050

$39.66

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92042

PIN,DOWEL,4X13.8

92042-030

$3.92

92055

RING-O,OIL FILTER

92055-1503

$9.51

92057

CHAIN,98XRH2010-70M

92057-0765

$38.72

92150

BOLT,6MM

92150-1090

$7.45

92154

BOLT,FLANGED,6X18

92154-0499

$1.63

92154A

BOLT,FLANGED,6X22

92154-1525

$1.71

551

PIN-DOWEL,4X8

551A0408

$0.78
