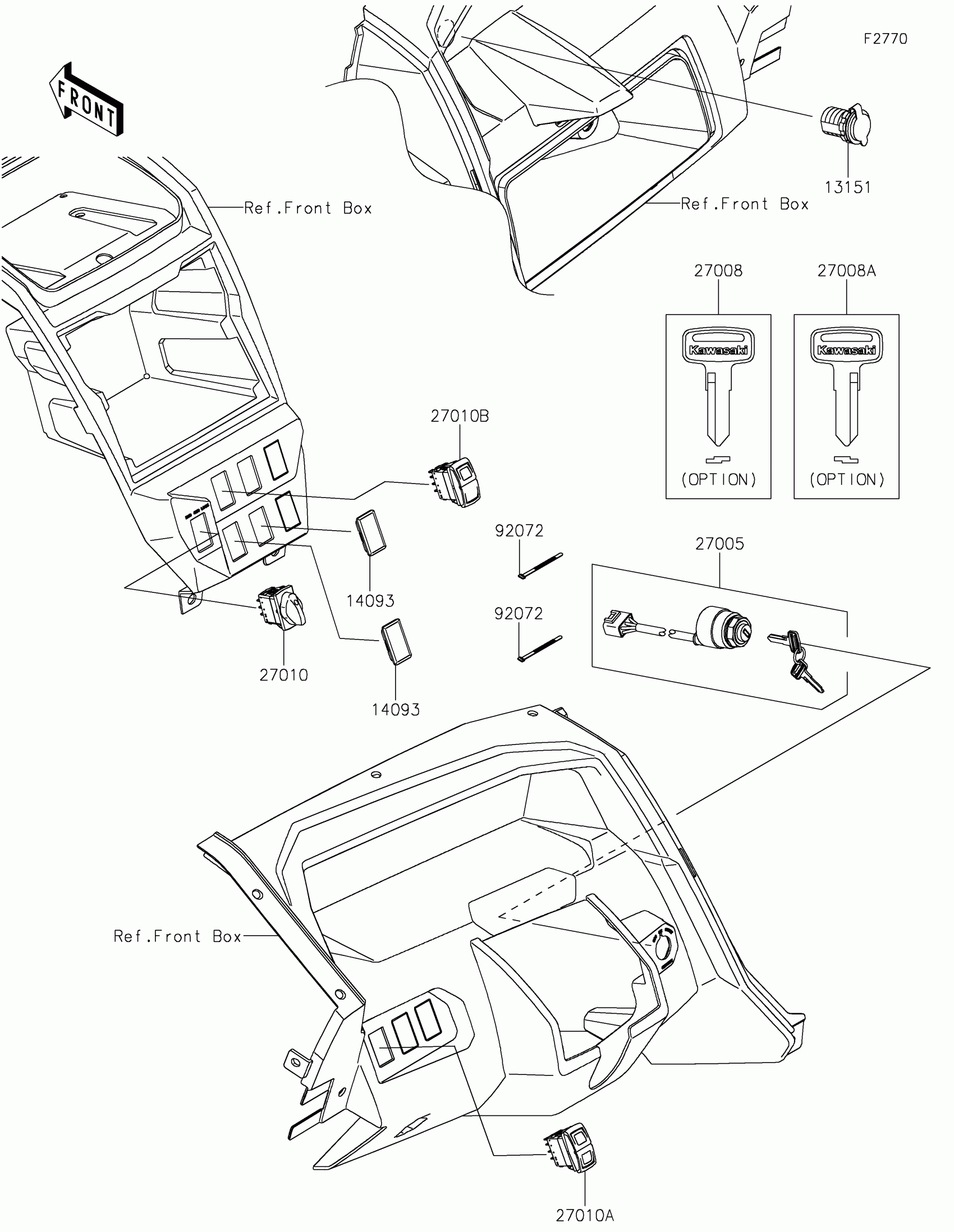

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Ignition Switch Diagram

#

Description
Price

13151

SWITCH-COMP,OUTLET,12V

13151-0556

$11.56

14093

COVER,SWITCH

14093-1202

$1.74

27005

SWITCH-ASSY-IGNITION

27005-0643

$78.13

27008

KEY-LOCK,BLANK

27008-1153

$13.56

27008A

KEY-LOCK,BLANK

27008-1157

$13.56

27010

SWITCH,2WD/4WD

27010-0902

$24.65

27010A

SWITCH,HEAD LIGHT

27010-0903

$69.95

27010B

SWITCH,POWER MODE

27010-0904

$86.09

92072

BAND,L=123

92072-030

$3.81
