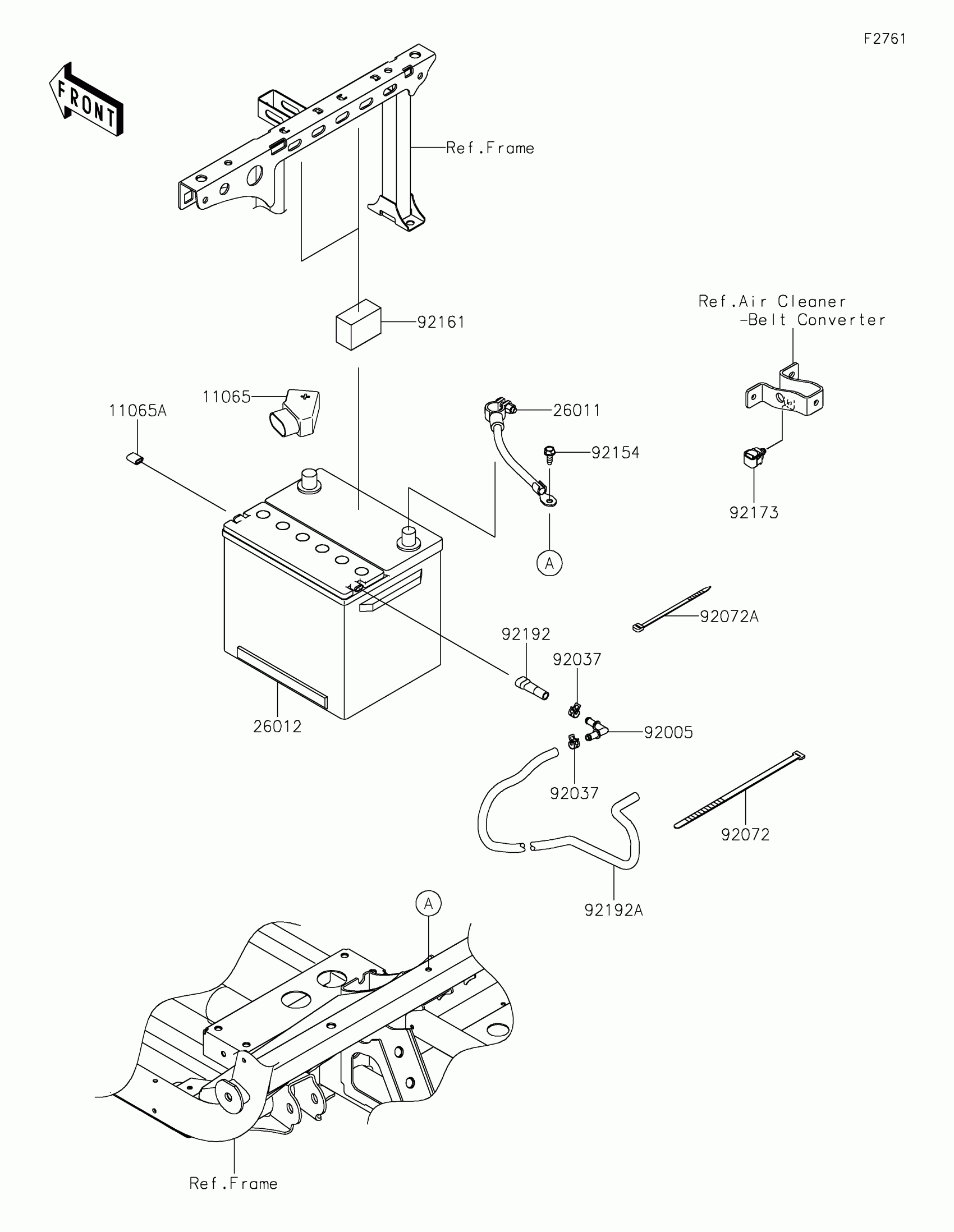

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Battery Diagram

Description

Price

11065

CAP

11065-0850

$3.51

11065A

CAP

11065-1518

$5.56

26011

WIRE-LEAD,BATTERY(-)

26011-1871

$15.14

26012

BATTERY,WET,(26R)

26012-1569

$132.95

92005

FITTING,BREATHER

92005-1581

$4.92

92037

CLAMP,TUBE

92037-1461

$2.93

92072

BAND,L=218

92072-032

$3.81

92072A

BAND,92X2.4

92072-0791

$0.47

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92161

DAMPER,TANK & SEAT FRAME

92161-2288

$5.17

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92192

TUBE,BREATHER

92192-2873

$18.37

92192A

TUBE,BREATHER,7X10X2030

92192-2877

$9.88
