Description

Price

11065

CAP

11065-0751

$1.69

13272

PLATE,CVT COVER

13272-3797

$26.18

13272A

PLATE,SKID,CNT

13272-3963

$96.16

13272B

PLATE,SKID,FR,CNT,LH

13272-4328

$51.83

13272C

PLATE,SKID,FR,CNT,RH

13272-4329

$51.83

13272D

PLATE,SKID,FR,LH

13272-4330

$24.78

13272E

PLATE,SKID,FR,RH

13272-4331

$24.78

13272F

PLATE,DRIVE SHAFT

13272-7108

$21.51

14094

COVER,SKID,CNT

14094-0040

$43.65

14094A

COVER,SKID,RR

14094-0041

$45.16

18018

PLATE-HEAT GUARD

18018-0616

$33.59

18018A

PLATE-HEAT GUARD

18018-0646

$25.79

39043

CROSSMEMBER-COMP,FR,T.BLACK

39043-0033-388

$215.36

39043A

CROSSMEMBER-COMP,RR,T.BLACK

39043-0034-388

$110.29

55047

BAR-COMP,A-PILLAR,LH,T.BLACK

55047-0399-388

$168.60

55047A

BAR-COMP,A-PILLAR,RH,T.BLACK

55047-0400-388

$168.60

55047B

BAR-COMP,B-PILLAR,LH,T.BLACK

55047-0401-388

$85.81

55047C

BAR-COMP,B-PILLAR,RH,T.BLACK

55047-0402-388

$85.81

55047D

BAR-COMP,C-PILLAR,LH,T.BLACK

55047-0403-388

$148.73

55047E

BAR-COMP,C-PILLAR,RH,T.BLACK

55047-0404-388

$148.73

55047F

BAR-COMP,D-PILLAR,LH,T.BLACK

55047-0405-388

$113.67

55047G

BAR-COMP,D-PILLAR,RH,T.BLACK

55047-0406-388

$113.67

56001

MIRROR-ASSY,REARVIEW

56001-0474

$99.11

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,6.5X24X2

92022-1690

$3.92

92022A

WASHER

92022-2247

$0.62

92152

COLLAR

92152-0784

$2.12

92152A

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT,FLANGED,12X55

92154-0836

$10.90

92154A

BOLT,FLANGED,6X12

92154-2922

$1.94

92154B

BOLT,FLANGED,6X10

92154-4159

$1.59

92154C

BOLT,FLANGED,12X45

92154-7076

$9.47

92161

DAMPER,10X85X1

92161-1964

$3.21

92172

SCREW,TAPPING,6X16

92172-0869

$1.48

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

130

BOLT-FLANGED,6X12

130CA0612

$3.96

130A

BOLT-FLANGED,12X25

130CA1225

$7.74

130B

BOLT-FLANGED,12X35

130CA1235

$3.63

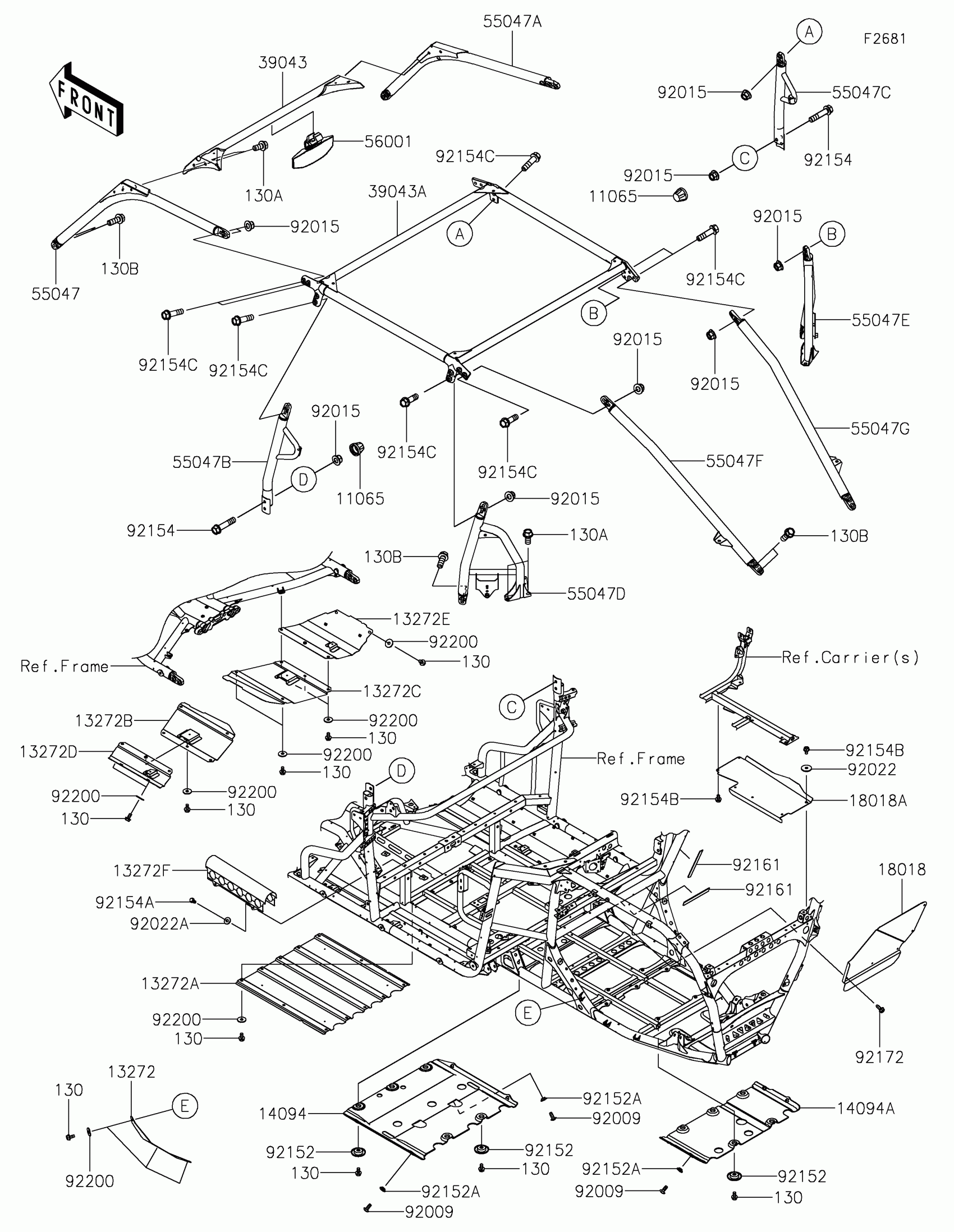

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Guards/Cab Frame Diagram

CAP

PLATE,CVT COVER

PLATE,SKID,CNT

PLATE,SKID,FR,CNT,LH

PLATE,SKID,FR,CNT,RH

PLATE,SKID,FR,LH

PLATE,SKID,FR,RH

PLATE,DRIVE SHAFT

COVER,SKID,CNT

COVER,SKID,RR

PLATE-HEAT GUARD

PLATE-HEAT GUARD

CROSSMEMBER-COMP,FR,T.BLACK

CROSSMEMBER-COMP,RR,T.BLACK

BAR-COMP,A-PILLAR,LH,T.BLACK

BAR-COMP,A-PILLAR,RH,T.BLACK

BAR-COMP,B-PILLAR,LH,T.BLACK

BAR-COMP,B-PILLAR,RH,T.BLACK

BAR-COMP,C-PILLAR,LH,T.BLACK

BAR-COMP,C-PILLAR,RH,T.BLACK

BAR-COMP,D-PILLAR,LH,T.BLACK

BAR-COMP,D-PILLAR,RH,T.BLACK

MIRROR-ASSY,REARVIEW

SCREW,TAPPING,6X16

NUT,LOCK,FLANGED,12MM

WASHER,6.5X24X2

WASHER

COLLAR

COLLAR,6.3X9.5X4.1

BOLT,FLANGED,12X55

BOLT,FLANGED,6X12

BOLT,FLANGED,6X10

BOLT,FLANGED,12X45

DAMPER,10X85X1

SCREW,TAPPING,6X16

WASHER,6.5X20X1.6

BOLT-FLANGED,6X12

BOLT-FLANGED,12X25

BOLT-FLANGED,12X35
