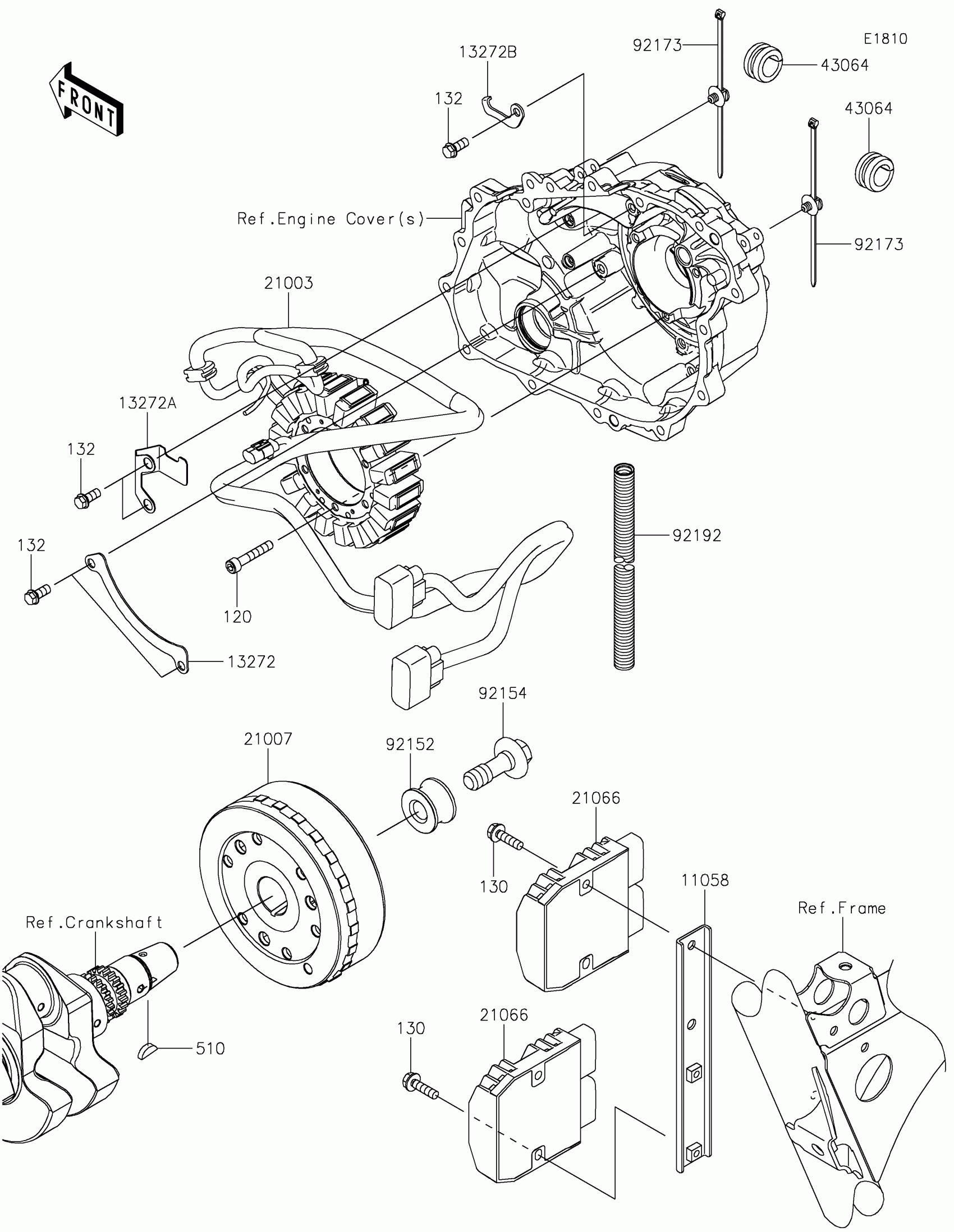

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Generator Diagram

Description

Price

11058

BRACKET

11058-1382

$2.87

13272

PLATE,LEAD WIRE

13272-4318

$2.36

13272A

PLATE,LEAD WIRE

13272-7132

$4.78

13272B

PLATE,LEAD WIRE

13272-7133

$2.70

21003

STATOR

21003-0228

$670.34

21007

ROTOR

21007-0738

$814.86

21066

REGULATOR-VOLTAGE

21066-0771

$339.14

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

92152

COLLAR

92152-3816

$12.21

92154

BOLT

92154-7265

$27.21

92173

CLAMP

92173-2792

$1.88

92192

TUBE,CONVOLUTED,10.7X14.1X140

92192-2521

$9.37

120

BOLT-SOCKET,6X35

120CA0635

$2.06

130

BOLT-FLANGED,6X22

130BA0622

$1.29

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

510

KEY-WOODRUFF

510A4200

$2.96
