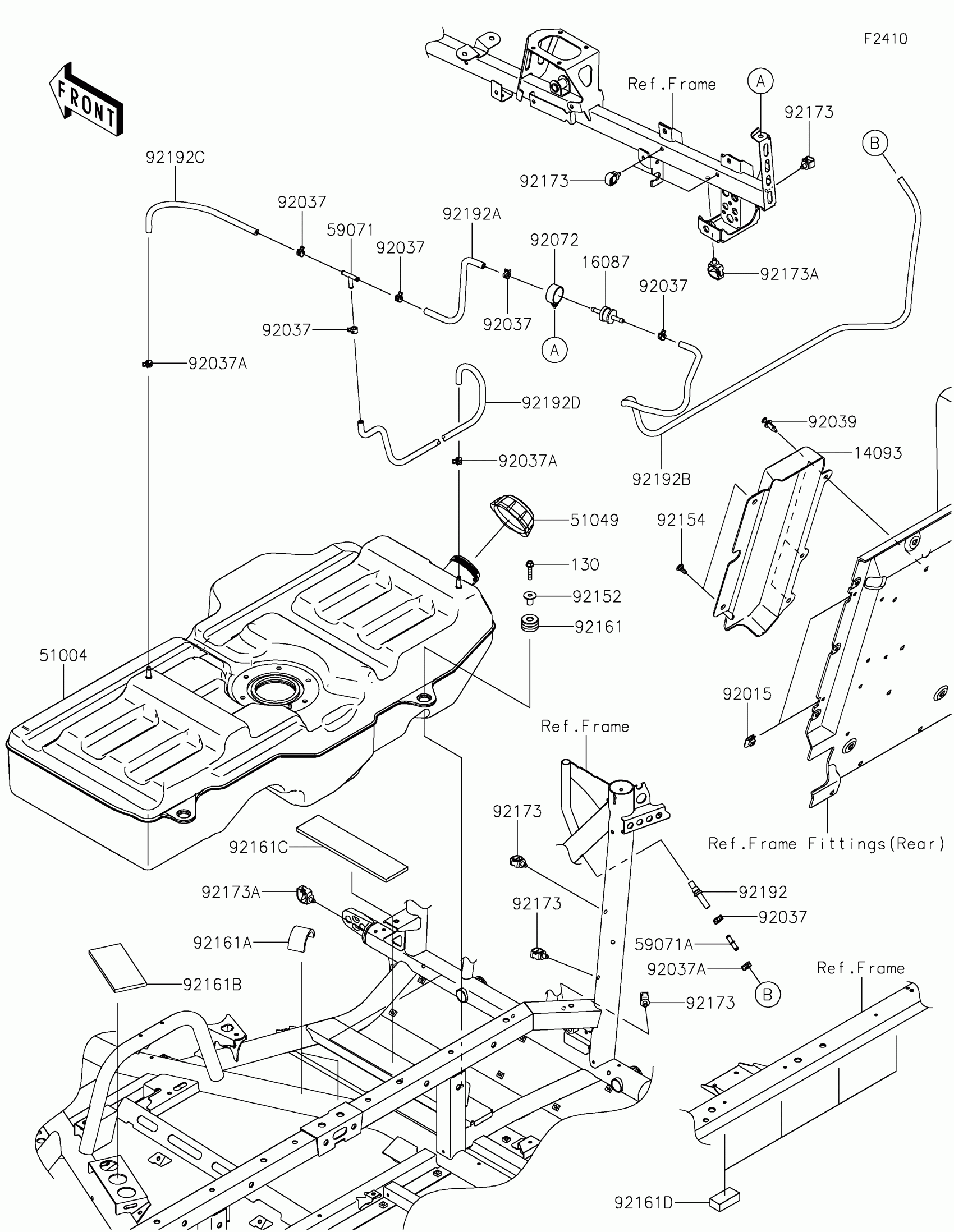

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Fuel Tank(CN,US) Diagram

Description

Price

14093

COVER,BREATHER PIPE

14093-0987

$12.16

16087

VALVE-CHECK

16087-0008

$37.65

51004

TANK-FUEL

51004-0044

$436.88

51049

CAP-TANK,FUEL

51049-0718

$64.67

59071

JOINT

59071-3705

$4.91

59071A

JOINT

59071-3717

$3.55

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-2113

$1.03

92039

RIVET

92039-0776

$1.19

92072

BAND

92072-0850

$4.99

92152

COLLAR,6.8X10X18.1

92152-1867

$5.23

92154

BOLT

92154-3957

$2.32

92161

DAMPER,TANK

92161-2178

$1.17

92161A

DAMPER,TANK FRAME PIPE

92161-2179

$1.73

92161B

DAMPER,TANK LH LOWER

92161-2180

$4.09

92161C

DAMPER,TANK LOWER

92161-2253

$10.97

92161D

DAMPER,TANK & SEAT FRAME

92161-2275

$3.41

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92192

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.90

92192A

TUBE,5X10X245.4

92192-2567

$6.01

92192B

TUBE,5X10X1319.4

92192-2568

$25.49

92192C

TUBE,5X10X280

92192-2569

$4.60

92192D

TUBE,5X10X785

92192-2570

$11.95

130

BOLT-FLANGED,6X30

130BA0630

$1.46
