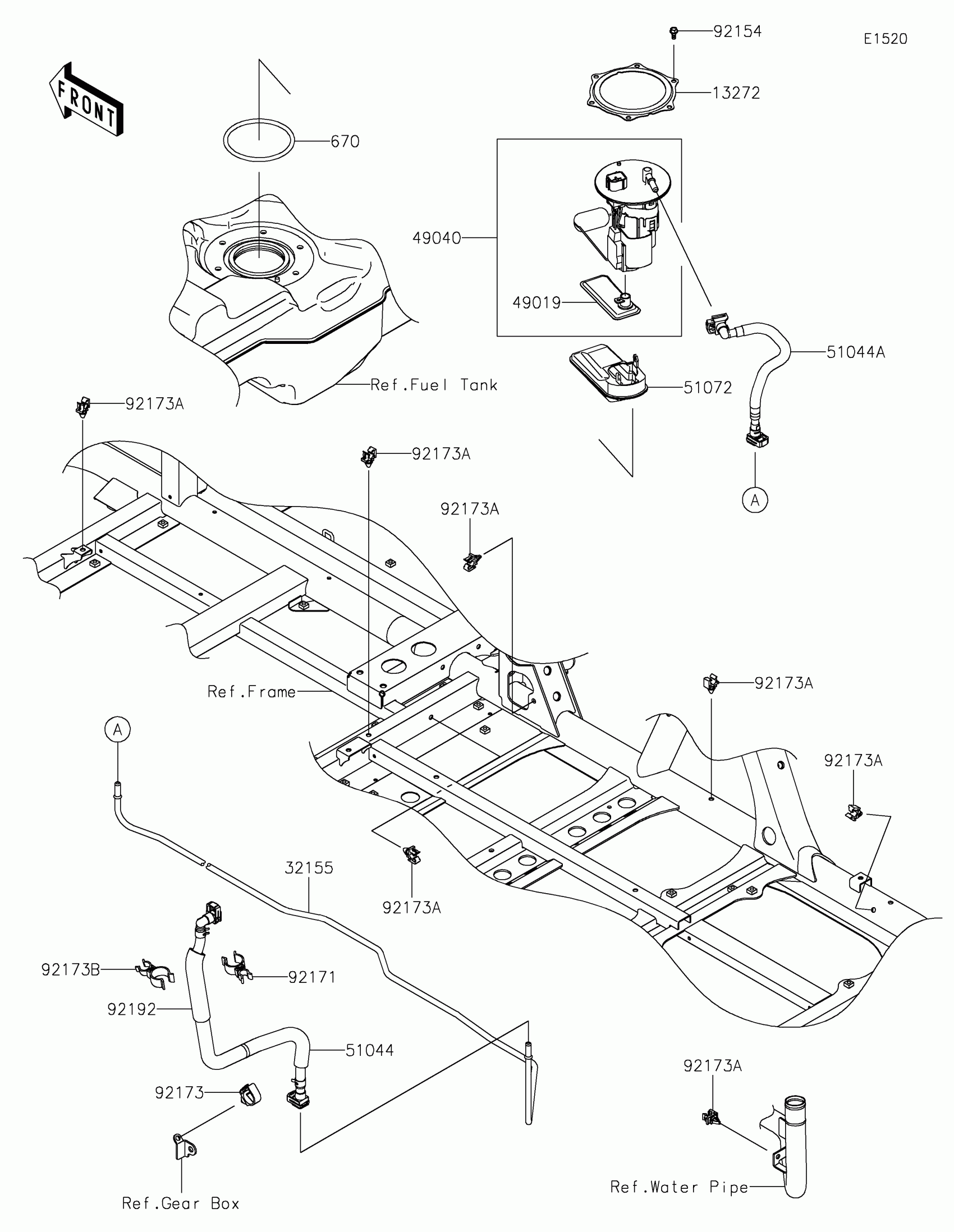

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Fuel Pump Diagram

Description

Price

13272

PLATE

13272-2500

$4.98

32155

PIPE,FUEL

32155-7057

$83.46

49019

FILTER-FUEL

49019-0034

$25.74

49040

PUMP-FUEL

49040-0782

$842.80

51044

TUBE-ASSY,PIPE-ENGINE

51044-0944

$260.98

51044A

TUBE-ASSY,FUEL PUMP-PIPE

51044-0992

$77.52

51072

CHAMBER-FUEL

51072-0008

$5.96

92154

BOLT,FUEL PUMP

92154-1326

$0.81

92171

CLAMP

92171-0762

$4.34

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP,FUEL PIPE

92173-1213

$1.32

92173B

CLAMP,CLIP

92173-2286

$4.68

92192

TUBE,CORRUGATED,19.5X23.8X120

92192-2335

$3.29

670

O RING

670E5090

$27.18
