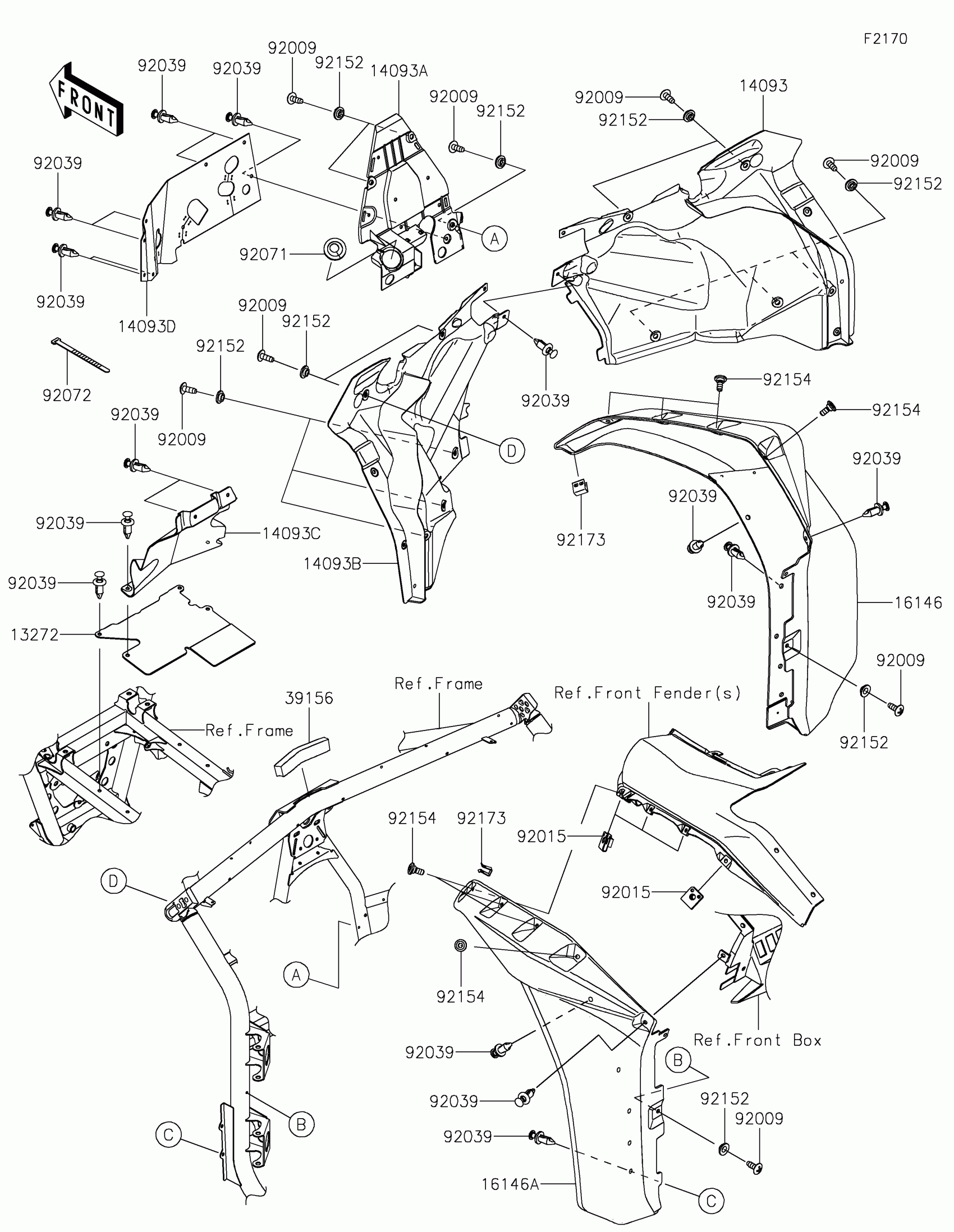

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Fenders Diagram

Description

Price

13272

PLATE,FR FRAME

13272-4336

$12.18

14093

COVER,FLOOR UPP,RH

14093-0822

$38.18

14093A

COVER,FLOOR UPP,CNT

14093-0823

$14.15

14093B

COVER,FLOOR UPP,LH

14093-0824

$43.49

14093C

COVER,WINDBREAK

14093-1390

$128.49

14093D

COVER,RUBBER

14093-1455

$8.05

16146

COVER,FR FENDER,RH

16146-0877

$428.97

16146A

COVER,FR FENDER,LH

16146-0878

$428.97

39156

PAD,20X170X30

39156-2436

$6.66

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92039

RIVET

92039-0776

$1.19

92071

GROMMET

92071-0830

$1.48

92072

BAND,L=123

92072-030

$5.00

92152

COLLAR,6.3X9.5X4.1

92152-1571

$6.00

92154

BOLT

92154-2474

$1.59

92173

CLAMP

92173-2249

$3.52
