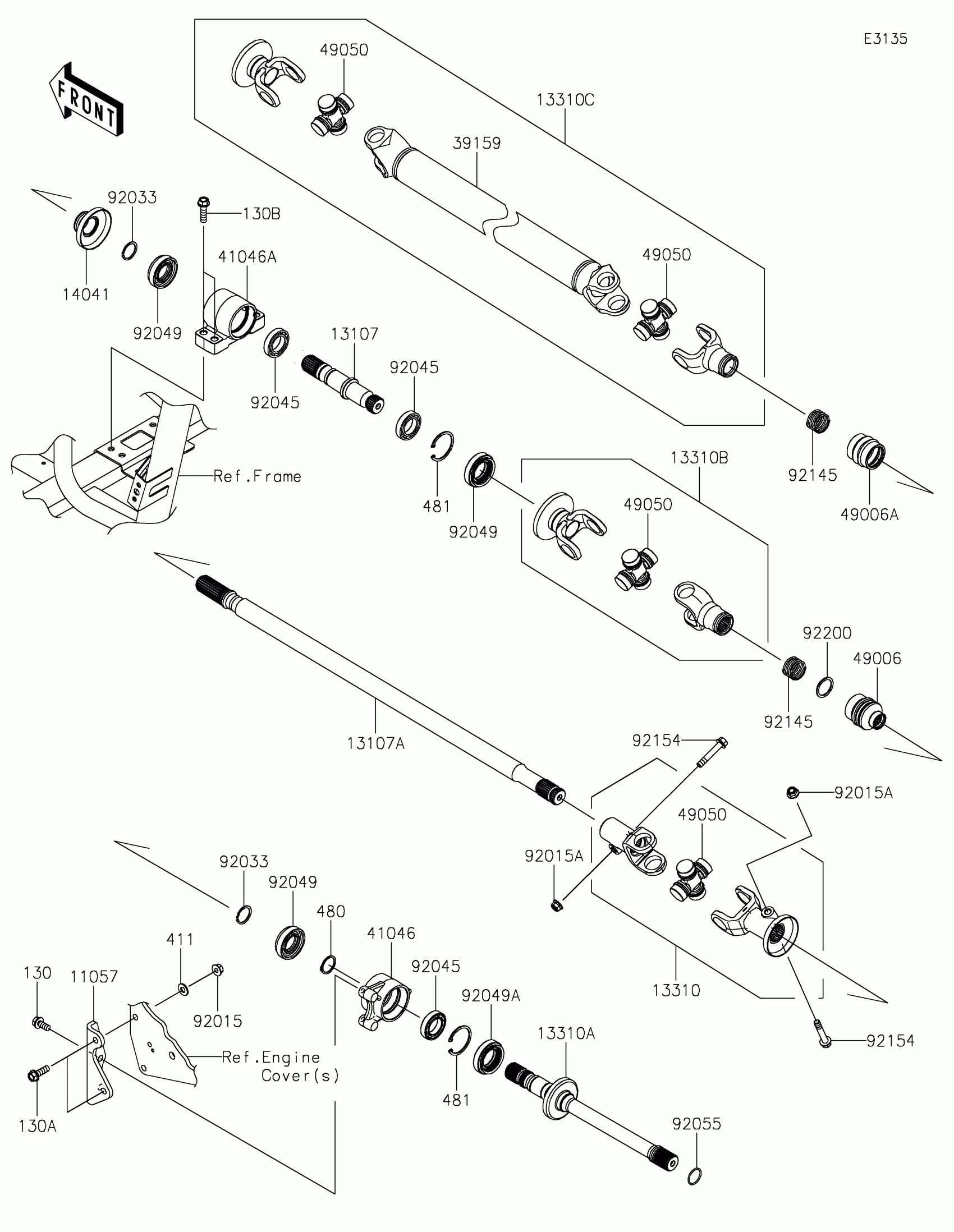

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Drive Shaft-Propeller Diagram

Description

Price

11057

BRACKET,BEARING-COMP

11057-2804

$34.29

13107

SHAFT

13107-0953

$123.65

13107A

SHAFT,CENTER

13107-0954

$395.68

13310

SHAFT-ASSY,REAR GEAR SIDE

13310-0045

$139.69

13310A

SHAFT-ASSY

13310-0046

$78.11

13310B

SHAFT-ASSY,BEARING SIDE

13310-0050

$139.69

13310C

SHAFT-ASSY

13310-0583

$515.31

14041

COVER-COMP

14041-0631

$8.36

39159

SHAFT-DRIVE

39159-0588

$275.58

41046

HOUSING-BEARING

41046-0037

$109.00

41046A

HOUSING-BEARING

41046-0039

$116.54

49006

BOOT,GEAR ASSY SIDE

49006-0108

$6.54

49006A

BOOT

49006-0646

$3.33

49050

SPIDER

49050-0034

$110.37

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,8MM

92015-1432

$6.57

92033

RING-SNAP,25MM

92033-1172

$5.08

92045

BEARING-BALL,#6905

92045-036

$27.88

92049

SEAL-OIL,TC9Y 25X48X10X17.2

92049-0817

$12.51

92049A

SEAL-OIL,TC9Y 28X50X10X17.2

92049-0818

$12.51

92055

RING-O,22.1X1.9

92055-1617

$2.67

92145

SPRING

92145-1838

$4.33

92154

BOLT,FLANGED,8X46

92154-1365

$2.49

92200

WASHER,25X31X1.5

92200-0600

$3.74

130

BOLT-FLANGED,8X18

130BA0818

$2.55

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

130B

BOLT-FLANGED,8X30

130BA0830

$1.98

411

WASHER-PLAIN,8MM

411AA0800

$0.96

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

481

CIRCLIP-TYPE-C,42MM

481J4200

$6.16
