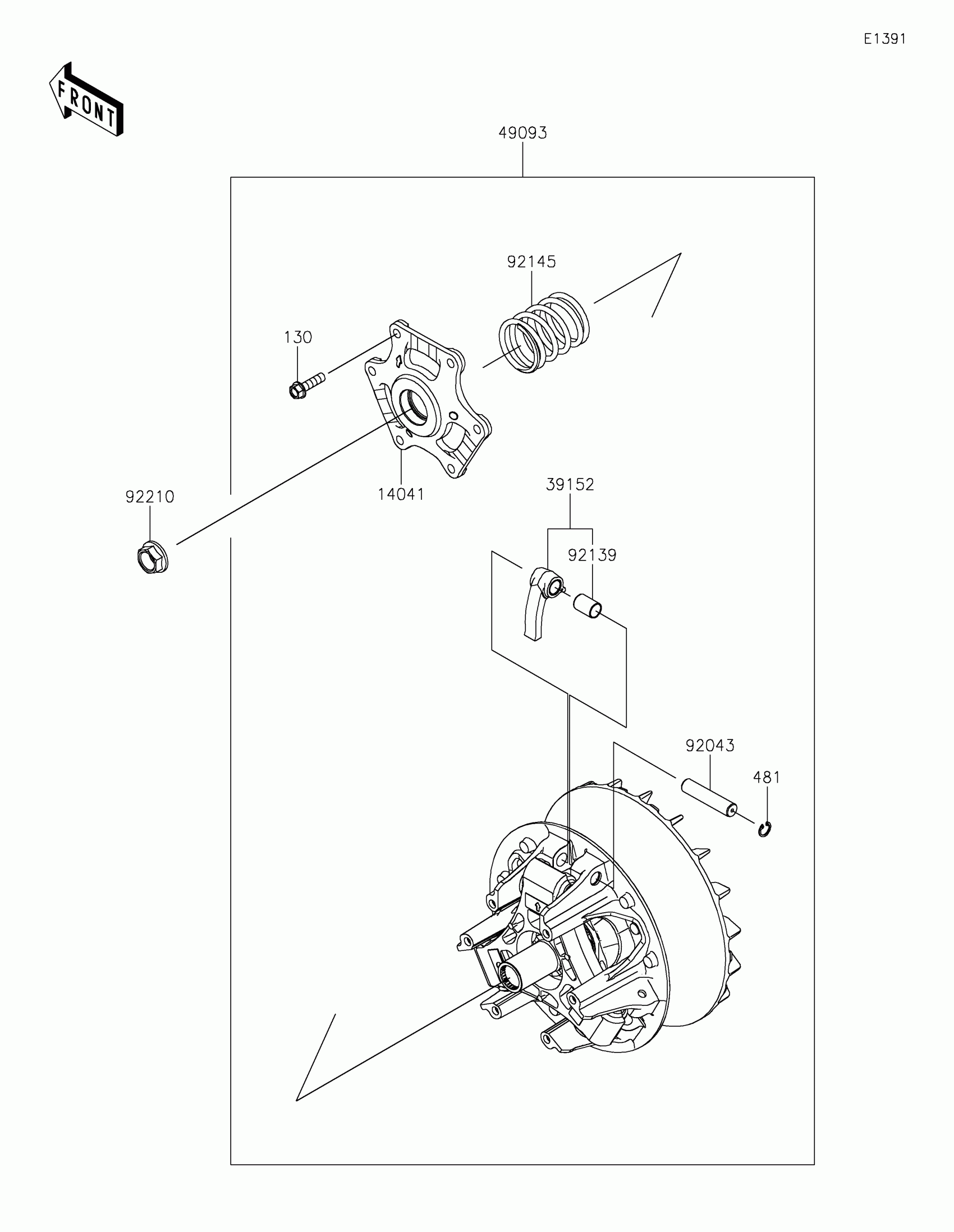

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Drive Converter Diagram

#

Description
Price

14041

COVER-COMP

14041-0647

$114.90

39152

WEIGHT-RAMP

39152-0108

$132.85

49093

CONVERTER-ASSY-DRIVE

49093-0117

$1,120.83

92043

PIN

92043-1811

$14.90

92139

BUSHING

92139-0933

$5.69

92145

SPRING

92145-1855

$17.50

92210

NUT,20MM

92210-1753

$13.83

130

BOLT-FLANGED,8X30

130CA0830

$0.86

481

CIRCLIP-TYPE-C

481J1400

$1.27
