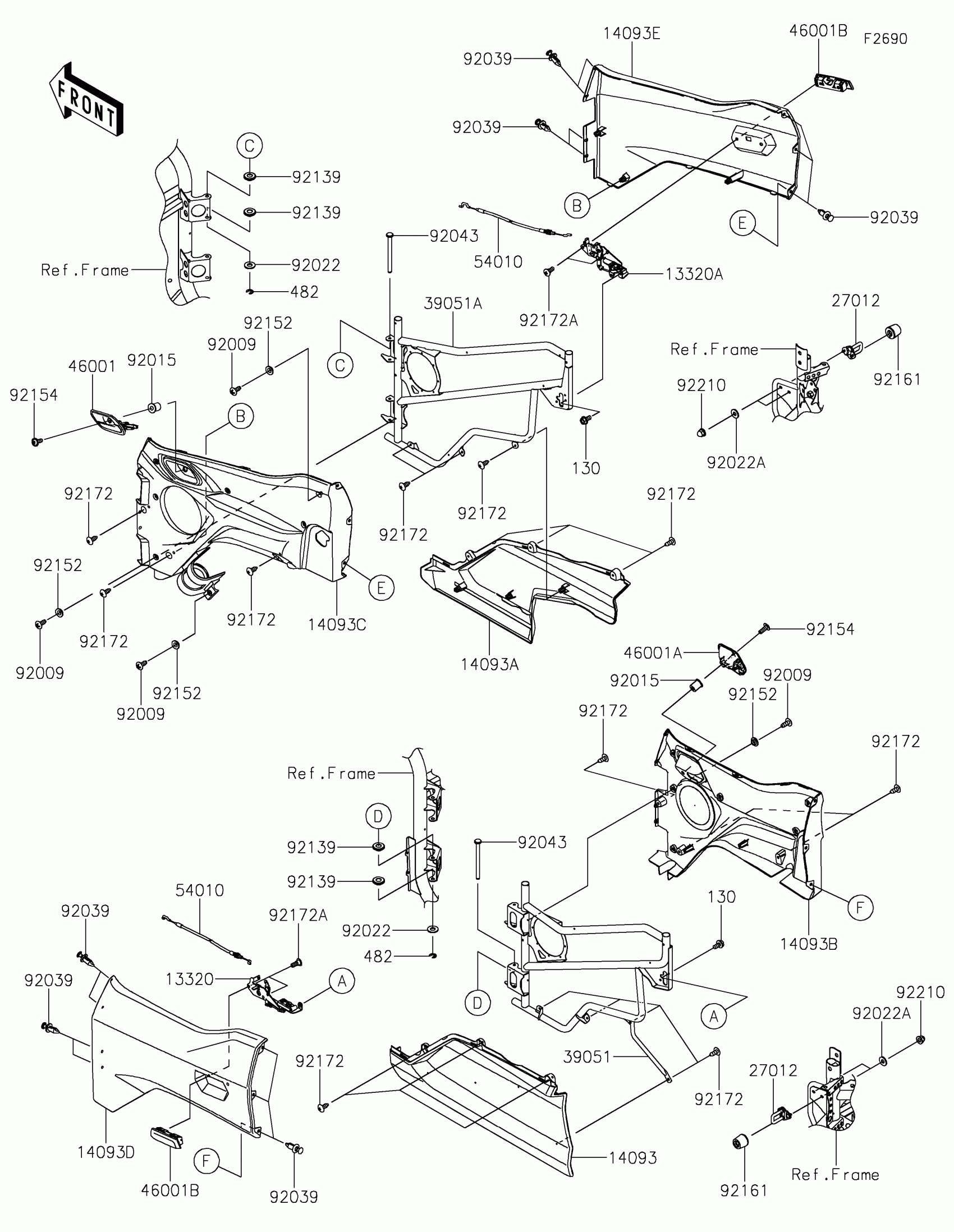

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Door(Front) Diagram
#
Description
Price
13320
LEVER-ASSY,LATCH,LH
13320-0048
$82.58
13320A
LEVER-ASSY,LATCH,RH
13320-0049
$82.58
14093
COVER,DOOR,LH,LWR
14093-0816
$114.22
14093A
COVER,DOOR,RH,LWR
14093-0817
$114.22
14093B
COVER,DOOR,LH,INNER
14093-0851
$175.55
14093C
COVER,DOOR,RH,INNER
14093-0852
$175.55
14093D
COVER,DOOR,LH,UPP,EBONY
14093-0922-H8
$152.92
14093E
COVER,DOOR,RH,UPP,EBONY
14093-0923-H8
$152.92
27012
HOOK,DOOR
27012-0860
$8.54
39051
FRAME-COMP-SIDE,LH
39051-0023
$192.50
39051A
FRAME-COMP-SIDE,RH
39051-0024
$192.50
46001
HANDLE-ASSY,DOOR,RH,INNER
46001-0015
$41.51
46001A
HANDLE-ASSY,DOOR,LH,INNER
46001-0016
$41.51
46001B
HANDLE-ASSY,DOOR,OUTER
46001-0017
$28.37
54010
CABLE
54010-0651
$18.47
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92015
NUT
92015-1700
$8.58
92022
WASHER,8.2X18X1.5
92022-1964
$4.18
92022A
WASHER
92022-2247
$0.62
92039
RIVET
92039-0776
$1.19
92043
PIN,DOOR
92043-1784
$8.68
92139
BUSHING,DOOR
92139-1215
$0.64
92152
COLLAR,6.3X9.5X4.1
92152-1571
$6.00
92154
BOLT,SOCKET,6X16
92154-4068
$2.32
92161
DAMPER,9X28X24.3
92161-1456
$3.71
92172
SCREW,6X16
92172-0284
$1.34
92172A
SCREW,6X16
92172-1333
$2.32
92210
NUT,CAP,6MM
92210-0003
$0.64
130
BOLT-FLANGED,6X12
130CA0612
$3.96
482
CIRCLIP-TYPE-E,6MM
482J6000
$0.69
