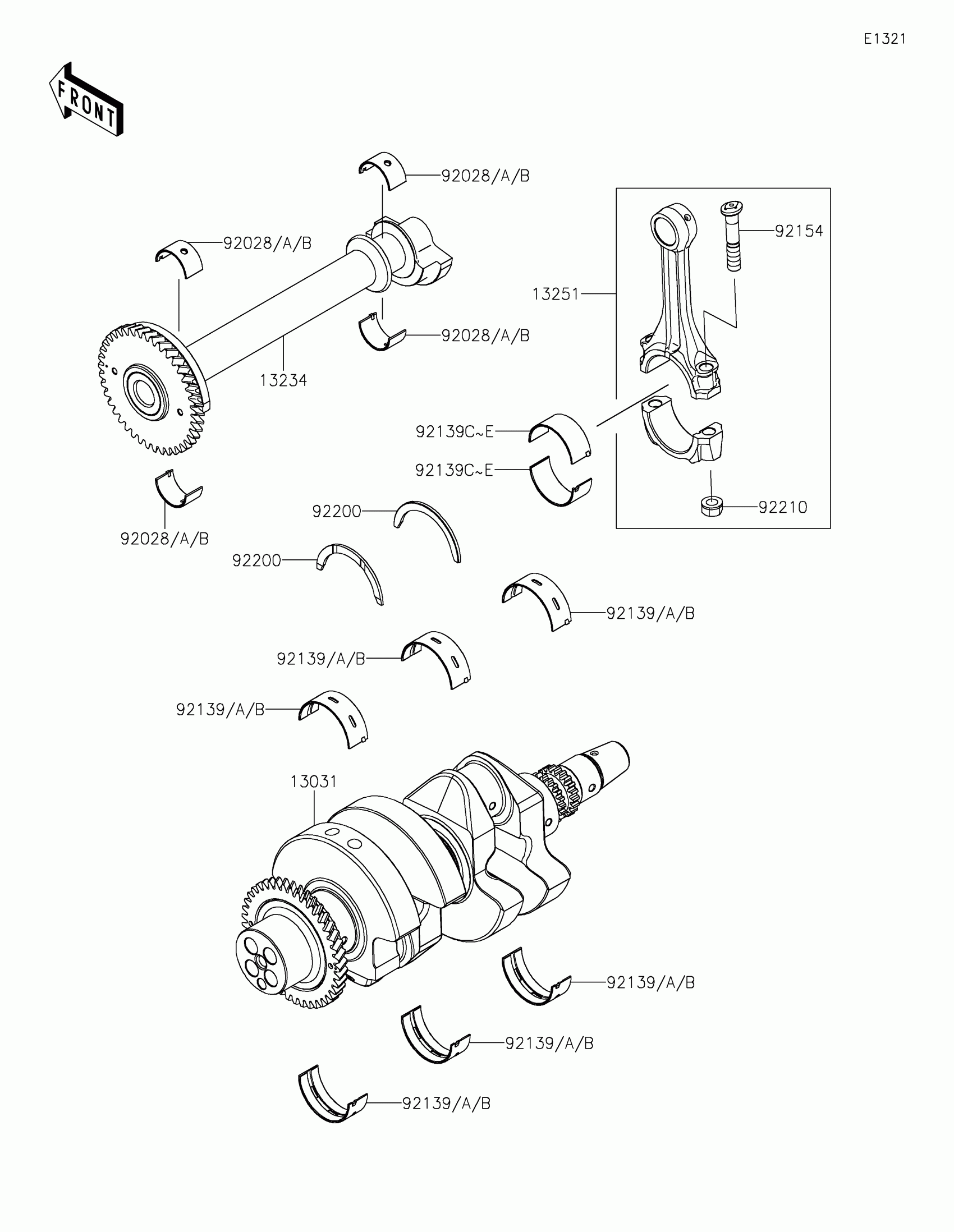

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Crankshaft Diagram

Description

Price

13031

CRANKSHAFT-COMP

13031-1554

$1,335.17

13234

SHAFT-COMP,BALANCER

13234-0611

$381.90

13251

ROD-ASSY-CONNECTING,J

13251-0749-JJ

$250.52

92028

BUSHING,BALANCER SHAFT,BLUE

92028-1909

$18.26

92028A

BUSHING,BALANCER SHAFT,BLACK

92028-1910

Unavailable

92028B

BUSHING,BALANCER SHAFT,BROWN

92028-1911

Unavailable

92139

BUSHING,CRANKSHAFT,BLUE

92139-0925

$21.15

92139A

BUSHING,CRANKSHAFT,BLACK

92139-0926

Unavailable

92139B

BUSHING,CRANKSHAFT,BROWN

92139-0927

Unavailable

92139C

BUSHING,CONNECTING ROD,YELLOW

92139-0968

$24.71

92139D

BUSHING,CONNECTING ROD,GREEN

92139-0969

Unavailable

92139E

BUSHING,CONNECTING ROD,PURPLE

92139-0970

Unavailable

92154

BOLT,CONNECTING ROD

92154-3911

$10.21

92200

WASHER,THRUST,T=2.5

92200-2242

$10.44

92210

NUT,FLANGED,9MM

92210-1673

$2.32
