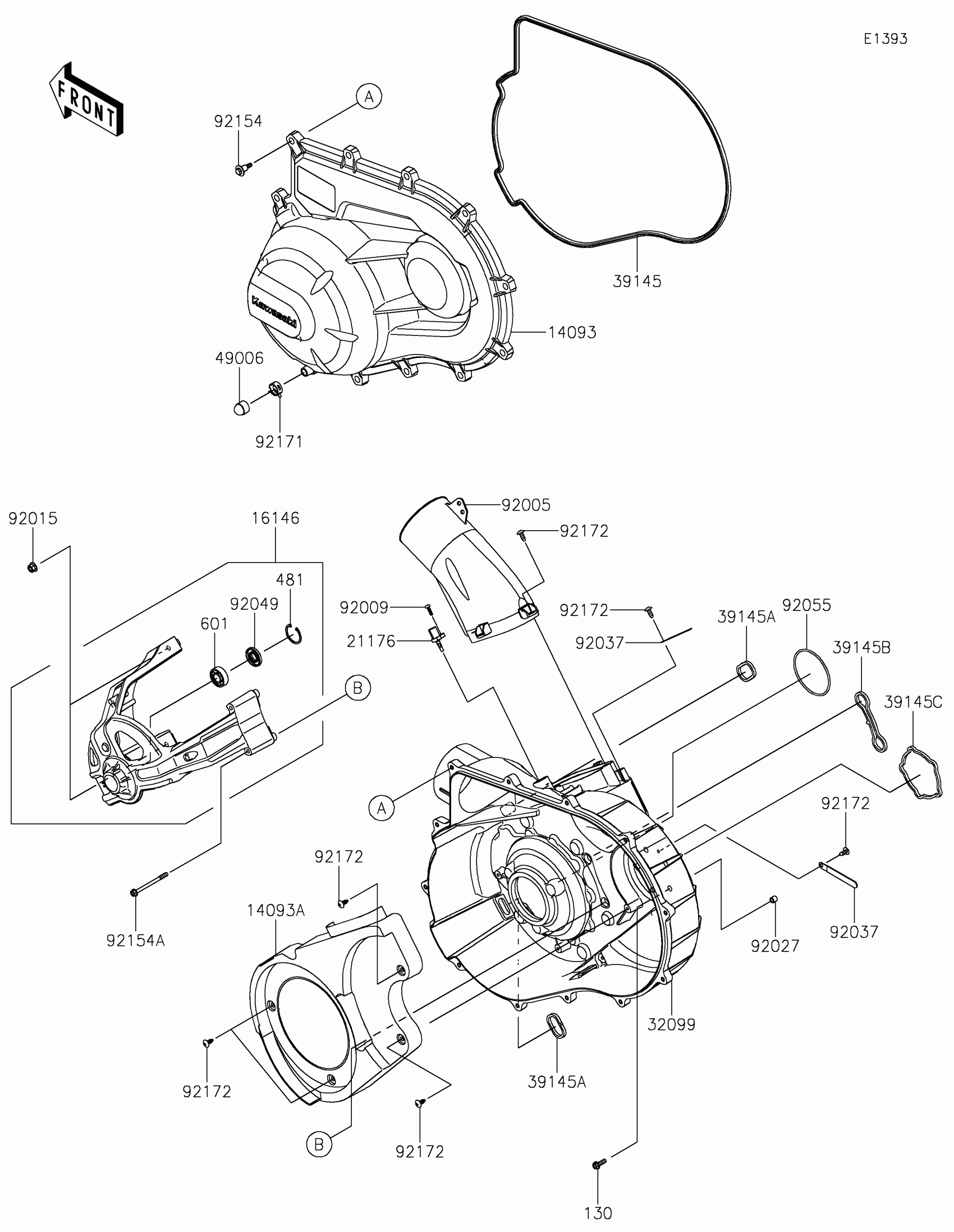

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Converter Cover Diagram

Description

Price

14093

COVER,CVT

14093-0774

$207.75

14093A

COVER

14093-0775

$42.96

16146

COVER-ASSY

16146-0840

$113.94

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

32099

CASE,CVT

32099-0795

$297.16

39145

TRIM-SEAL,CVT COVER

39145-0711

$46.93

39145A

TRIM-SEAL

39145-0712

$2.55

39145B

TRIM-SEAL

39145-0713

$4.76

39145C

TRIM-SEAL

39145-0714

$7.95

49006

BOOT,DRAIN

49006-3718

$6.62

92005

FITTING

92005-0978

$30.35

92009

SCREW,TAPPING,5X16

92009-1264

$3.13

92015

NUT,FLANGED,LOCK,8MM

92015-1668

$4.69

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92037

CLAMP

92037-1993

$5.52

92049

SEAL-OIL,TC 15X35X6

92049-0816

$10.37

92055

RING-O,84.4X3.1

92055-0916

$4.67

92154

BOLT,CVT COVER

92154-1522

$3.26

92154A

BOLT,6X80

92154-3862

$3.54

92171

CLAMP

92171-0329

$8.89

92172

SCREW,6X16

92172-0284

$1.34

130

BOLT-FLANGED,6X20

130BA0620

$1.74

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

BEARING-BALL,#6202C3

601B6202

$8.64
