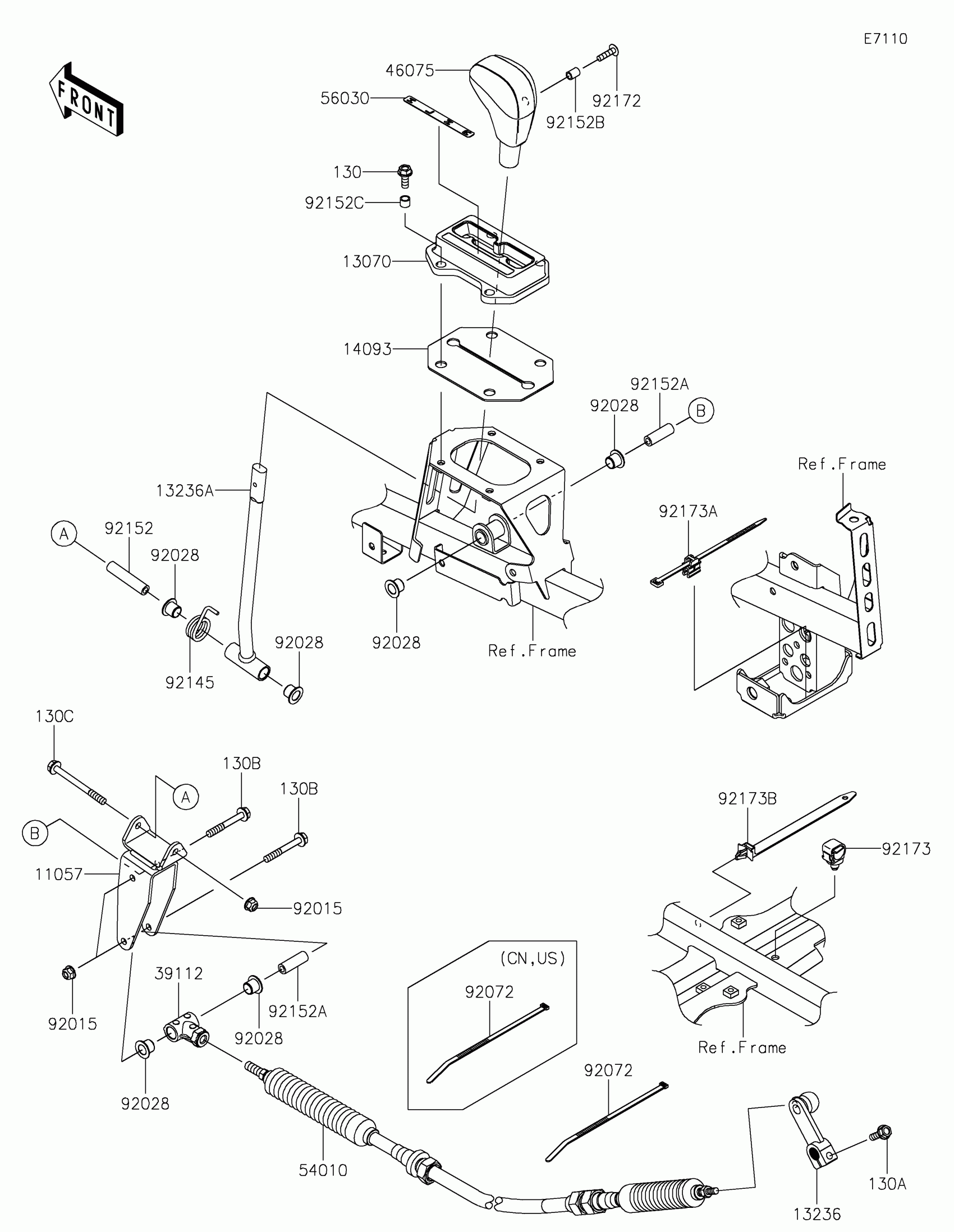

Kawasaki TERYX® KRX4™ 1000 LIFTED EDITION Control Diagram

Description

Price

11057

BRACKET,LEVER

11057-7665

$16.52

13070

GUIDE

13070-0894

$9.32

13236

LEVER-COMP,CHANGE LEVER

13236-0708

$45.16

13236A

LEVER-COMP

13236-0817

$44.76

14093

COVER,HEAT GUARD

14093-1245

$2.80

39112

RODEND-TIE

39112-0036

$23.30

46075

GRIP

46075-0569

$22.85

54010

CABLE

54010-0663

$109.72

56030

LABEL,POSITION

56030-1421

$1.81

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92028

BUSHING

92028-1507

$5.25

92072

BAND,L=292.1

92072-3509

Unavailable

92145

SPRING

92145-1839

$5.27

92152

COLLAR,6.0X10X47

92152-1517

$7.43

92152A

COLLAR,6.0X10X30

92152-1518

$6.63

92152B

COLLAR,5.6X8X10.5

92152-1545

$2.67

92152C

COLLAR,6.8X9.2X8.8

92152-2863

$1.72

92172

SCREW,5X20

92172-2081

$0.73

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP,W/EDGE CLIP,DIA.6-45

92173-1827

$2.34

92173B

CLAMP

92173-1980

$2.80

130

BOLT-FLANGED,6X18

130BB0618

$1.81

130A

BOLT-FLANGED,6X20

130CA0620

$1.70

130B

BOLT-FLANGED,6X45

130CA0645

$1.47

130C

BOLT-FLANGED,6X65

130CA0665

$1.77

92072

BAND,L=292.1

92072-3509

Unavailable
