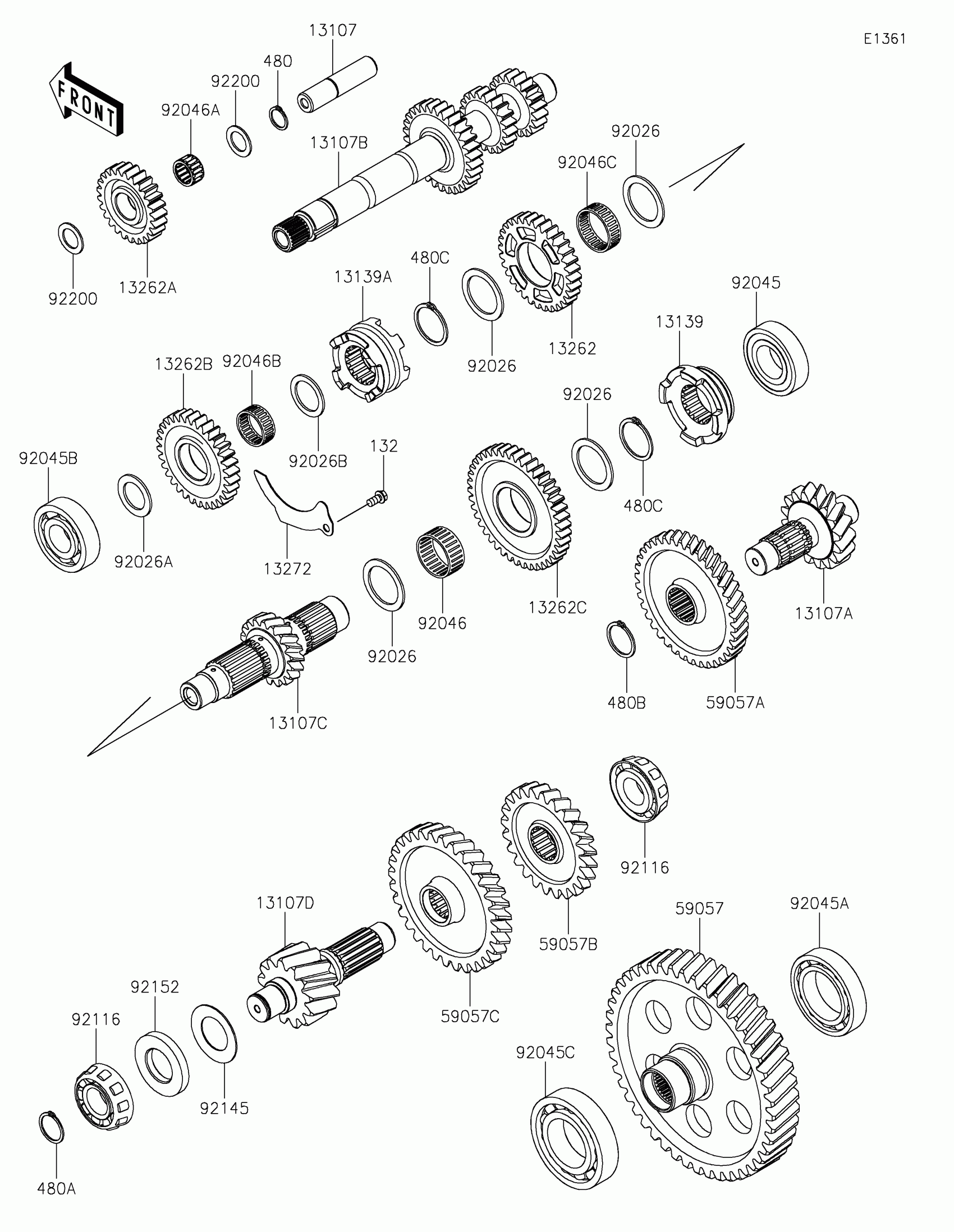

Kawasaki Teryx KRX®4 1000 SE Transmission Diagram

#

Description
Price

13107

SHAFT,REVERSE IDLER

13107-0879

$40.82

13107A

SHAFT,3RD,16T

13107-0900

$196.88

13107B

SHAFT,INPUT

13107-0931

$438.43

13107C

SHAFT,2ND,18T

13107-0932

$235.77

13107D

SHAFT,4TH,13T

13107-0937

$260.99

13139

SHIFTER,LOW,19T

13139-0030

$126.39

13139A

SHIFTER,HIGH&REV,19T

13139-0037

$118.64

13262

GEAR,REV,32T

13262-1364

$110.95

13262A

GEAR,REVERSE IDLER,25T

13262-1567

$67.54

13262B

GEAR,HIGH,32T

13262-1568

$132.86

13262C

GEAR,LOW,42T

13262-1569

$176.10

13272

PLATE,OIL

13272-2570

$1.45

59057

GEAR-HELICAL,46T

59057-0029

$230.71

59057A

GEAR-HELICAL,38T

59057-0031

$132.67

59057B

GEAR-HELICAL,24T

59057-0037

$123.65

59057C

GEAR-HELICAL,32T

59057-0038

$162.70

92026

SPACER,35.2X47X2

92026-0765

$11.23

92026A

SPACER,25.2X38X2

92026-0856

$8.52

92026B

SPACER,28X38X2

92026-1299

Unavailable

92045

BEARING-BALL,6206Z

92045-0902

$16.74

92045A

BEARING-BALL,6009

92045-0903

$32.00

92045B

BEARING-BALL,6305ZUR3

92045-0926

$34.39

92045C

BEARING-BALL,TMB209

92045-0935

$44.80

92046

BEARING-NEEDLE,35X40X17

92046-0611

$17.11

92046A

BEARING-NEEDLE

92046-0634

$12.93

92046B

BEARING-NEEDLE

92046-0635

$12.14

92046C

BEARING-NEEDLE

92046-0636

$17.24

92116

BEARING-ROLLER,HC30305JRLFT

92116-0012

$22.81

92145

SPRING

92145-1837

$7.22

92152

COLLAR

92152-2526

$16.74

92200

WASHER,18.2X28X1.5

92200-0716

$3.02

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

480

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

480A

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480B

CIRCLIP

480J2900

$6.22

480C

CIRCLIP

480J3500

$2.75
