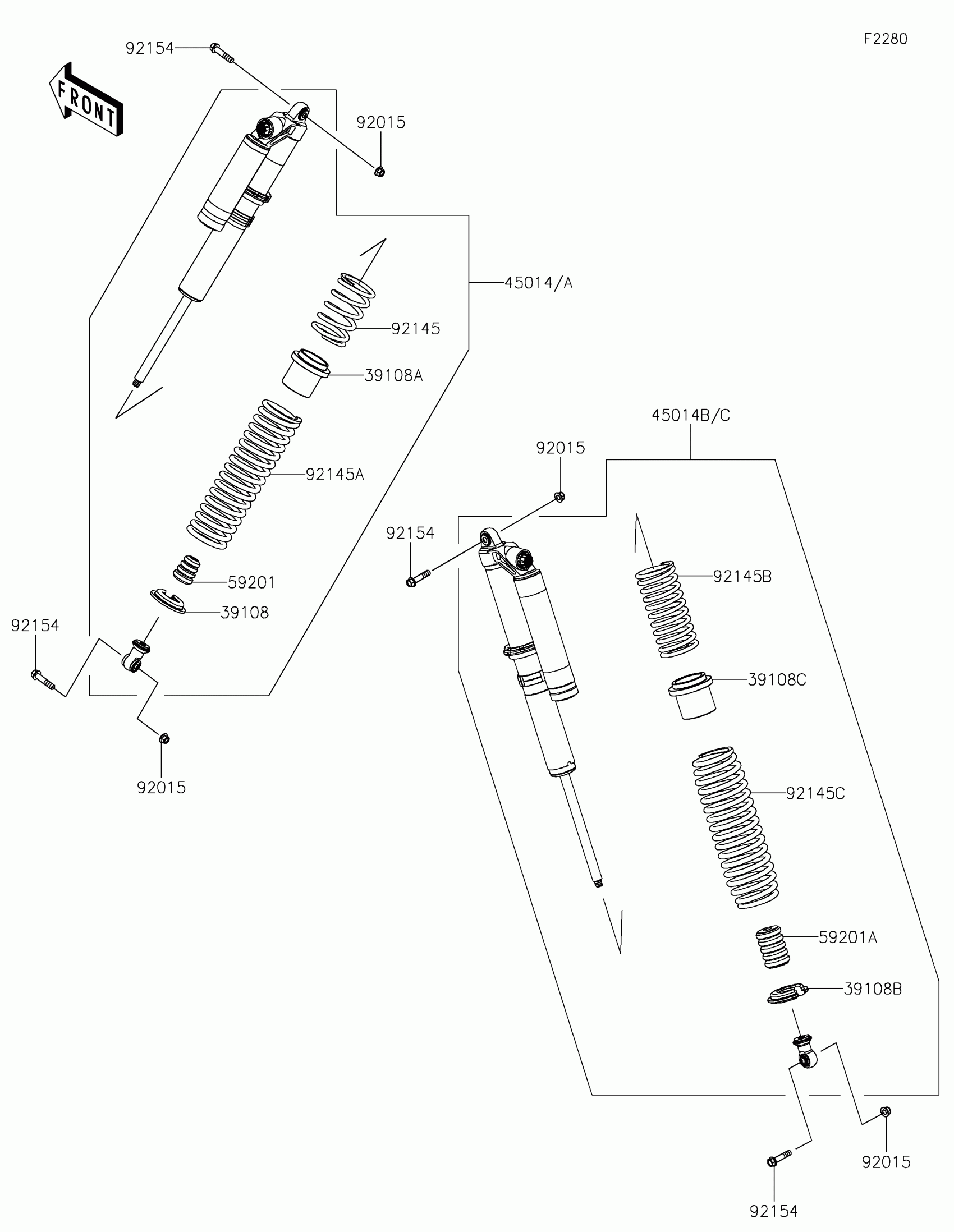

Kawasaki Teryx KRX®4 1000 SE Shock Absorber(s) Diagram

Description

Price

39108

RETAINER-SPRING

39108-0015

$48.47

39108A

RETAINER-SPRING

39108-0016

$49.87

39108B

RETAINER-SPRING

39108-0017

$48.47

39108C

RETAINER-SPRING

39108-0018

$49.87

45014

SHOCKABSORBER,FR,F.SILVER

45014-0797-42P

$1,608.53

45014A

SHOCKABSORBER,FR,L.GREEN

45014-0797-66G

$1,608.53

45014B

SHOCKABSORBER,RR,F.SILVER

45014-0798-42P

$1,824.53

45014C

SHOCKABSORBER,RR,L.GREEN

45014-0798-66G

$1,824.53

59201

BUMPER

59201-0004

$60.69

59201A

BUMPER

59201-0005

$60.69

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92145

SPRING,TENDER,SILVER

92145-2290-42P

$49.41

92145A

SPRING,MAIN,SILVER

92145-2291-42P

$179.24

92145B

SPRING,TENDER,SILVER

92145-2292-42P

$49.41

92145C

SPRING,MAIN,SILVER

92145-2293-42P

$173.46

92154

BOLT,FLANGED,12X55

92154-0289

$9.89
