Seat(Front)

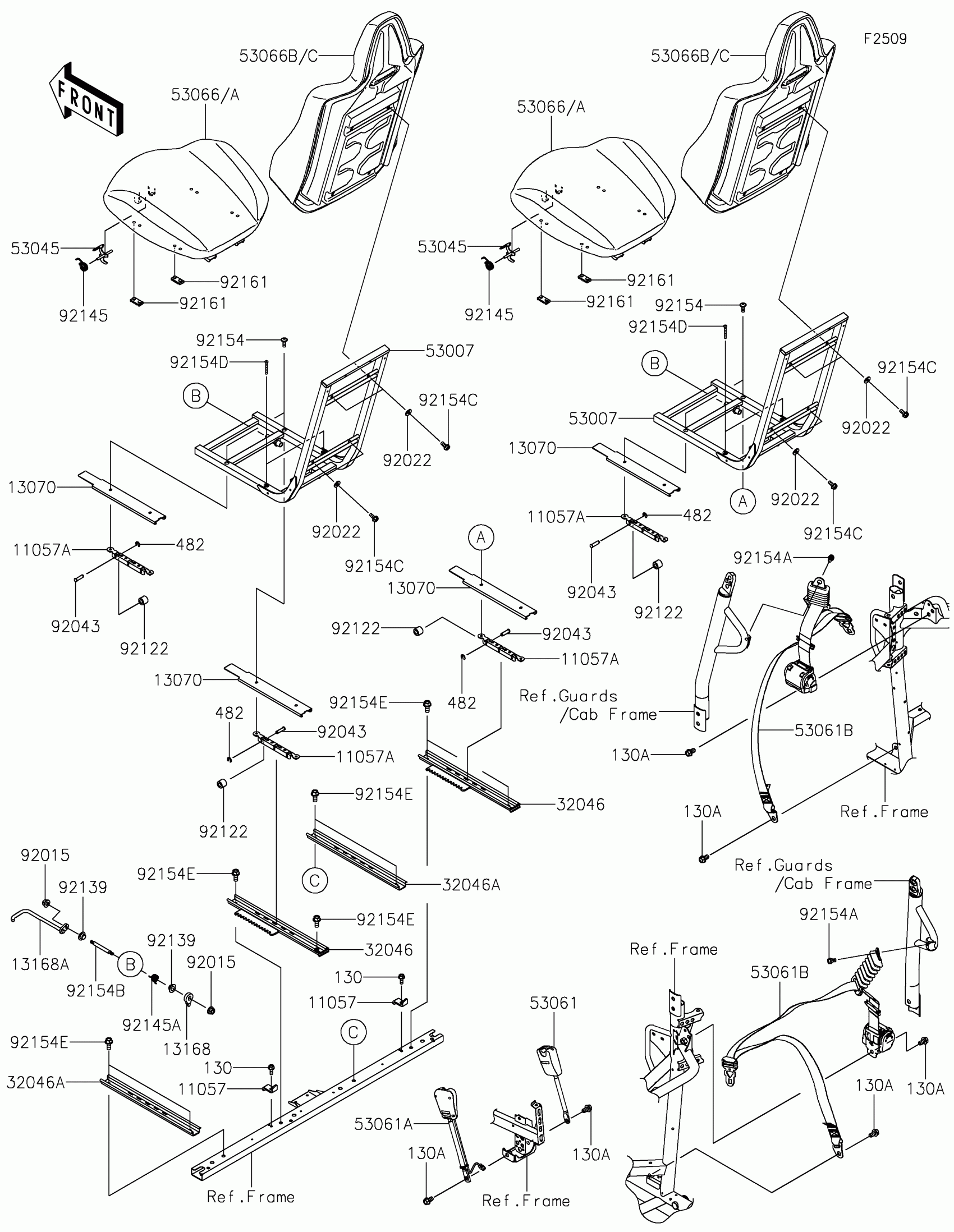

Kawasaki Teryx KRX®4 1000 SE Seat(Front) Diagram
#
Description
Price
11057
BRACKET
11057-2767
$1.36
11057A
BRACKET
11057-2788
$4.48
13070
GUIDE
13070-0998
$6.65
13168
LEVER,STOP
13168-0883
$14.25
13168A
LEVER,SEAT ADJUST
13168-0884
$11.22
32046
BRACKET-SEAT,RAIL,RH
32046-0462
$42.47
32046A
BRACKET-SEAT,RAIL,LH
32046-0463
$17.37
53007
FRAME-SEAT
53007-0450
$81.85
53045
HOOK-ASSY,SEAT BOTTOM
53045-0039
$25.26
53061
BELT-SEAT,BUCKLE,PASSENGER
53061-0358
$31.80
53061A
BELT-SEAT,BUCKLE,DRIVER
53061-0365
$55.82
53061B
BELT-SEAT,RETRACTOR
53061-0368
$156.61
53066
SEAT-ASSY,BOTTOM,BLACK+BLK
53066-0825-71Q
$360.08
53066A
SEAT-ASSY,BOTTOM,BLACK+GRN
53066-0825-71R
$373.84
53066B
SEAT-ASSY,BACK,GREEN+BLK+SIL
53066-0827-61Z
$520.99
53066C
SEAT-ASSY,BACK,SIL+BLK+SIL
53066-0827-64L
$501.57
92015
NUT,8MM
92015-1432
$6.57
92022
WASHER,6.5X16X2
92022-1565
$3.92
92043
PIN
92043-0991
$3.04
92122
ROLLER
92122-0564
$1.68
92139
BUSHING
92139-0230
$4.61
92145
SPRING,SEAT LATCH
92145-0022
$7.15
92145A
SPRING,ADJUST LEVER
92145-1858
$8.44
92154
BOLT,SOCKET,6X18
92154-0139
$1.74
92154A
BOLT,FLANGED,10X16
92154-2089
$7.35
92154B
BOLT,ADJUST LEVER
92154-3923
$37.01
92154C
BOLT,FLANGED,6X14
92154-3968
$2.00
92154D
BOLT,SOCKET,6X45
92154-4135
$2.58
92154E
BOLT,FLANGED,10X18
92154-7022
$2.73
92161
DAMPER,SEAT
92161-1489
$3.35
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,12X22
130BA1222
$3.04
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
