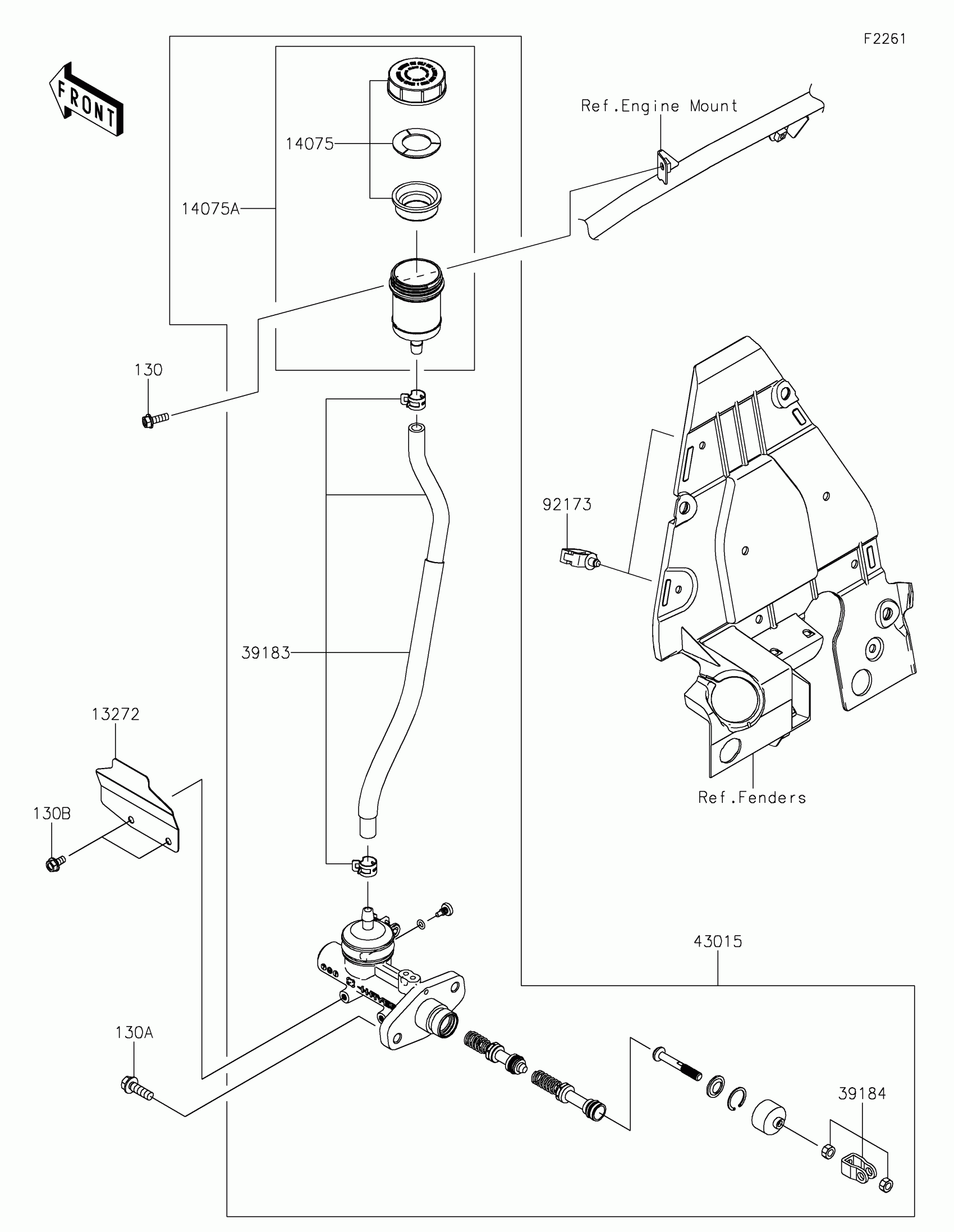

Kawasaki Teryx KRX®4 1000 SE Master Cylinder Diagram

#

Description
Price

13272

PLATE,MASTER CYLINDER

13272-2632

$3.17

14075

CAP-ASSY

14075-0038

$41.90

14075A

CAP-ASSY,RESERVOIR

14075-0712

$76.78

39183

BAND-ASSY,RESERVOIR HOSE

39183-0008

$32.53

39184

BRACKET-ASSY

39184-0031

$21.27

43015

CYLINDER-ASSY-MASTER

43015-0774

$209.14

92173

CLAMP

92173-0861

$2.11

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X25

130BA0825

$2.01

130B

BOLT-FLANGED,6X12

130CA0612

$3.02
