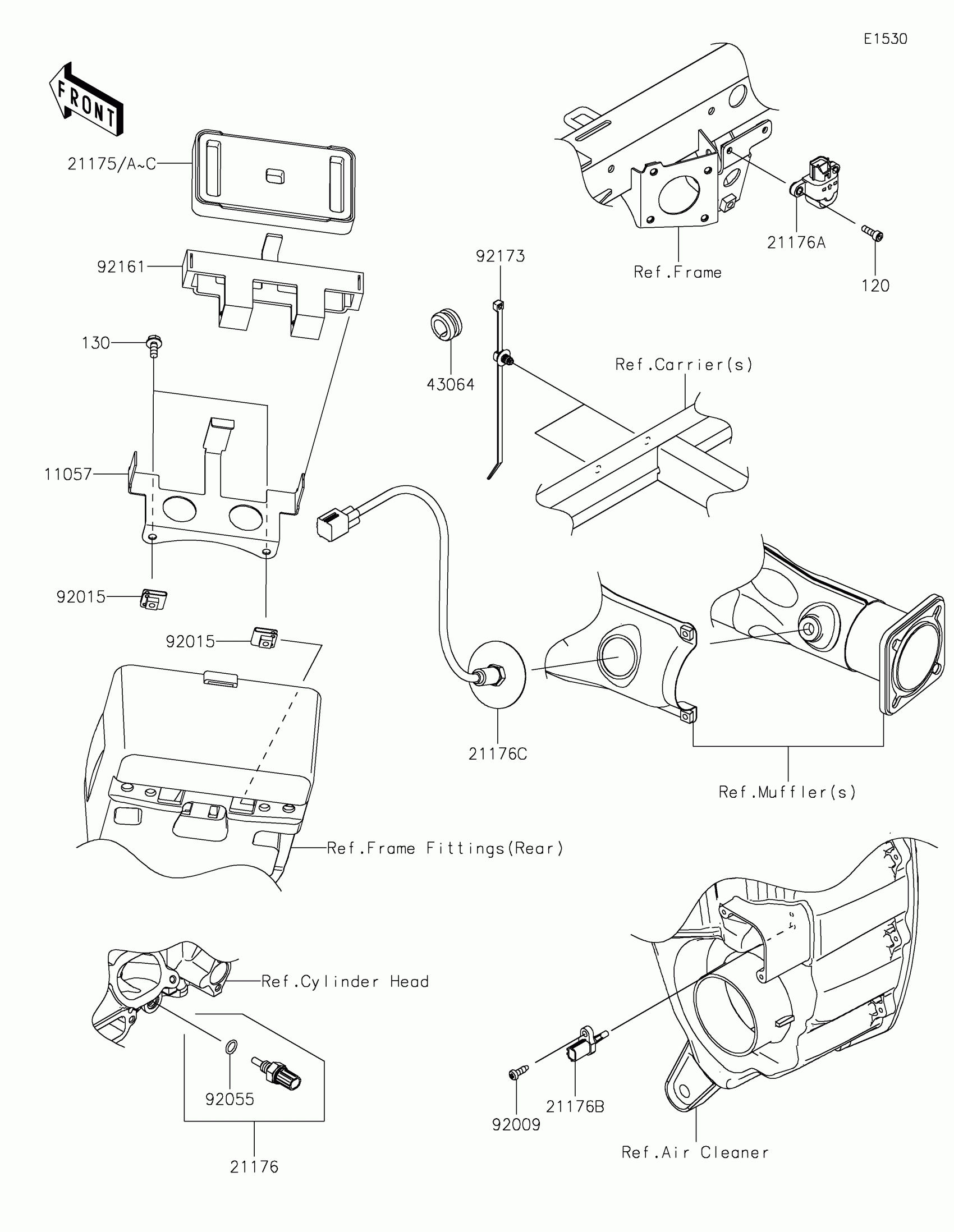

Kawasaki Teryx KRX®4 1000 SE Fuel Injection Diagram

Description

Price

11057

BRACKET,ECU

11057-2230

$3.54

21175B

CONTROL UNIT-ELECTRONIC

21175-1957

$863.49

21175C

CONTROL UNIT-ELECTRONIC

21175-1958

$863.49

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,OXYGEN

21176-1147

$301.02

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92055

RING-O,9.5X1.9

92055-0016

$8.89

92161

DAMPER,ECU

92161-2183

$4.48

92173

CLAMP

92173-2188

$0.82

120

BOLT-SOCKET,5X16

120CA0516

$2.15

130

BOLT-FLANGED,6X14

130CA0614

$4.12
