Fuel Evaporative System(CA)

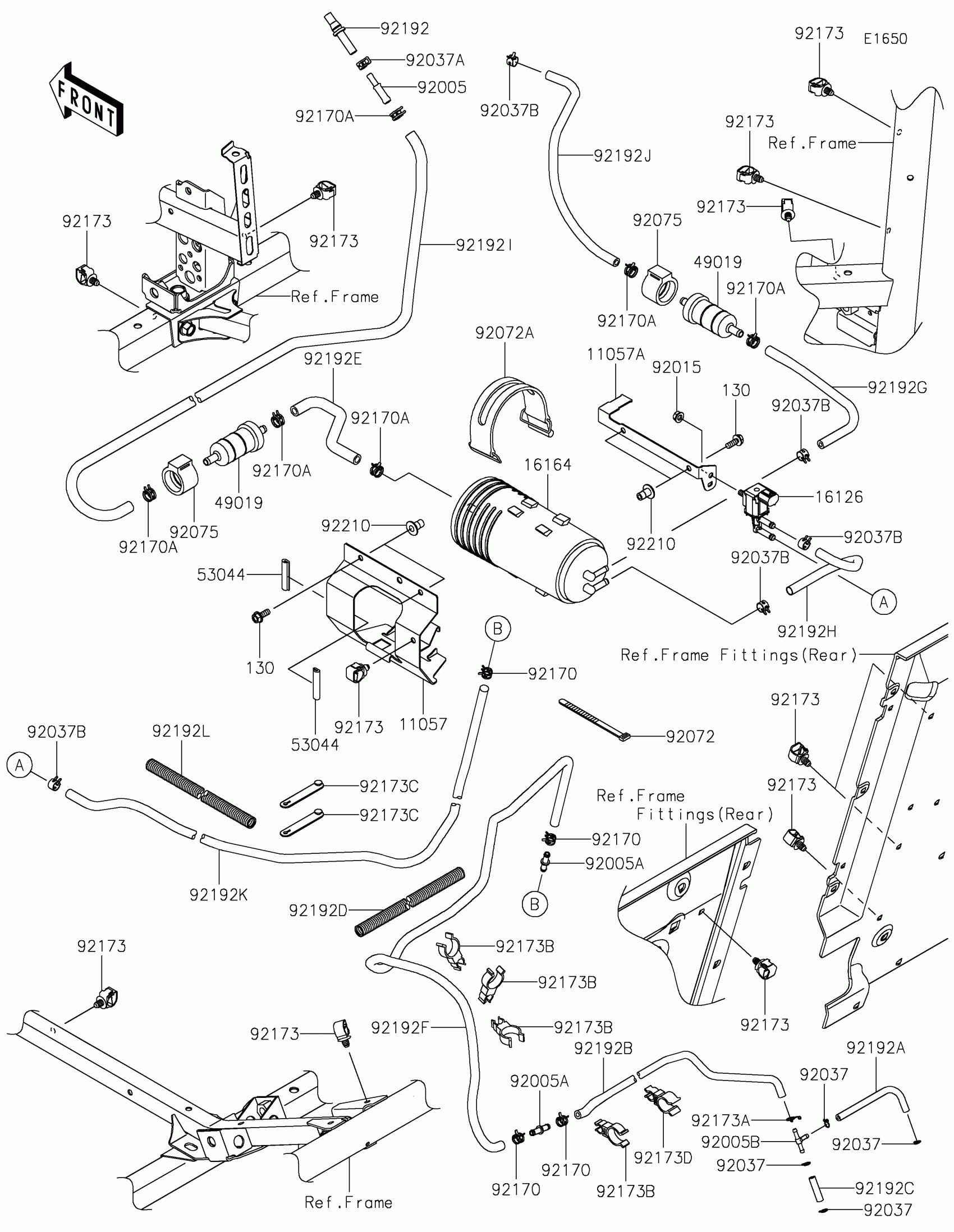

Kawasaki Teryx KRX®4 1000 SE Fuel Evaporative System(CA) Diagram
#
11057
BRACKET,CANISTER HOLDER
11057-7673
$28.03
11057A
BRACKET,PURGE VALVE
11057-7674
$10.26
16126
VALVE,SOLENOID
16126-0705
$106.99
16164
CANISTER
16164-0016
$205.69
49019
FILTER-FUEL
49019-0032
$22.97
53044
TRIM,L=40
53044-1320
$2.34
92005
FITTING
92005-0720
$3.62
92005A
FITTING
92005-0721
$9.09
92005B
FITTING
92005-1380
$16.65
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92037
CLAMP,TUBE
92037-1124
$6.11
92037A
CLAMP,TUBE
92037-1461
$3.88
92037B
CLAMP
92037-2113
$1.03
92072
BAND,L=149
92072-031
$5.00
92072A
BAND,L=168
92072-1306
$13.75
92075
DAMPER,FUEL FILTER
92075-1853
$12.35
92170
CLAMP
92170-1493
$5.00
92170A
CLAMP
92170-2082
$0.84
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP
92173-1568
$4.96
92173B
CLAMP,CLIP
92173-2000
$4.85
92173C
CLAMP
92173-2199
$1.48
92173D
CLAMP
92173-2287
$4.85
92192
TUBE,FRAME PIPE-CHECK VALVE
92192-0068
$10.90
92192A
TUBE,3.5X7.5X125
92192-1497
$24.31
92192B
TUBE,L=450
92192-1612
$54.33
92192C
TUBE,THROTTLE BODY
92192-1992
$7.72
92192D
TUBE,CONVOLUTED,10.7X14.1X170
92192-2293
$11.32
92192E
TUBE,FILTER-CANISTER
92192-2571
$7.41
92192F
TUBE,PURGE VALVE-THROTTLE BODY
92192-2572
$90.56
92192G
TUBE,FILTER-CANISTER
92192-2573
$32.35
92192H
TUBE,CANISTER-PURGE VALVE
92192-2574
$23.21
92192I
TUBE,AIR BREATHER
92192-2575
$19.88
92192J
TUBE,CHECK VALVE-FILTER
92192-2576
$41.45
92192K
TUBE,PURGE VALVE-THROTTLE BODY
92192-2592
$86.09
92192L
TUBE,CONVOLUTED,10.7X14.1X530
92192-2593
$5.98
92210
NUT,LARGE FLANGE,6MM,L=16.5
92210-1623
$2.95
130
BOLT-FLANGED,6X16
130BA0616
$1.20
