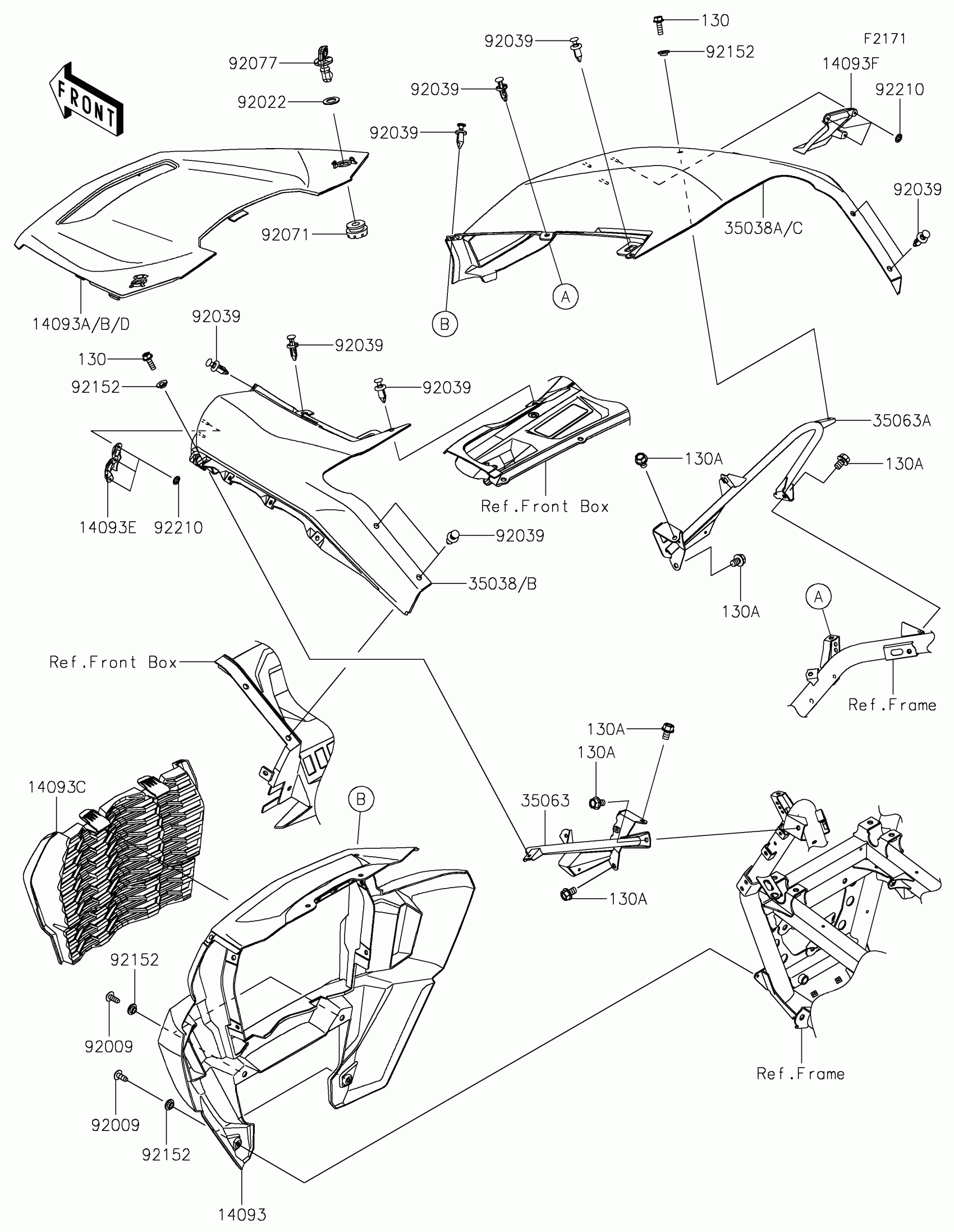

Kawasaki Teryx KRX®4 1000 SE Front Fender(s) Diagram

Description

Price

14093

COVER,FR

14093-0804

$191.64

14093A

COVER,HOOD,L.GREEN

14093-0805-290

$363.63

14093C

COVER,FR GRILL

14093-0810

$92.83

14093D

COVER,HOOD,M.C.GRAY

14093-0921-57B

$380.99

14093E

COVER,LH

14093-0958

$3.34

14093F

COVER,RH

14093-0959

$3.34

35038

FENDER-FRONT,LH,M.O.BLACK

35038-0014-66E

$340.18

35038A

FENDER-FRONT,RH,M.O.BLACK

35038-0015-66E

$340.18

35038B

FENDER-FRONT,LH,P.M.S.GREEN

35038-0017-72R

$356.43

35038C

FENDER-FRONT,RH,P.M.S.GREEN

35038-0018-72R

$356.43

35063

STAY,LH

35063-1535

$89.83

35063A

STAY,RH

35063-1536

$89.83

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92022

WASHER,12.5X22X1.2

92022-072

$3.12

92039

RIVET

92039-0776

$0.80

92071

GROMMET

92071-0746

$1.07

92077

KNOB

92077-0033

$2.44

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.75

92210

NUT

92210-1796

$0.44

130

BOLT-FLANGED,6X18

130BA0618

$1.36

130A

BOLT-FLANGED,8X12

130BA0812

$0.92
